Instrument Panel And Floor Console Harness - C Connectors
Instrument Panel And Floor Console Harness - C Connectors

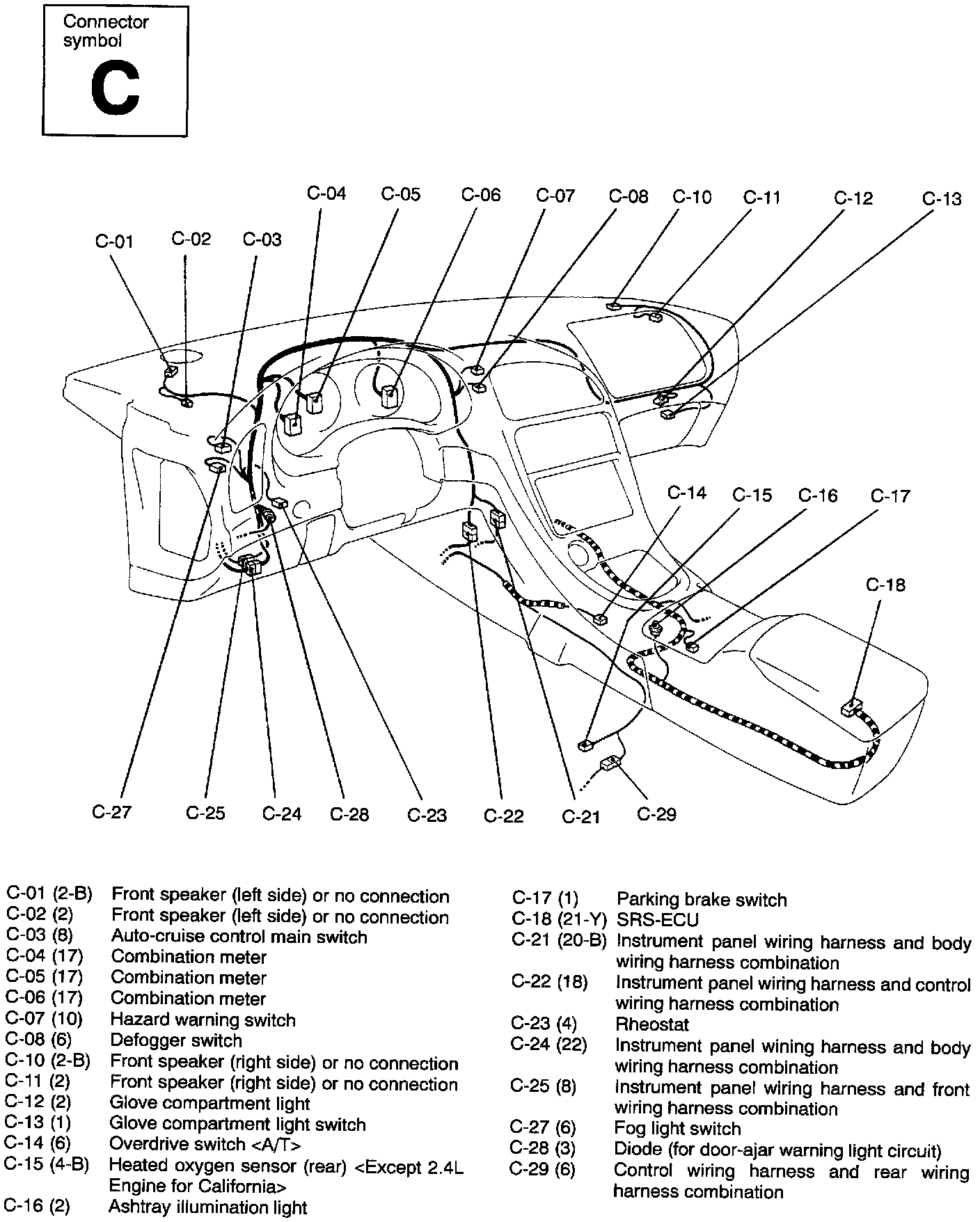

Instrument Panel - C Connector (01 (2-B) Thru 29 (6)):
