Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1999
>>
Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
Transmission Control Systems: Locations

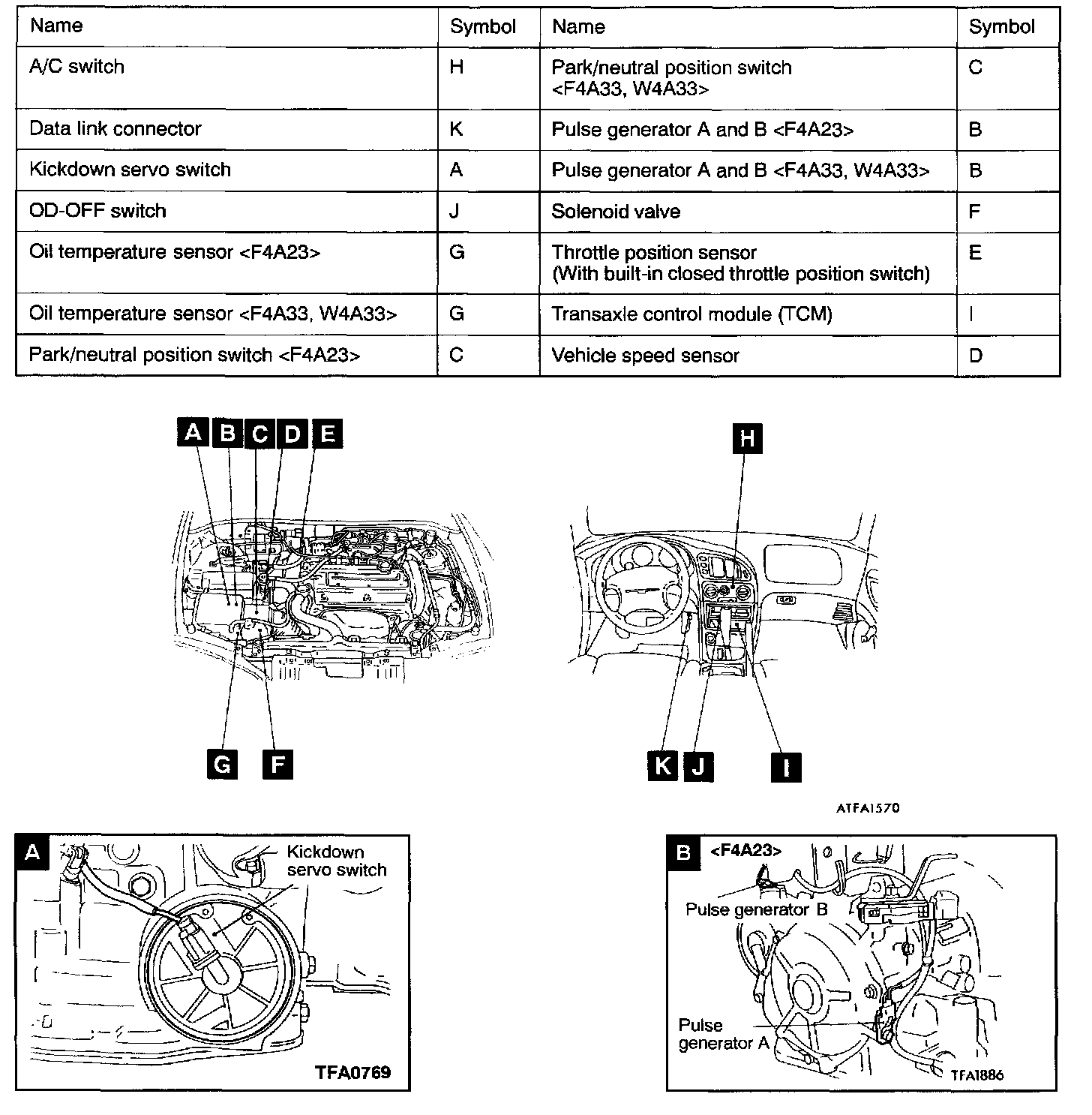

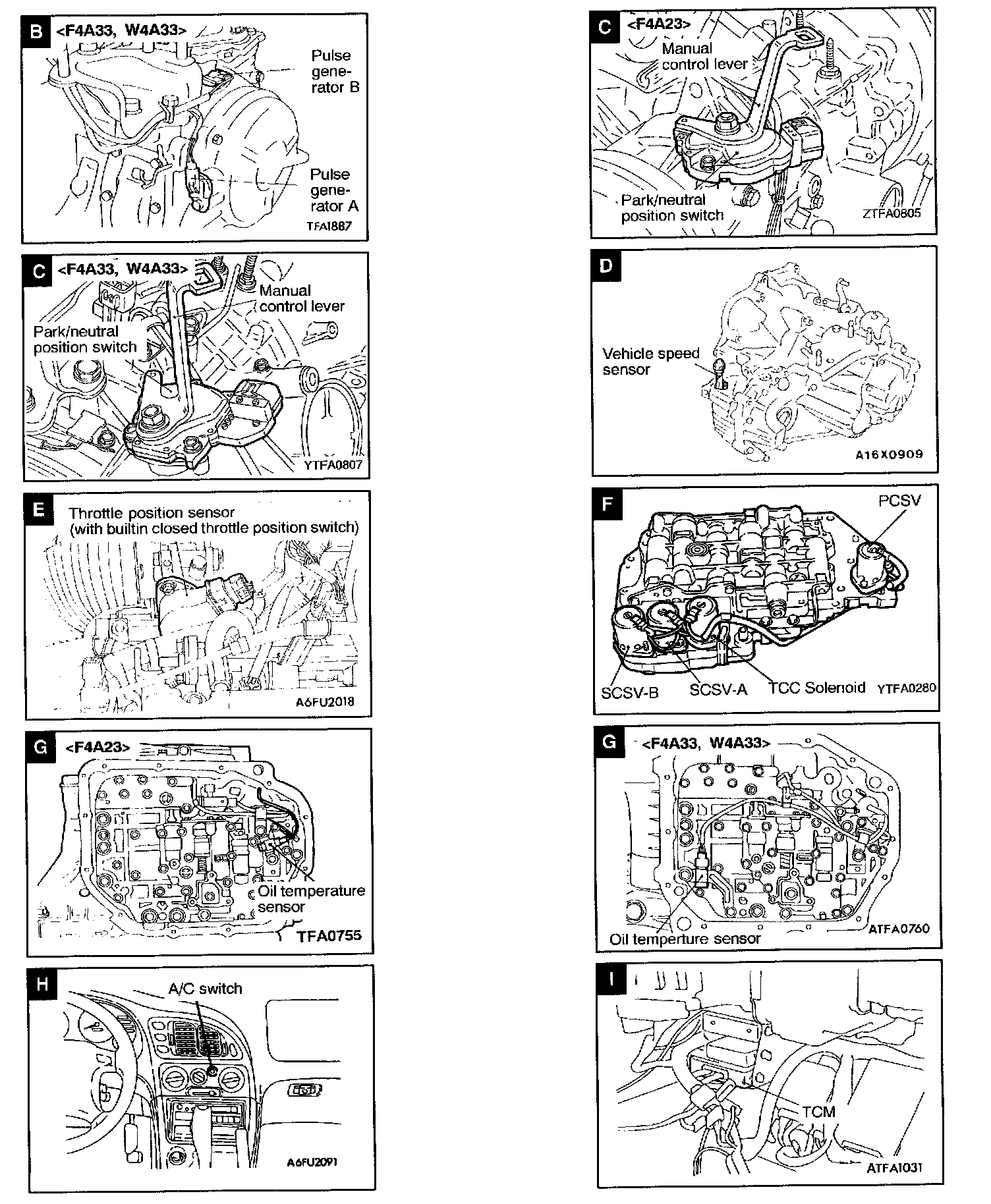

ELC 4-SPEED AUTOMATIC TRANSAXLE CONTROL COMPONENT LAYOUT
