B Connectors - Engine and Transaxle Harness

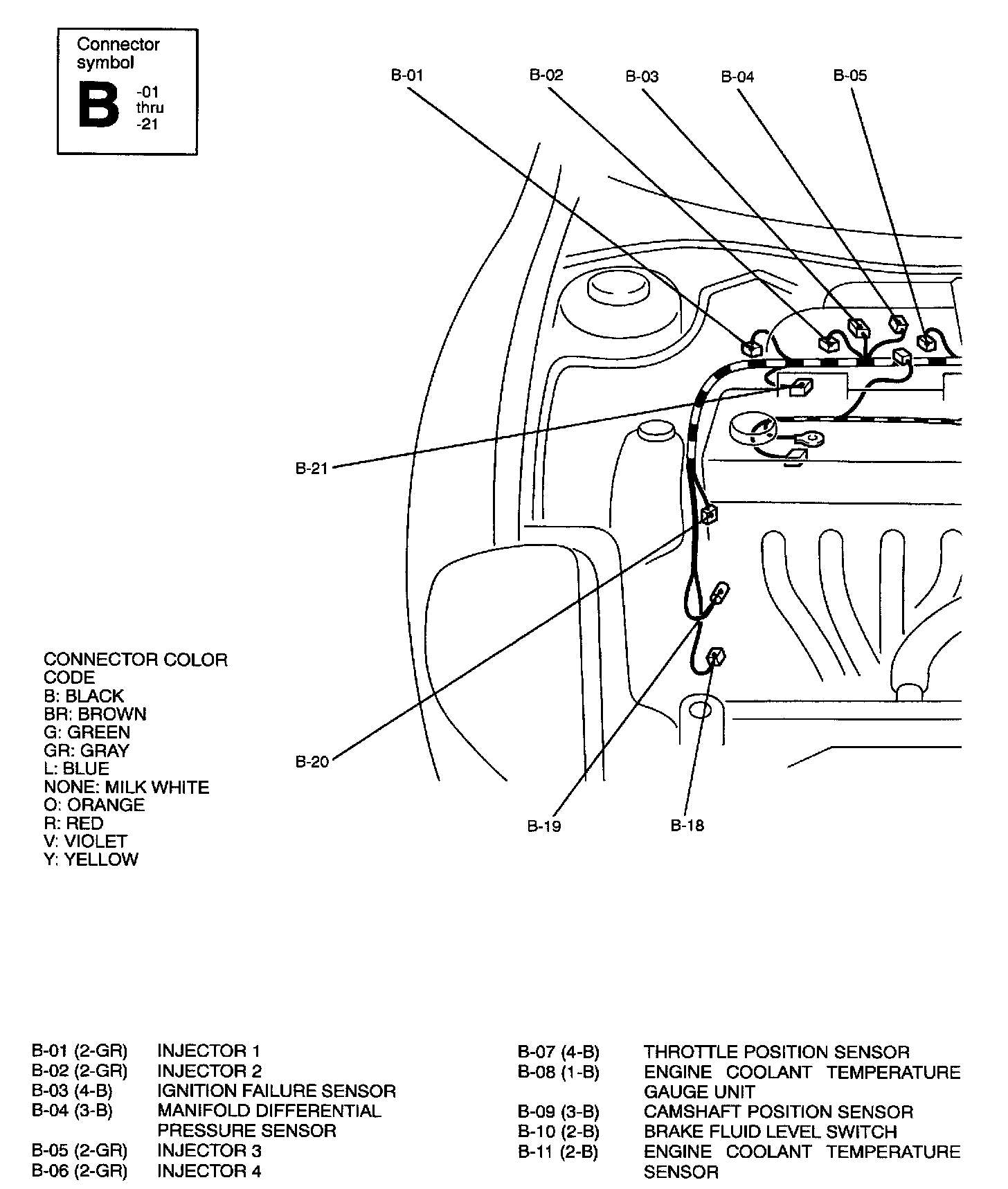

Engine And Transaxle - B Connector (01 (2-GR) Thru 11 (2-B)):

Engine And Transaxle - B Connector (12 (4-B) Thru 21 (3-GR)):

Engine And Transaxle - B Connector (31 (2-BR) Thru 40 (10-GR)):

Engine And Transaxle - B Connector (41 (10-B) Thru 46 (1)):
