Home >> Mitsubishi >> 2000 >> Eclipse GS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust Manifold

Exhaust Manifold

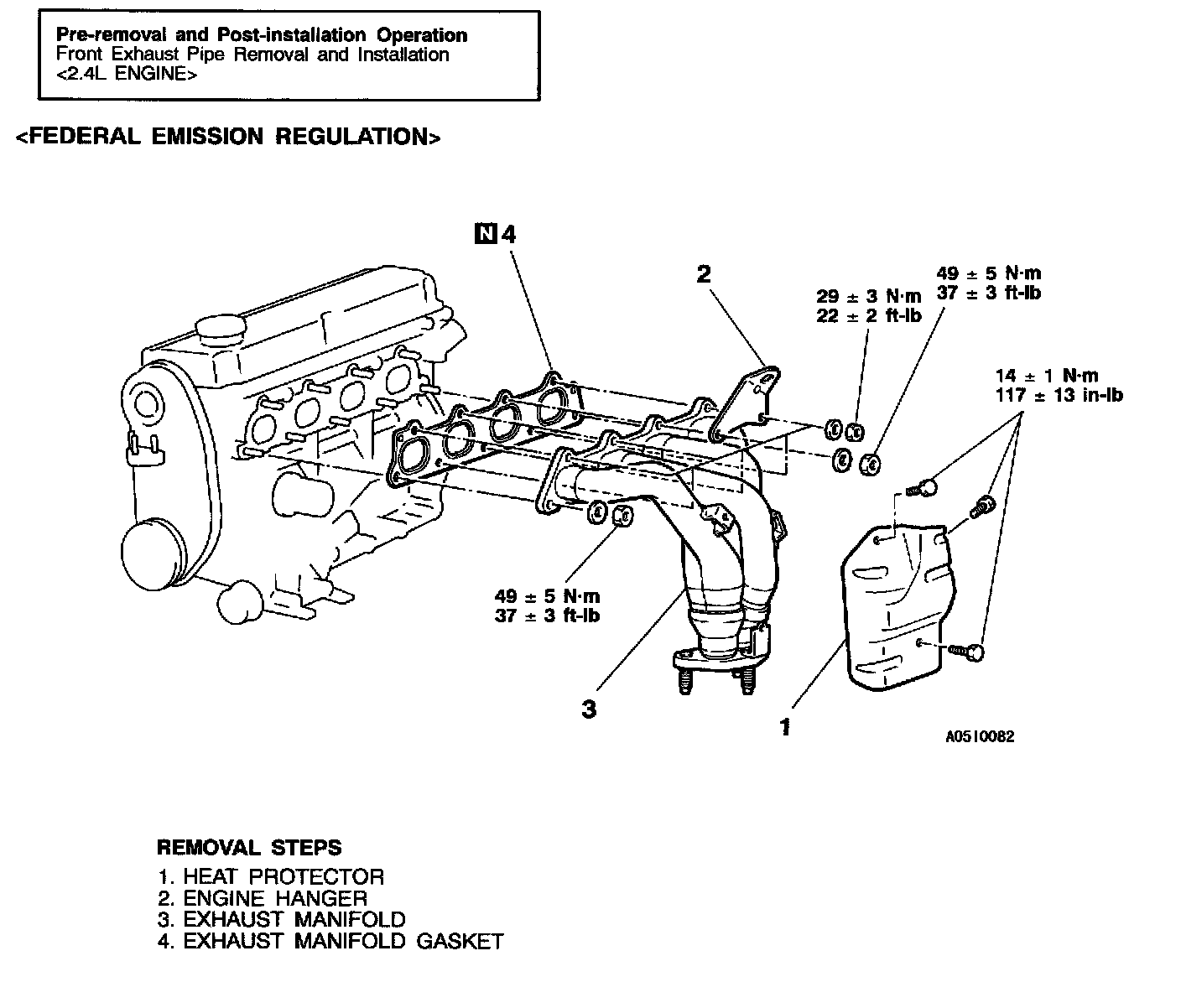

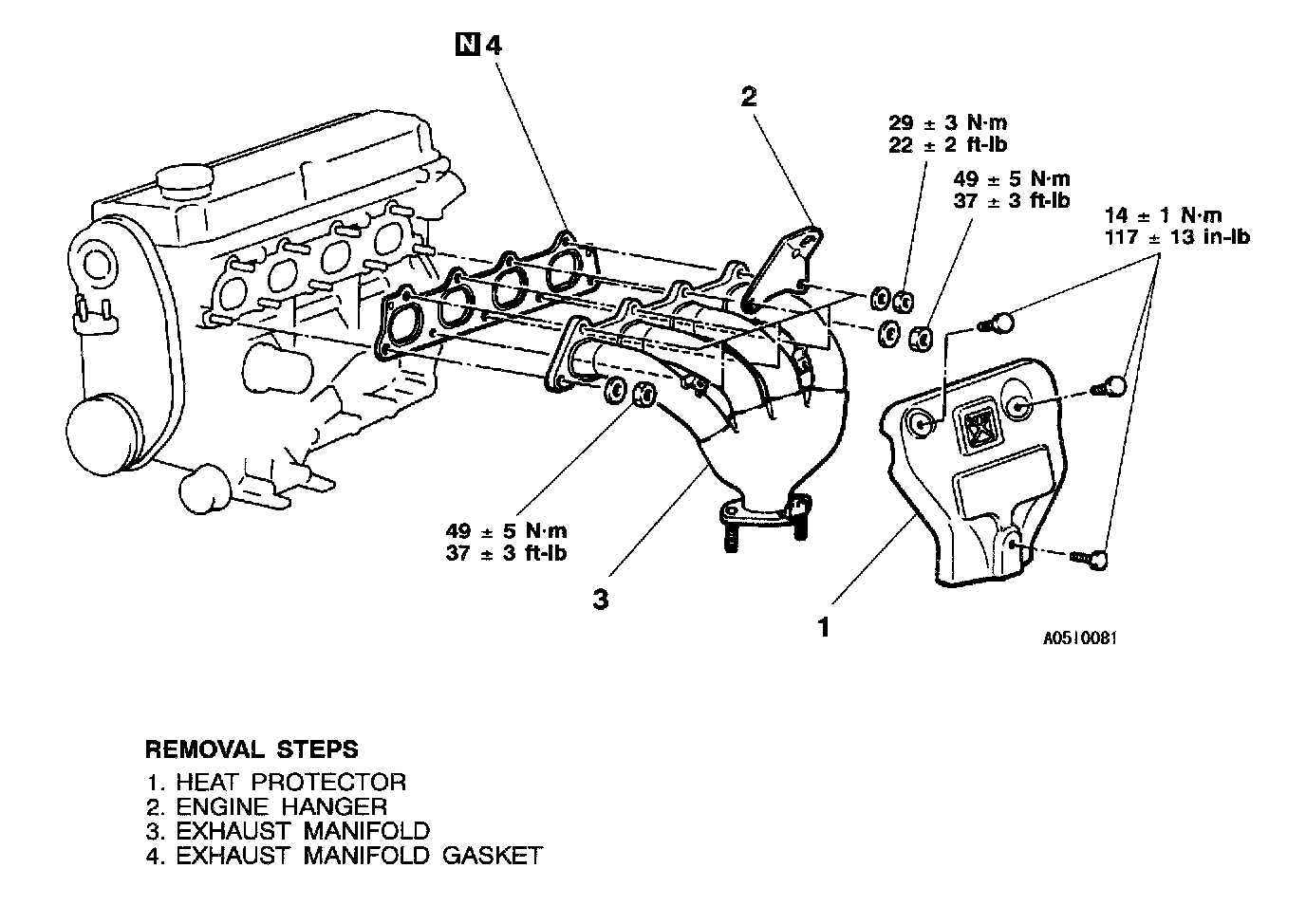

EXHAUST MANIFOLD REPLACEMENT W/ RELATED COMPONENTS
