Expansion Valve: Service and Repair

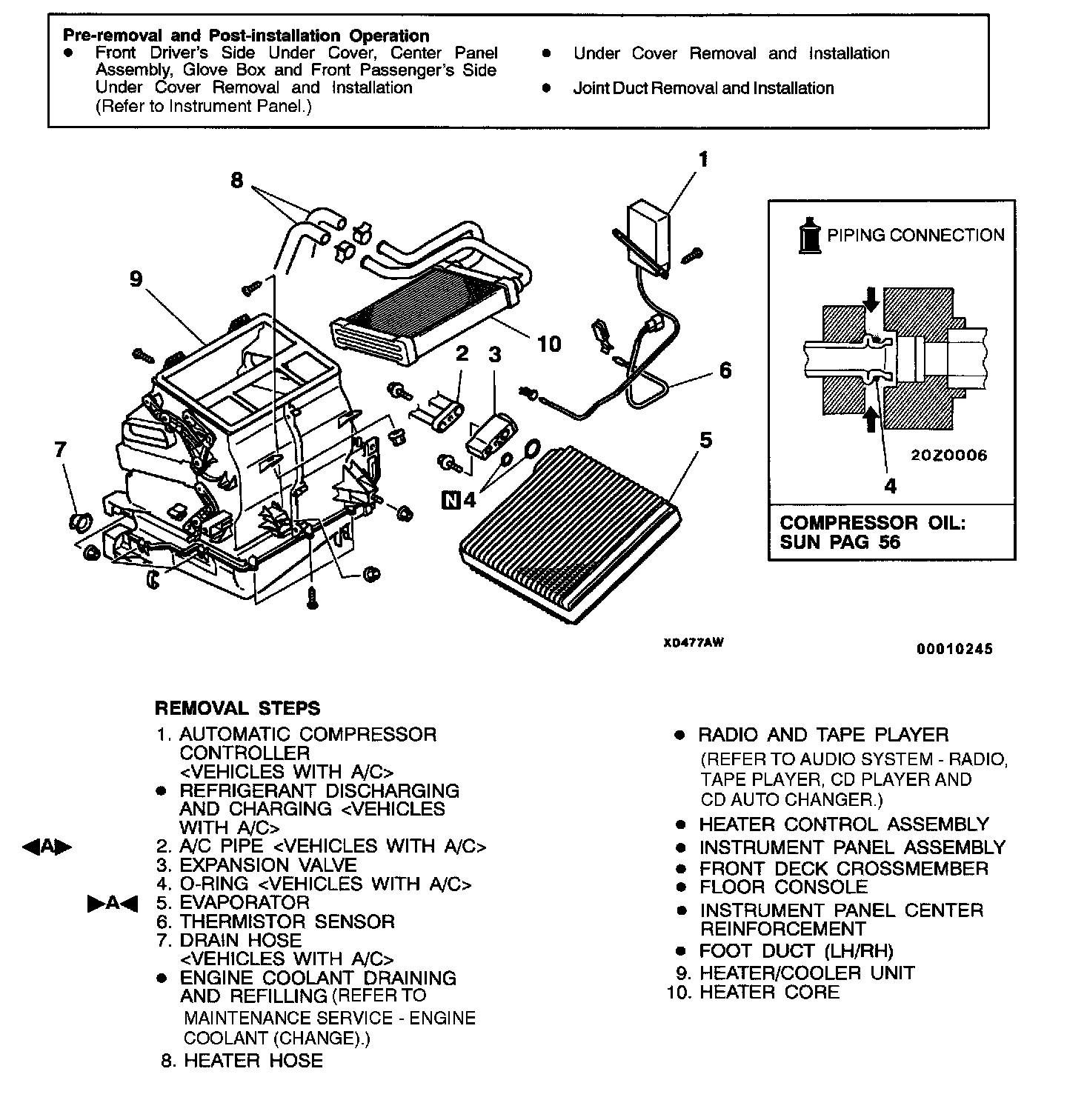

HEATER/COOLER UNIT, HEATER CORE AND EVAPORATOR (including the expansion valve)
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
A/C PIPE REMOVAL
CAUTION: Seal the pipes completely, otherwise the compressor oil and receiver will absorb water vapor easily, possibly damaging the compressor and deteriorating performance.
Plug the disconnected pipe and the evaporator nipple to prevent foreign material from getting into them.
INSTALLATION SERVICE POINT
>A< EVAPORATOR INSTALLATION
When replacing the evaporator, refill with a specified amount of compressor oil and install it.
Compressor oil: SUN PAG 56
Quantity: 60 cu.cm (2.0 fl. oz.)
