Home >> Mitsubishi >> 2000 >> Eclipse GS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

Emission Control Systems: Diagrams

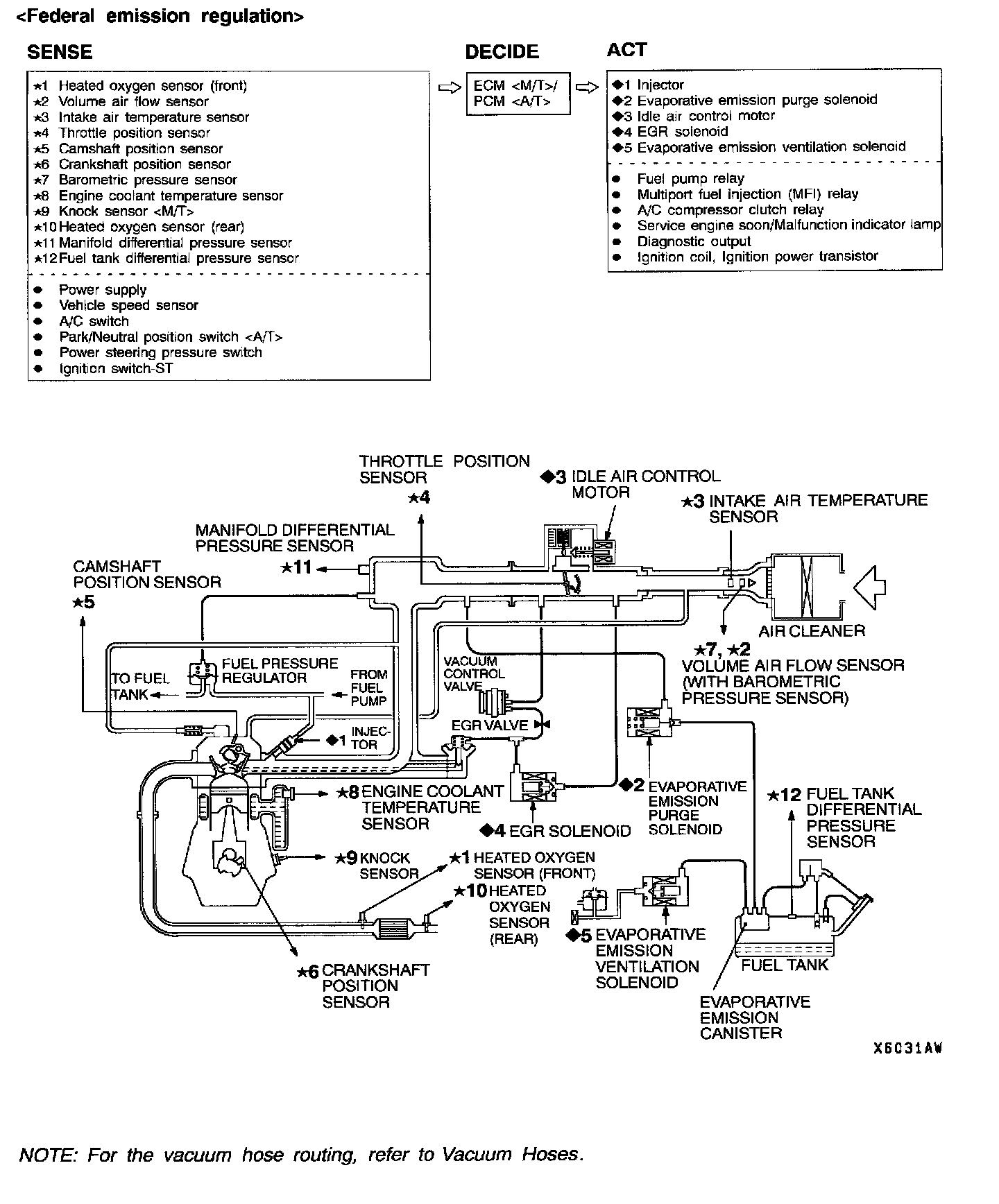

Federal Emission Regulation:

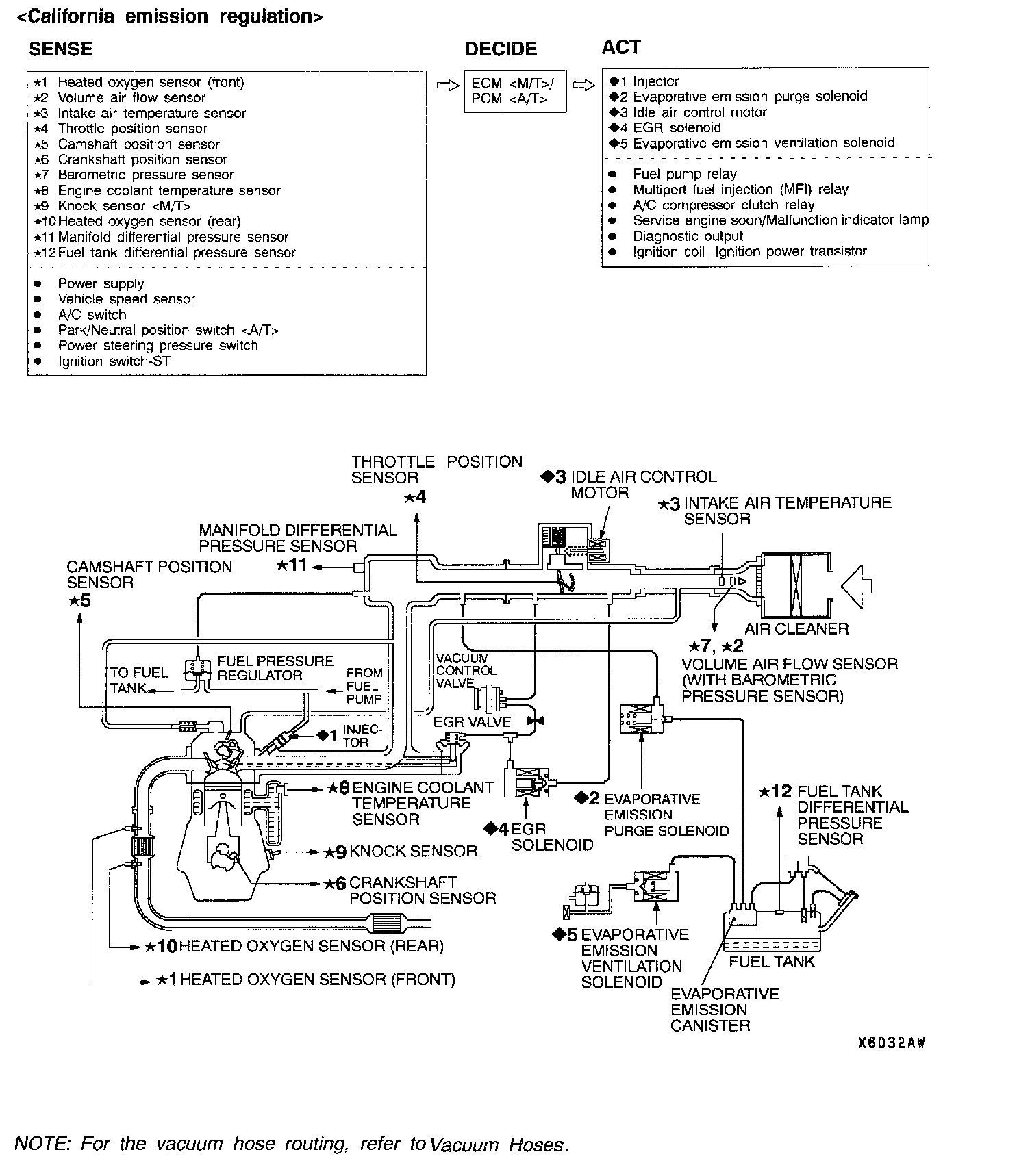

California Emission Regulation:
