Electrical Diagrams

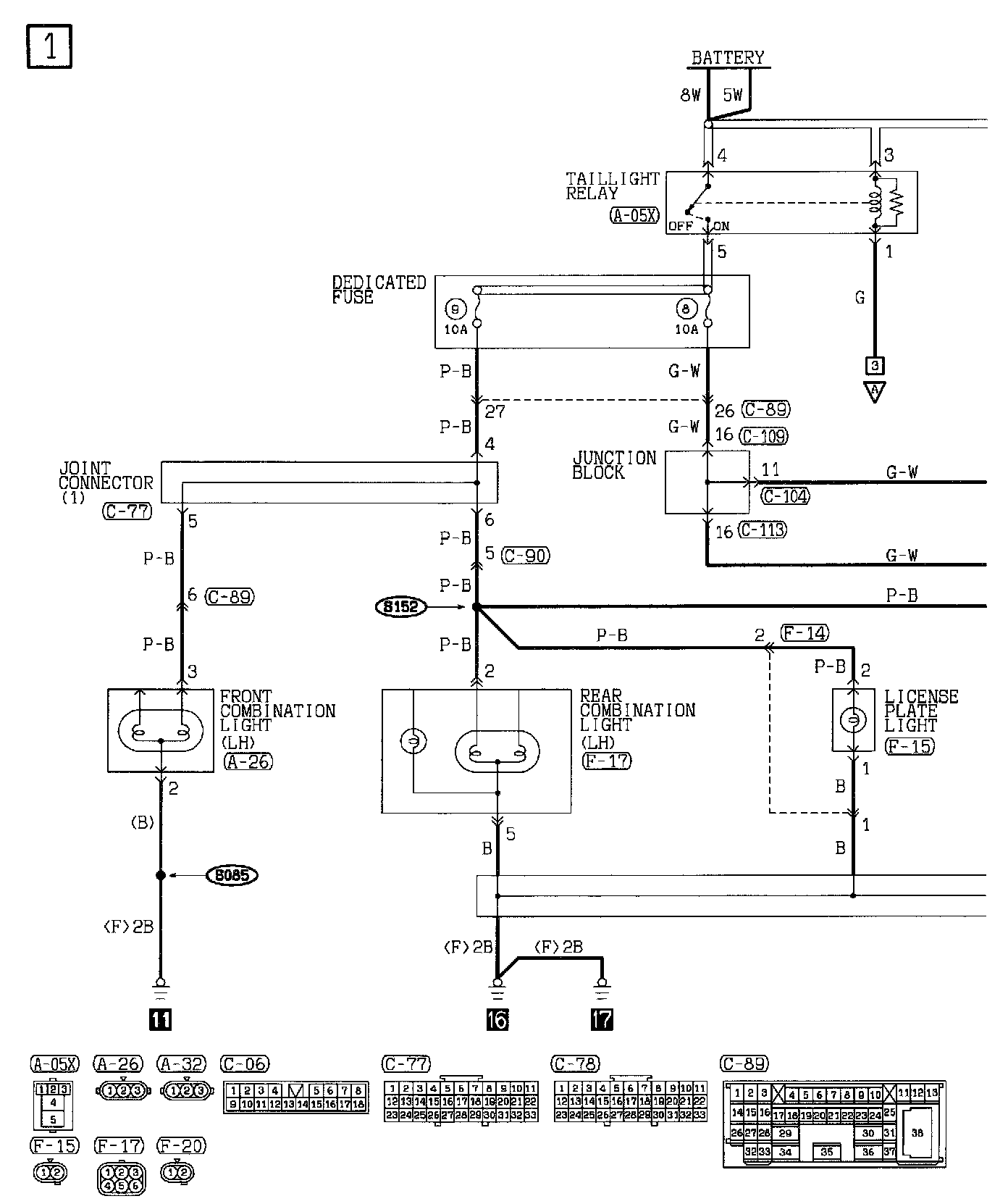

Taillight, Position Light, Rear Side Marker Light and License Plate Light (Part 1 Of 4):

Tail Light Relay
Dedicated Fuse
Junction Block
Joint Connector
Front Combination Light (LH)
Rear Combination Light (LH)
License Plate Light

Taillight, Position Light, Rear Side Marker Light and License Plate Light (Part 2 Of 4):

Dedicated Fuse
Joint Connector
Rear Side Marker Light (LH)
Rear Combination Light (RH)
Front Combination Light (RH)
Joint Ground Point
Joint Tail Light Point

Taillight, Position Light, Rear Side Marker Light and License Plate Light (Part 3 Of 4):

Front ECU
Junction Block
Joint Connector
Column Switch

Taillight, Position Light, Rear Side Marker Light and License Plate Light (Part 4 Of 4):

Joint Connector
Joint Ground Point
