Cruise Control Switch: Testing and Inspection
CLUTCH PEDAL POSITION SWITCH
1.
Disconnect the connector.
2.

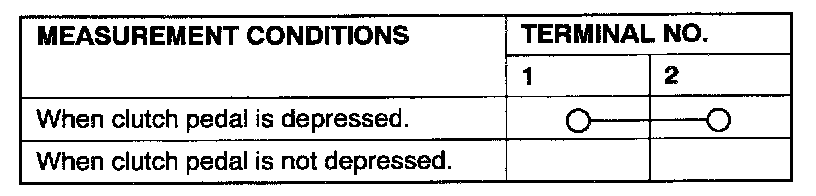

Check for continuity between the terminals of the switch.
