Mirrors: Testing and Inspection

REMOTE CONTROLLED MIRROR ASSEMBLY CHECK

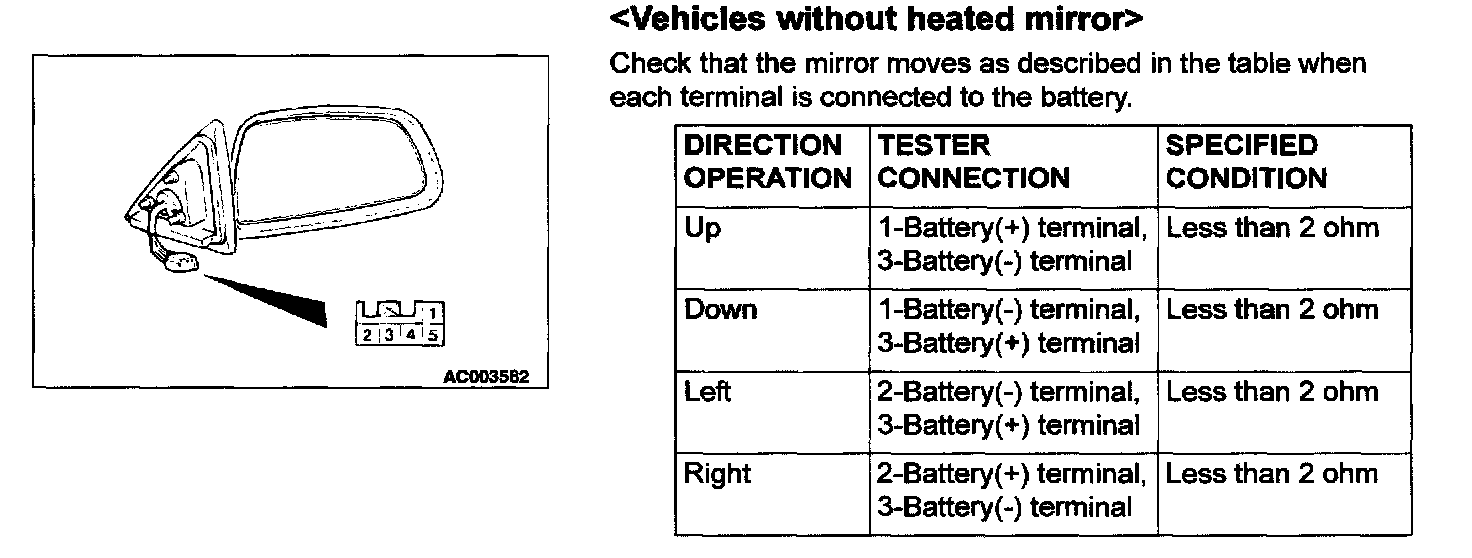

Remote Controlled Mirror Assembly Switch - Vehicles Without Heated Mirror:

[Vehicles without heated mirror]

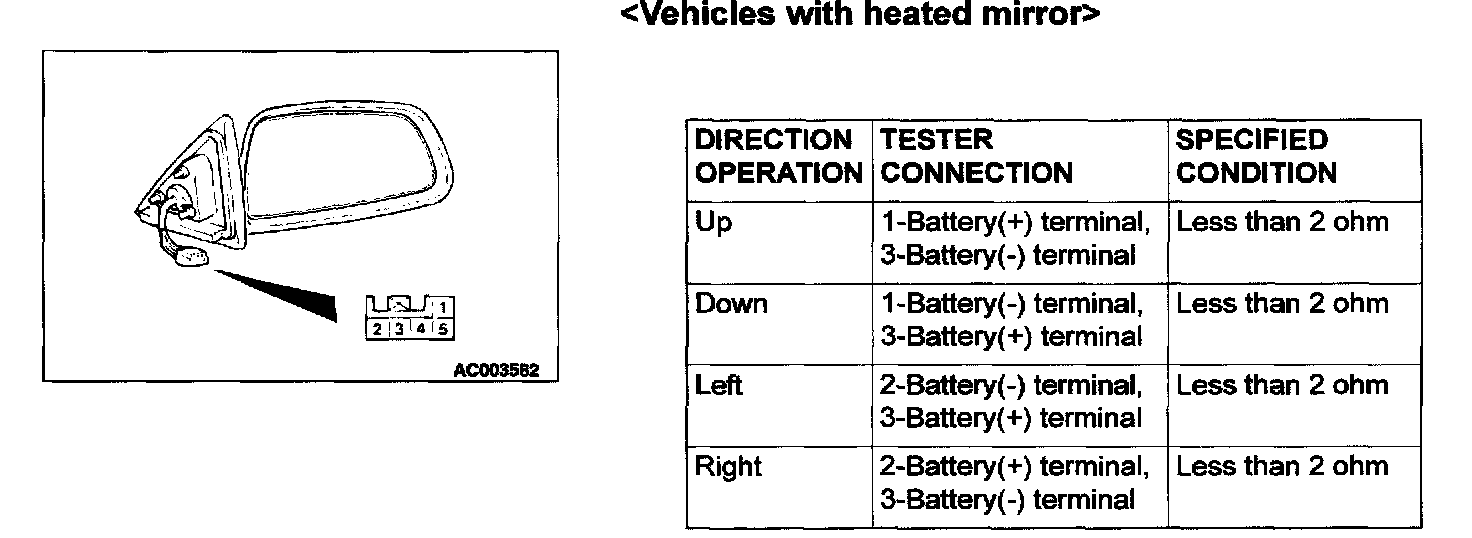

Remote Controlled Mirror Assembly Switch - Vehicles With Heated Mirror:

[Vehicles with heated mirror]
1. Check that the mirror moves as described in the table when each terminal is connected to the battery
2. Check if there is continuity between terminals (4) and (5).
