Sensors

Sensor Location Overall View:

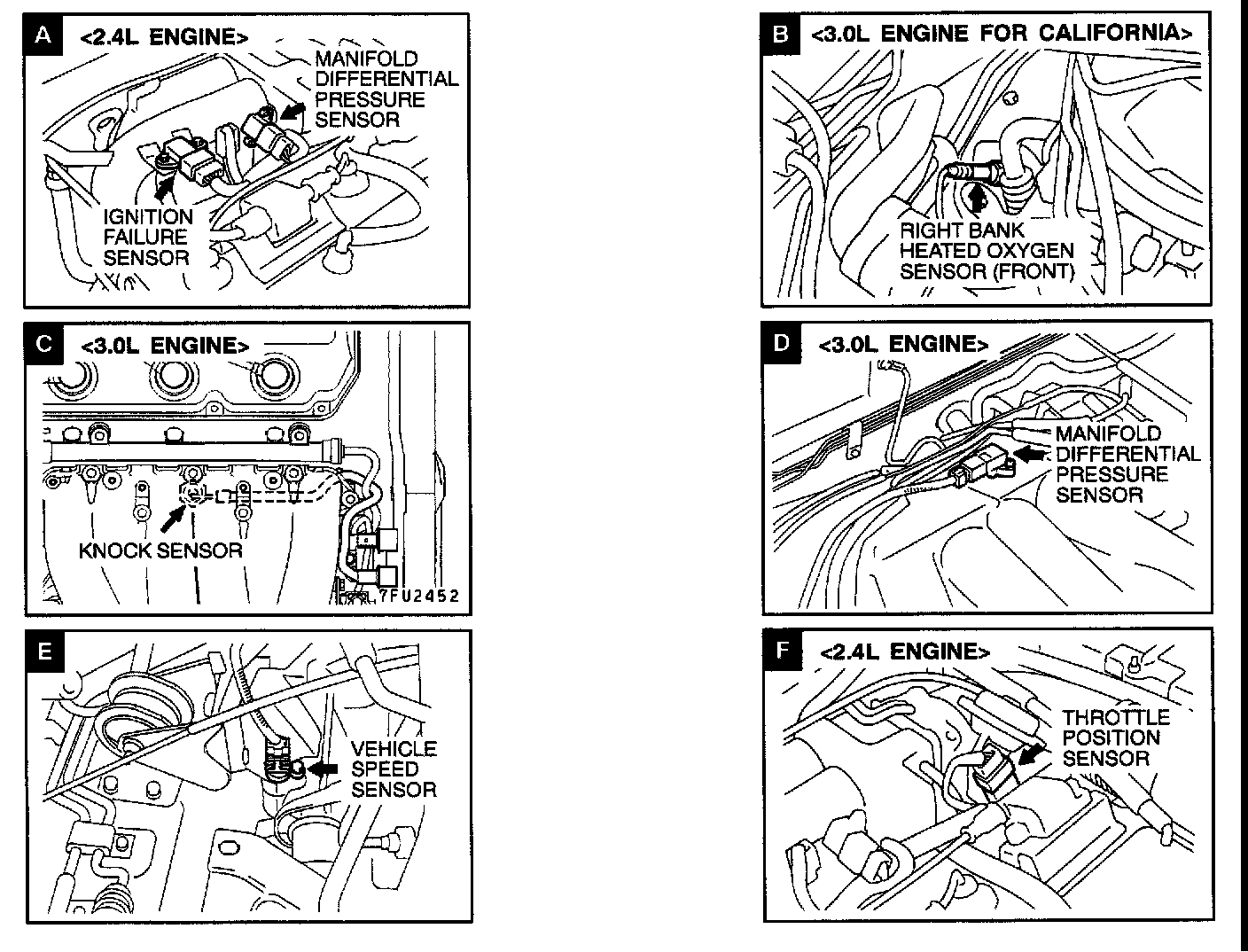

Sensor Location Views A-F:

Sensor Location Views G - P:

Sensor Location Views Q - Z:

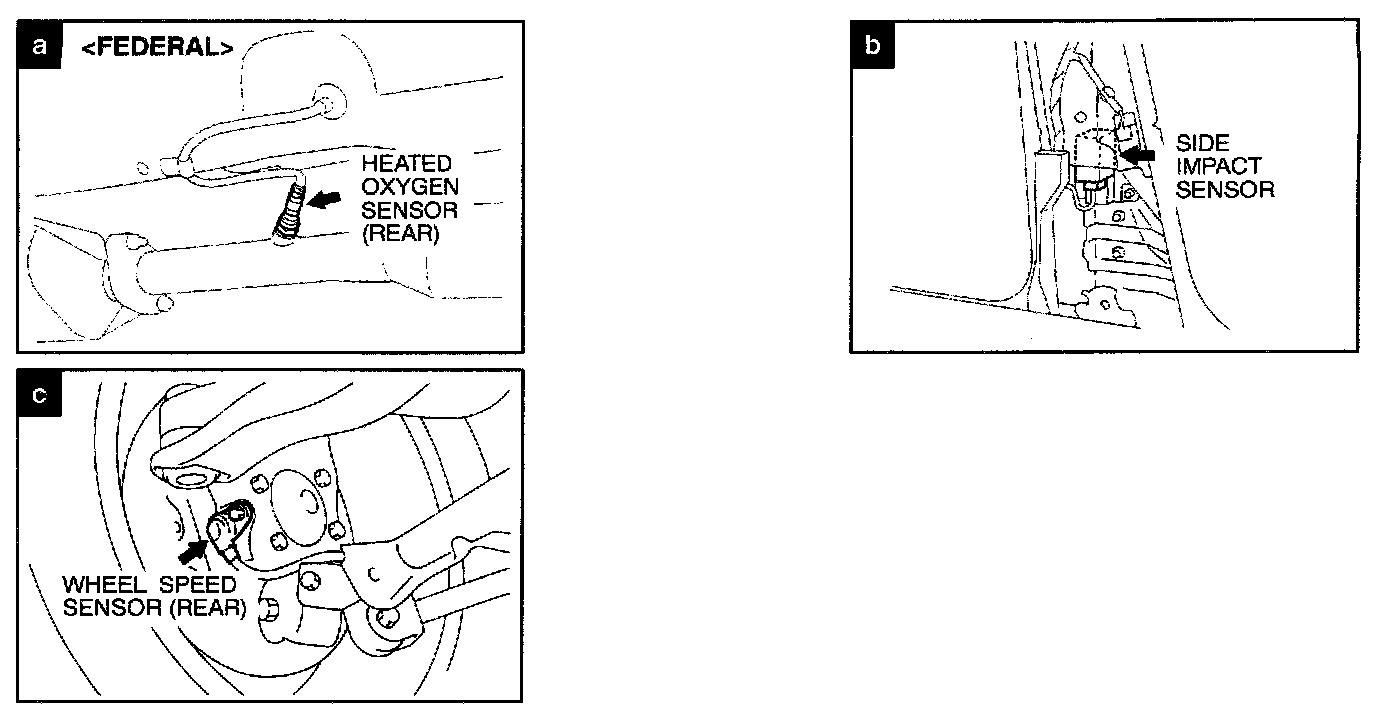

Sensor Location Views a - c:

NAME SYMBOL
A/C Compressor assembly M
(built-in revolution pickup sensor) <3.0 L Engine>
A/T Control Solenoid Valve Assembly R
(built-in A/T Fluid Temperature Sensor)
Air Thermo sensor (1999 Model) U
Camshaft Position Sensor <2.4 L Engine> I
Crankshaft Position Sensor <2.4 L Engine> K
Crankshaft Position Sensor <3.0 L Engine> L
Engine Coolant Temperature Sensor <2.4 L Engine> H
Engine Coolant Temperature Sensor <3.0 L Engine> Q
Fuel Tank Differential Pressure Sensor X
Heated Oxygen Sensor (front) O
<2.4 L Engine for California>
Heated Oxygen Sensor (front) Y
<2.4 L Engine for Federal>
Heated Oxygen Sensor (front) Y
<3.0 L Engine for Federal>
Heated Oxygen Sensor (rear) a
<2.4 L Engine>
Heated Oxygen Sensor (rear) A
<3.0 L Engine for Federal>
Ignition failure sensor <2.4 L Engine> A
Input shaft speed sensor S
Knock Sensor <3.0 L Engine> C
Left Bank Heated Oxygen Sensor (front) P
<3.0 L Engine for California>
Left Bank Heated Oxygen Sensor (rear) N
<3.0 L Engine for California>
Manifold Differential Pressure Sensor A
<2.4 L Engine>
Manifold Differential Pressure Sensor D
<3.0 L Engine>
Output Shaft Speed Sensor S
Right Bank Heated Oxygen Sensor (front) B
<3.0 L Engine for California>
Right bank heated oxygen sensor (rear) W
<3.0 L Engine for California>
Side impact sensor b
Thermister Sensor V
Throttle Position Sensor <2.4 L Engine> F
Throttle Position Sensor <3.0 L Engine> G
Vehicle Speed Sensor E
Volume Air Flow Sensor T
Wheel Speed Sensor (front) Z
Wheel Speed Sensor (rear) c
