Solenoids and Solenoid Valves

Solenoid And Solenoid Valve:

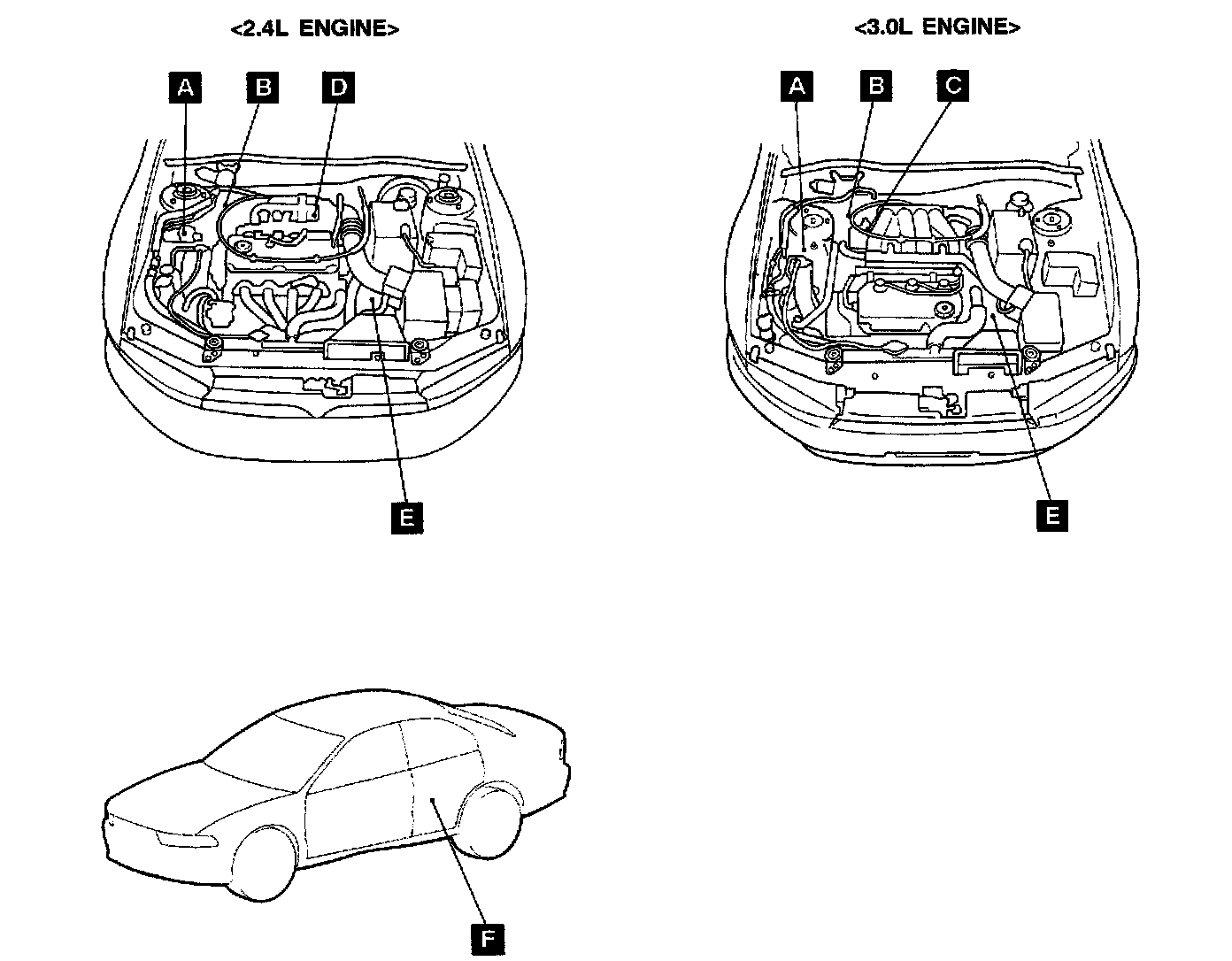

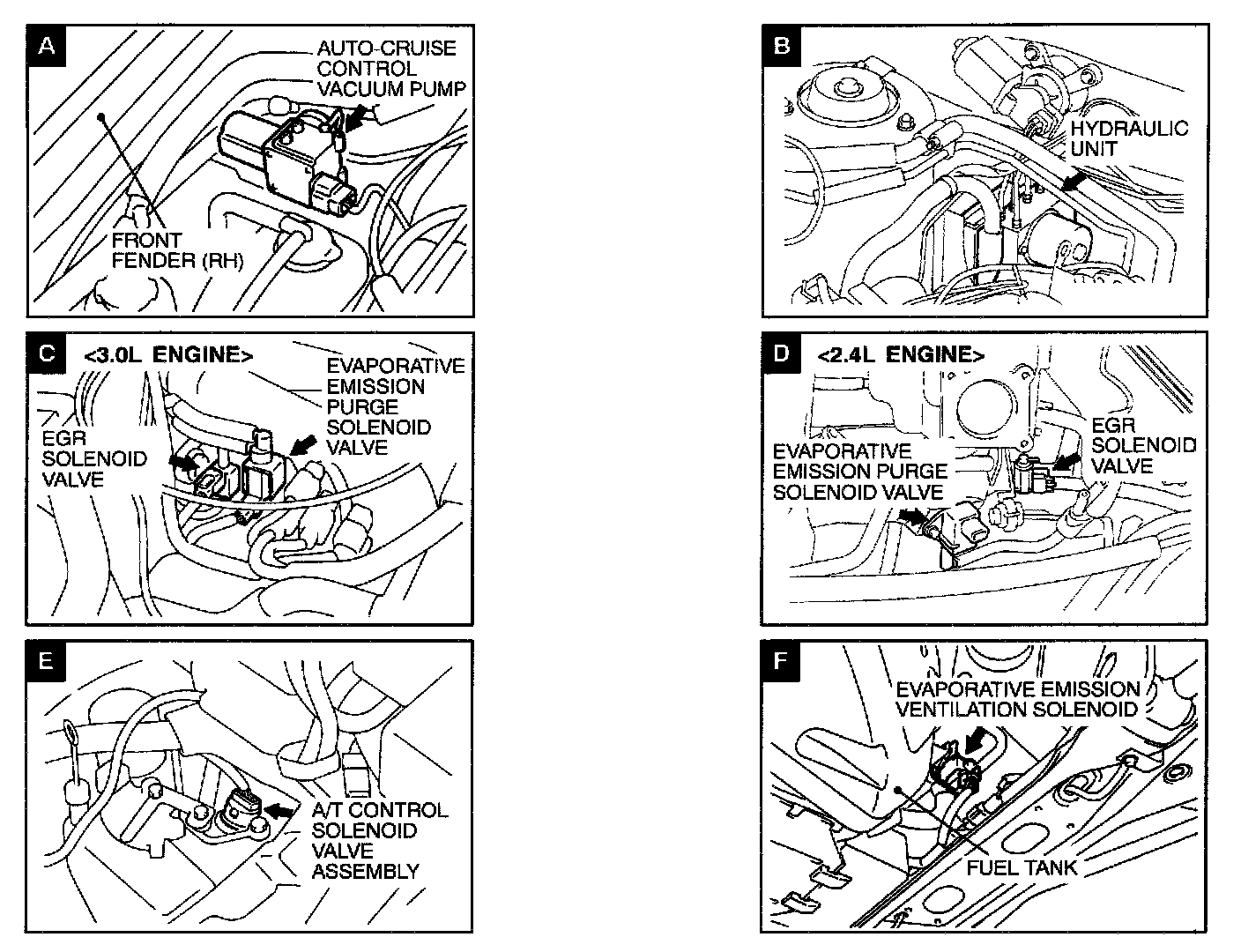

Solenoid And Solenoid Valve Location Views A - F:

NAME SYMBOL
A/T Control Solenoid Valve Assembly E
Auto-cruise Control Vacuum pump A
(built-in Control Valve, Release Valve)
EGR Solenoid Valve <2.4 L Engine> D
EGR Solenoid Valve <3.0 L Engine> C
Evaporative Emission Purge Solenoid Valve <2.4 L Engine> D
Evaporative Emission Purge Solenoid Valve <3.0 L Engine> C
Evaporative Emission Ventilation Solenoid F
Hydraulic Unit (built-in ABS Solenoid Valve) B
