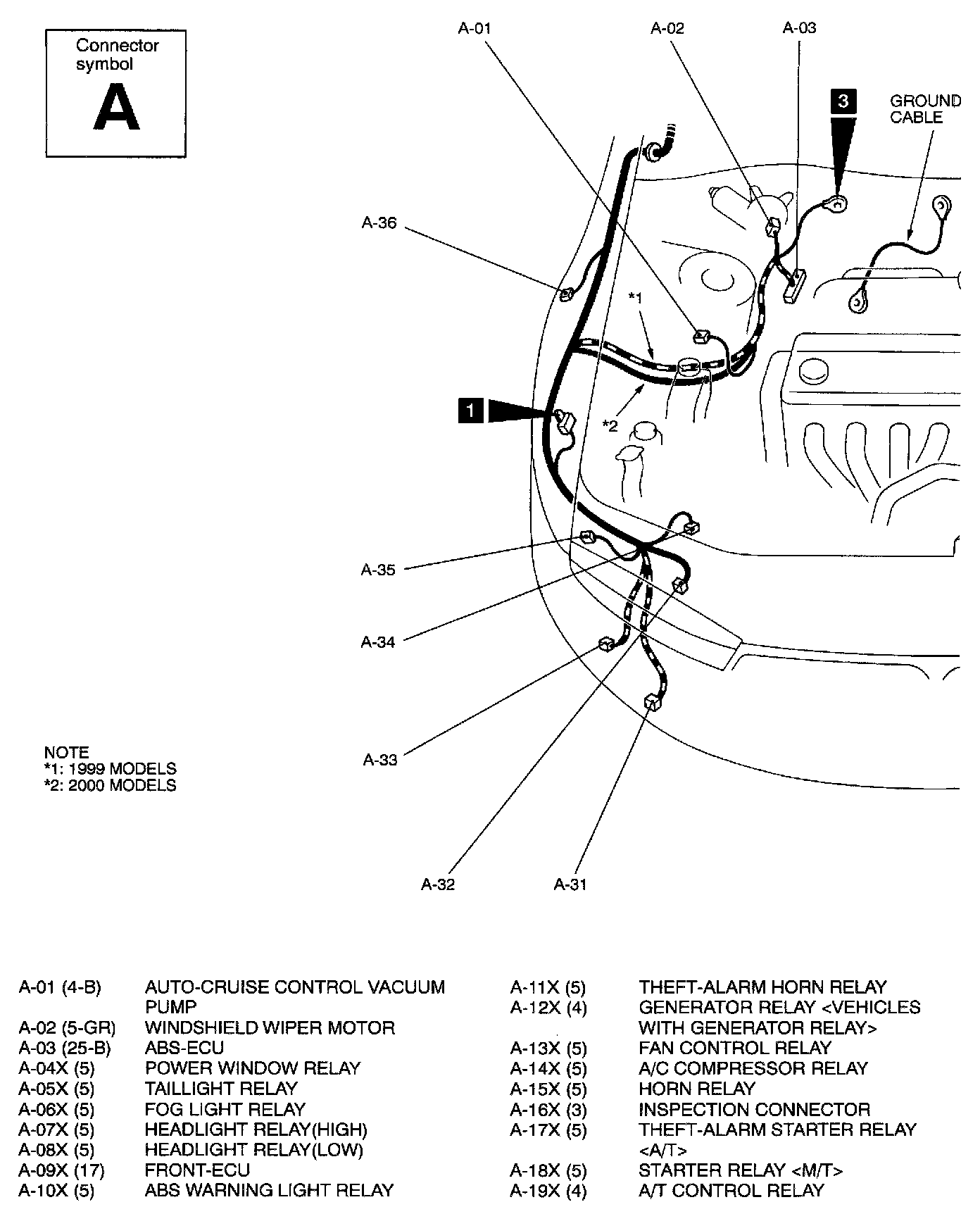

A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness
A-01 (4-B) Thru A-19X (4):
A-20X (4) Thru A-36 (2-B):
