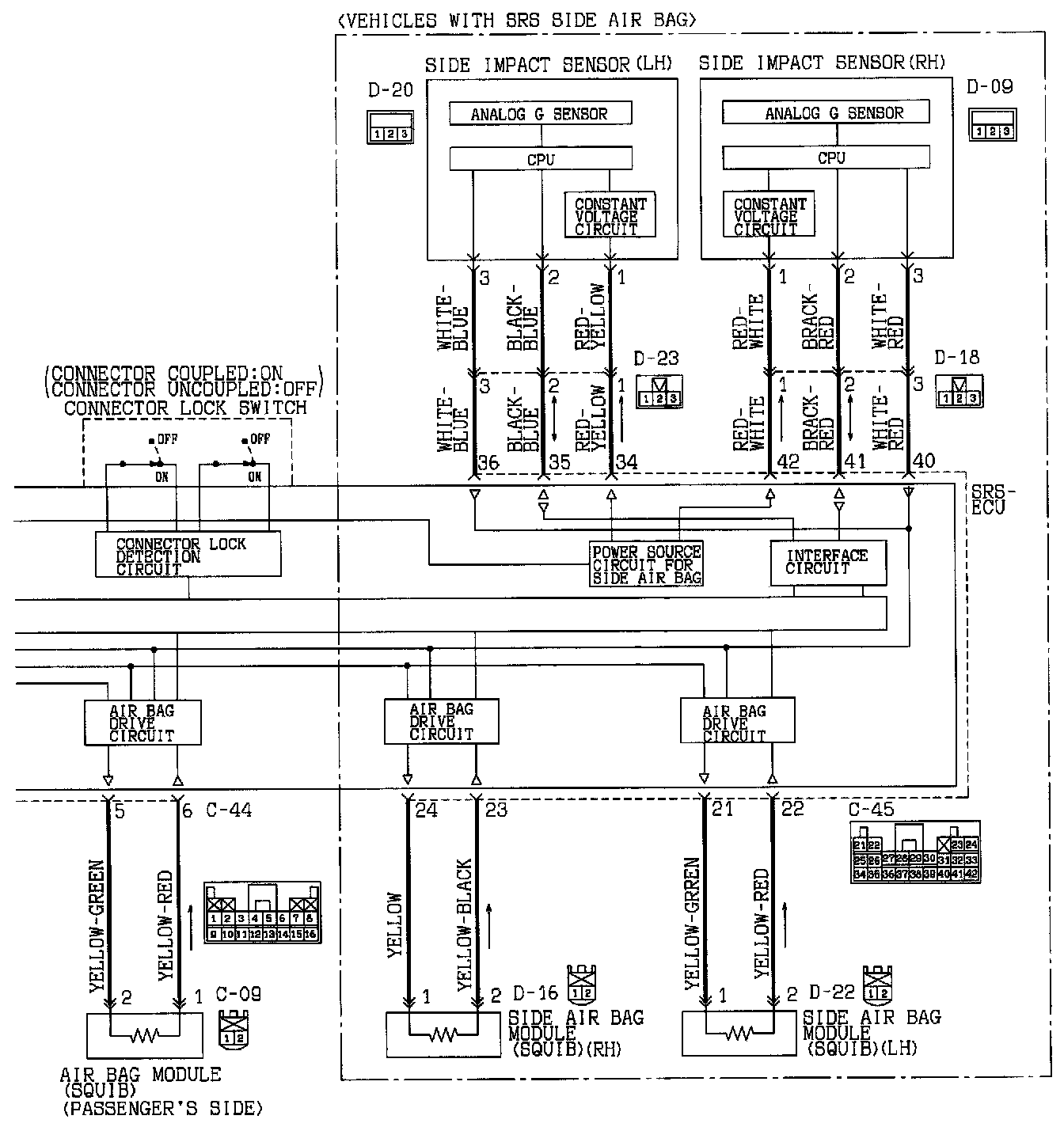

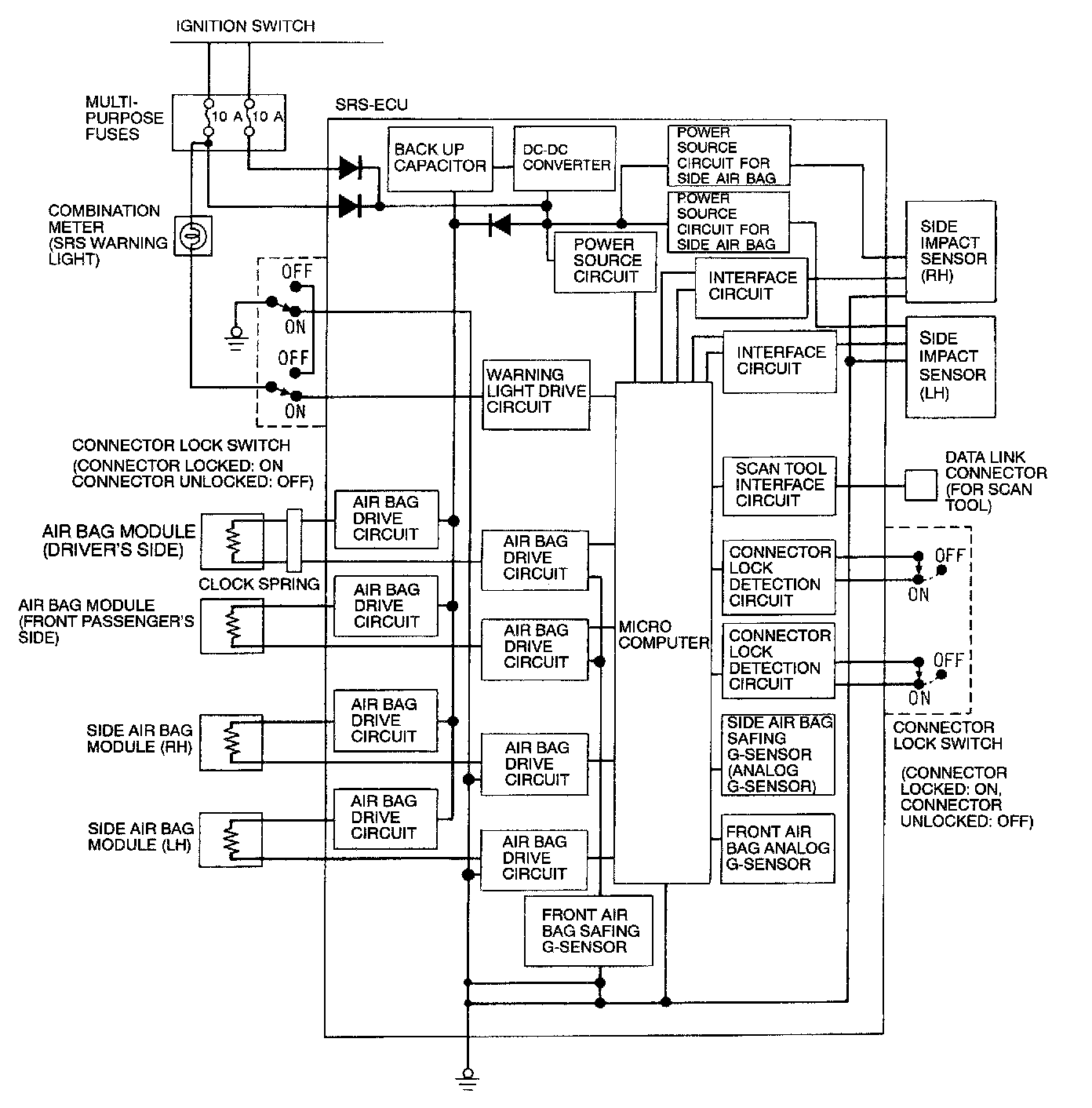

Air Bag Systems
1 Of 2:
2 Of 2:
WARNING:
1. Do not repair, splice, or modify the SRS wiring (except for specific repairs to the front wiring harness and the body wiring harness ): replace the wiring if necessary, after reading and following all precautions and procedures.
2. Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools and a digital multi-meter.
