Cruise Control

Auto-Cruise Control-ECU
Combination Meter
Junction Block
Park/Neutral Position Switch




Auto-Cruise Control Vacuum Pump
Joint Connector (1)
Junction Block
Stoplight Switch

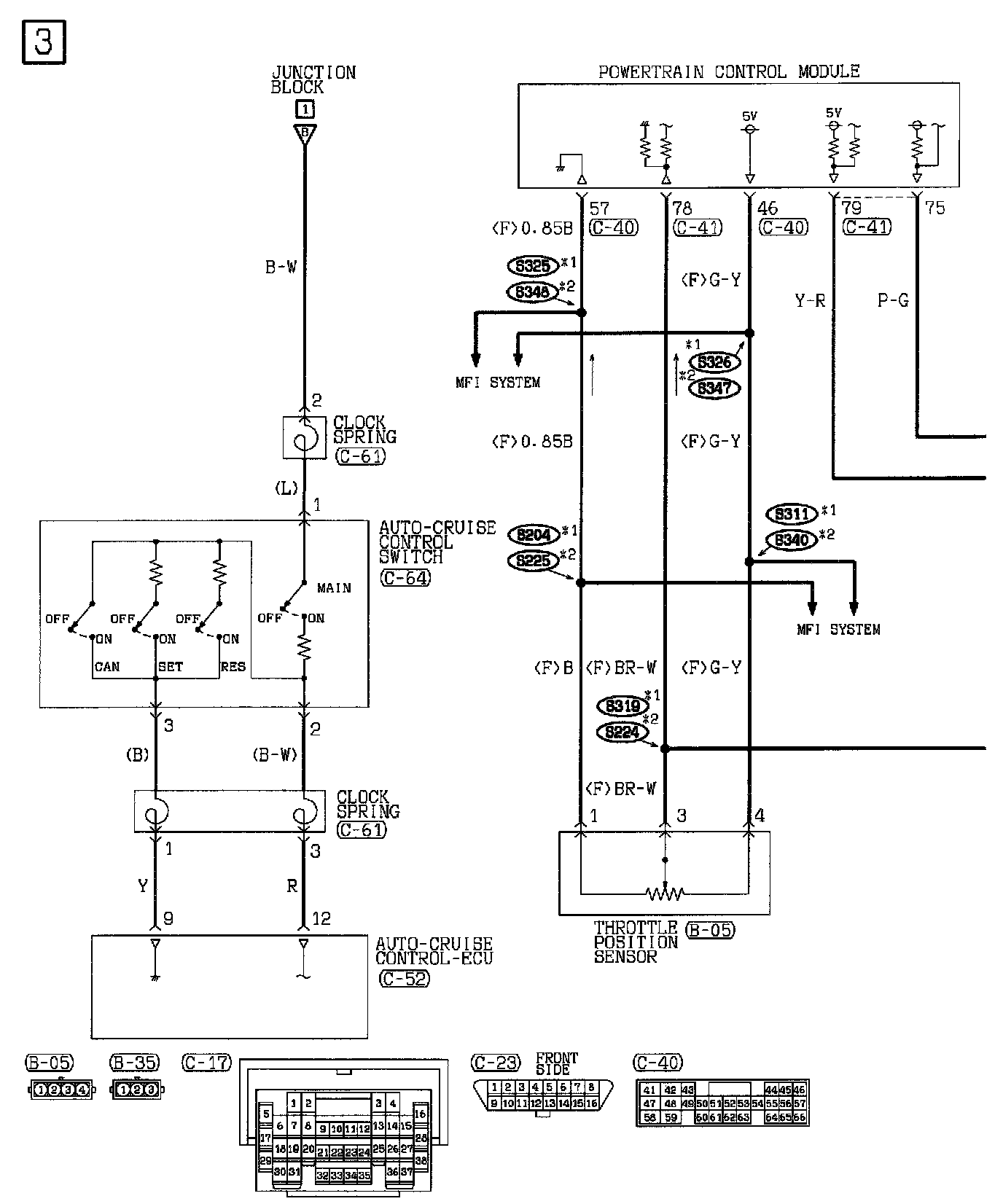

Auto-Cruise Control-ECU
Auto-Cruise Control Switch
Clock Spring
Junction Block
Powertrain Control Module
Throttle Position Sensor

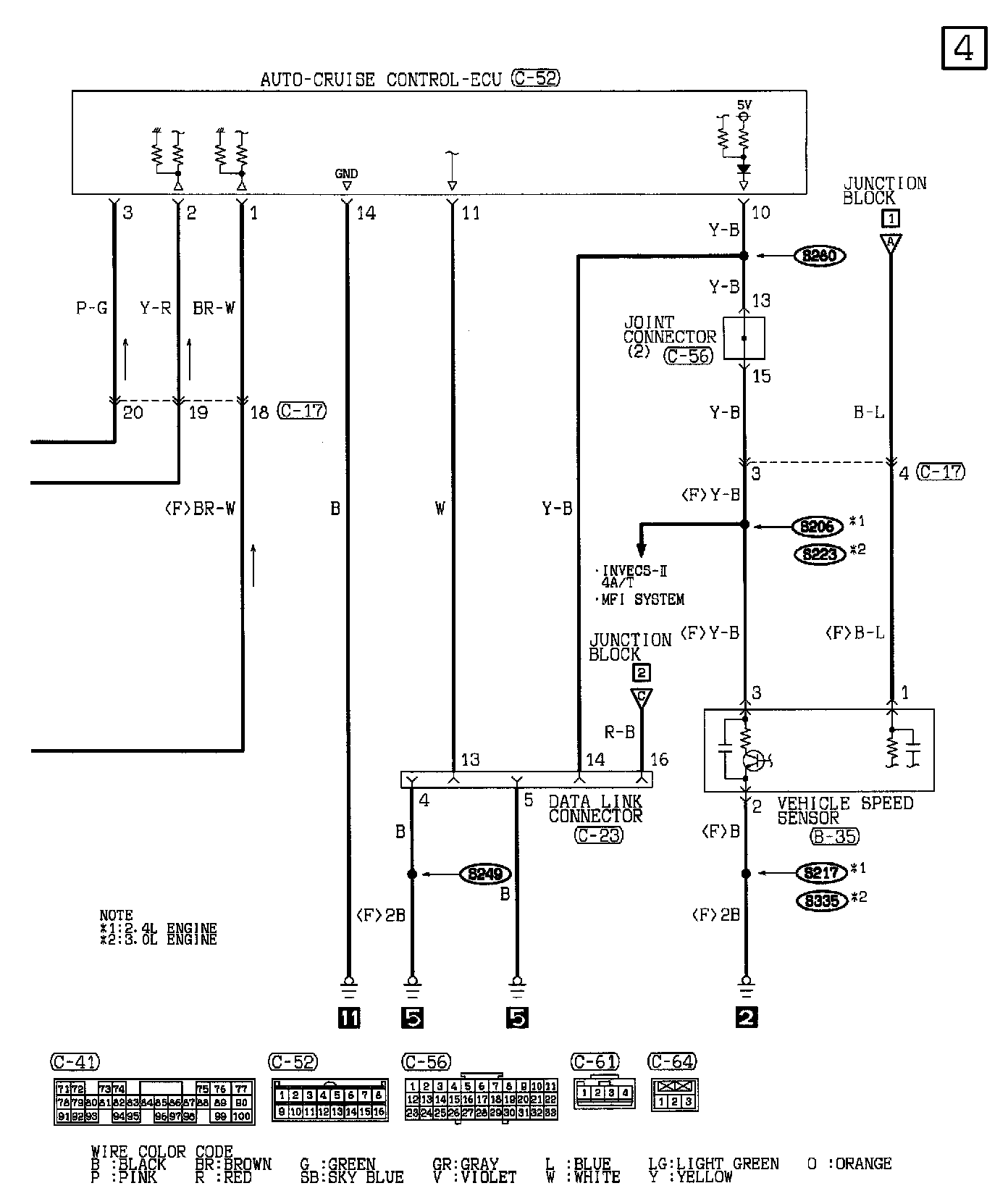

Auto-Cruise Control-ECU
Data Link Connector
Joint Connector (2)
Junction Block
Vehicle Speed Sensor
