Fog/Driving Lamp

This article has been updated per Mitsubishi TSB# 06-54-013

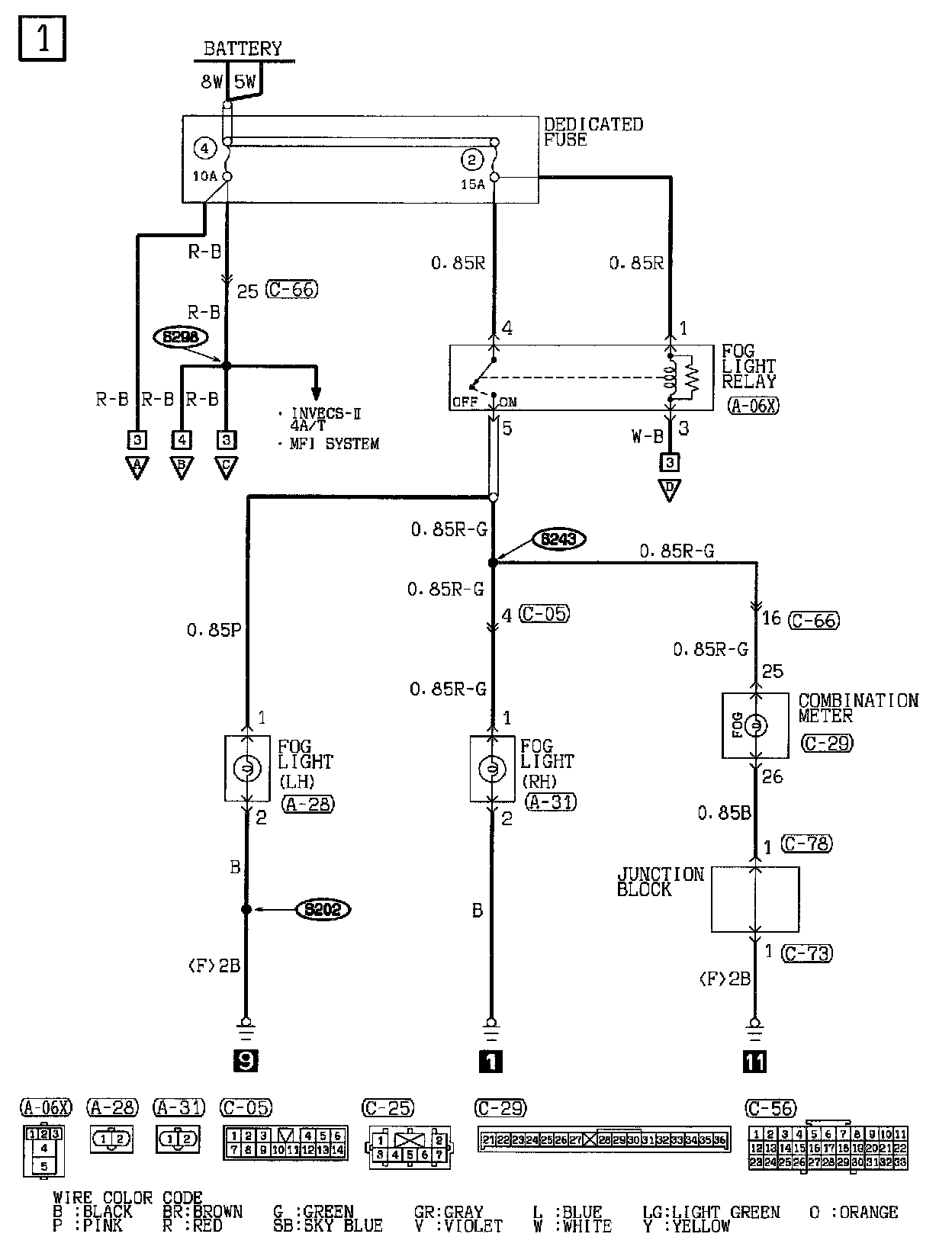

Combination Meter
Dedicated Fuse
Junction Block
Fog Light Relay
Fog Light LH & RH

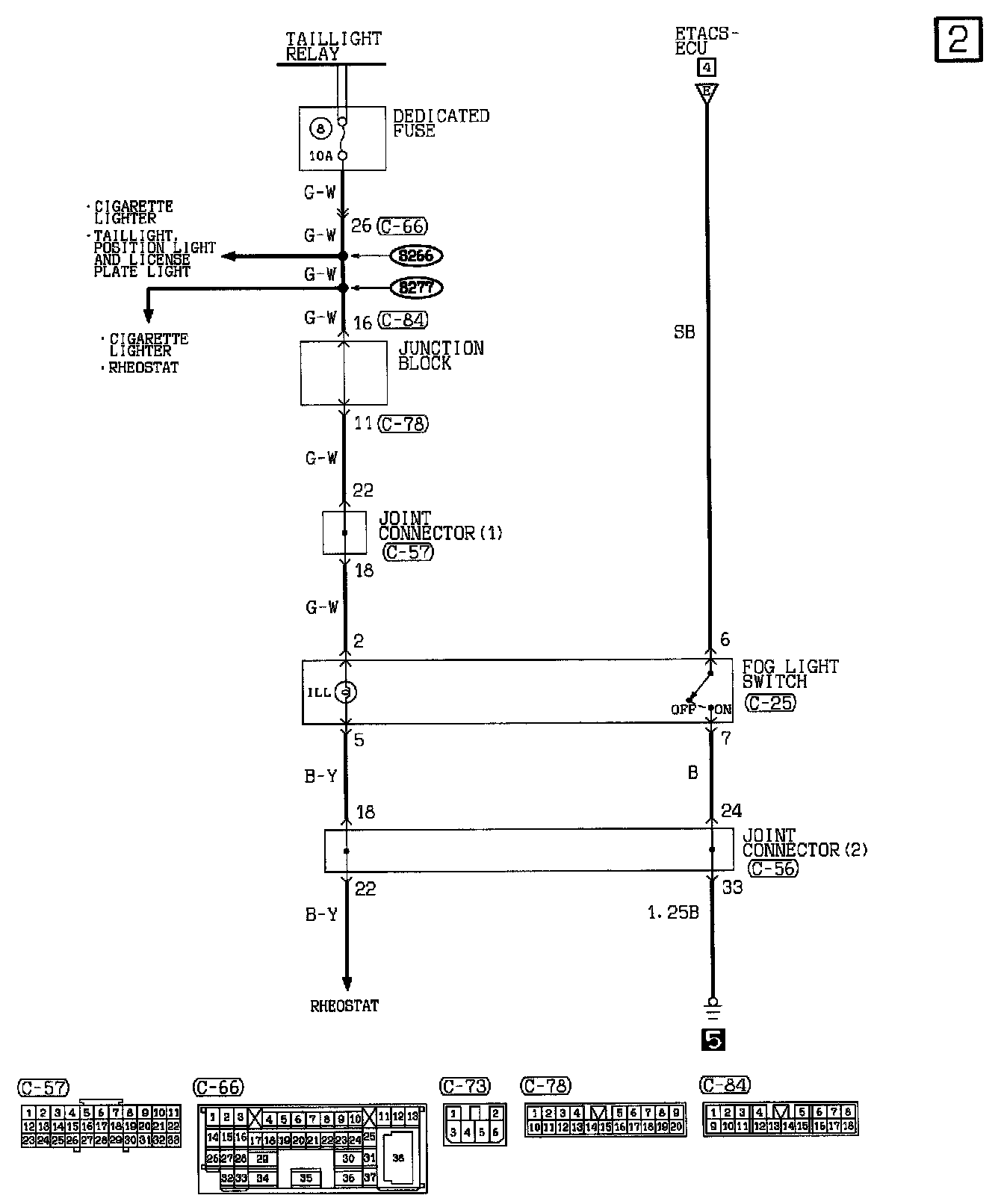

Dedicated Fuse
Junction Block
Joint Connector
Fog Light Switch

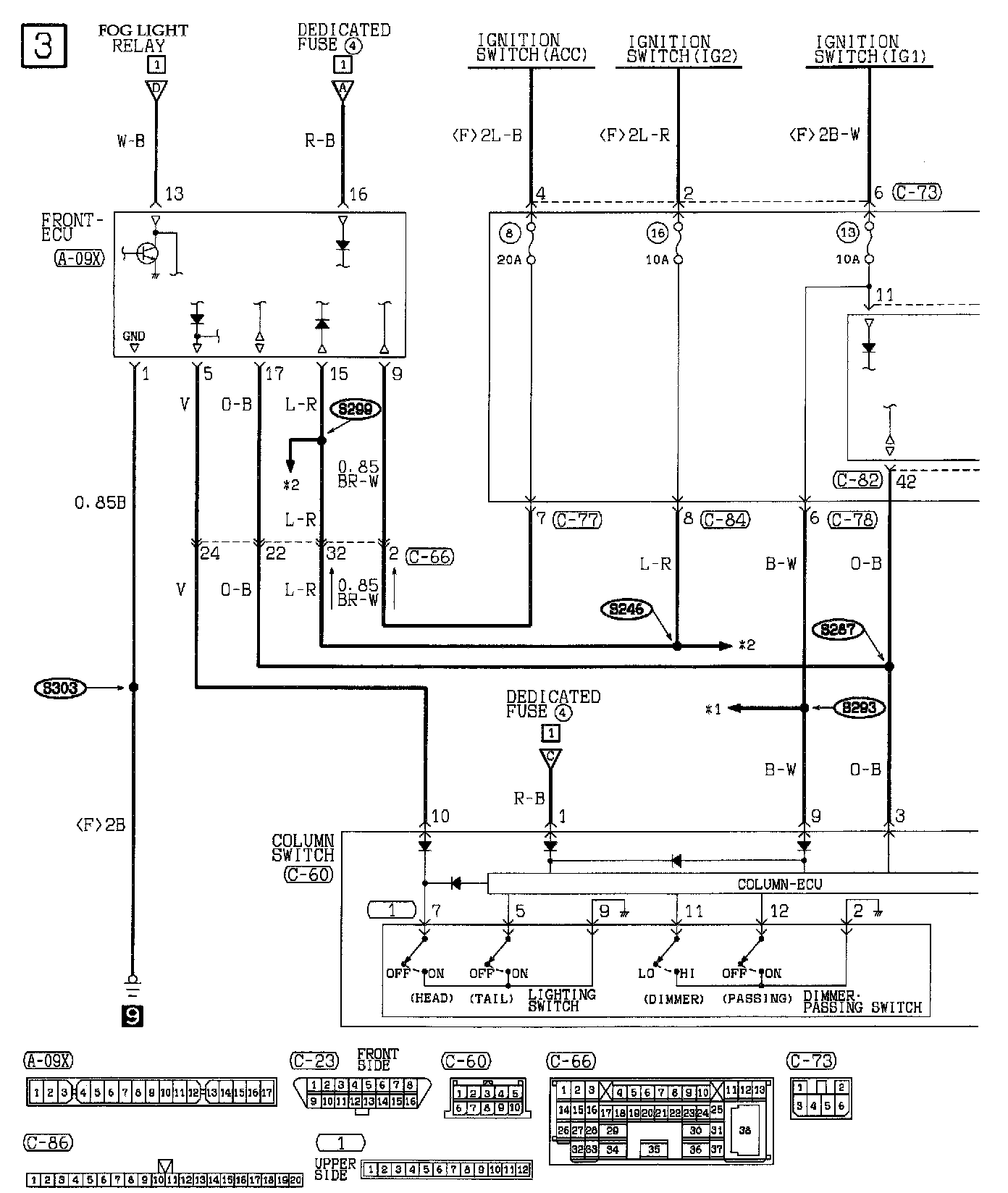

Column Switch
Column ECU
Dedicated Fuse
Front-ECU




Data Link Connector
Junction Block
ETACS-ECU
