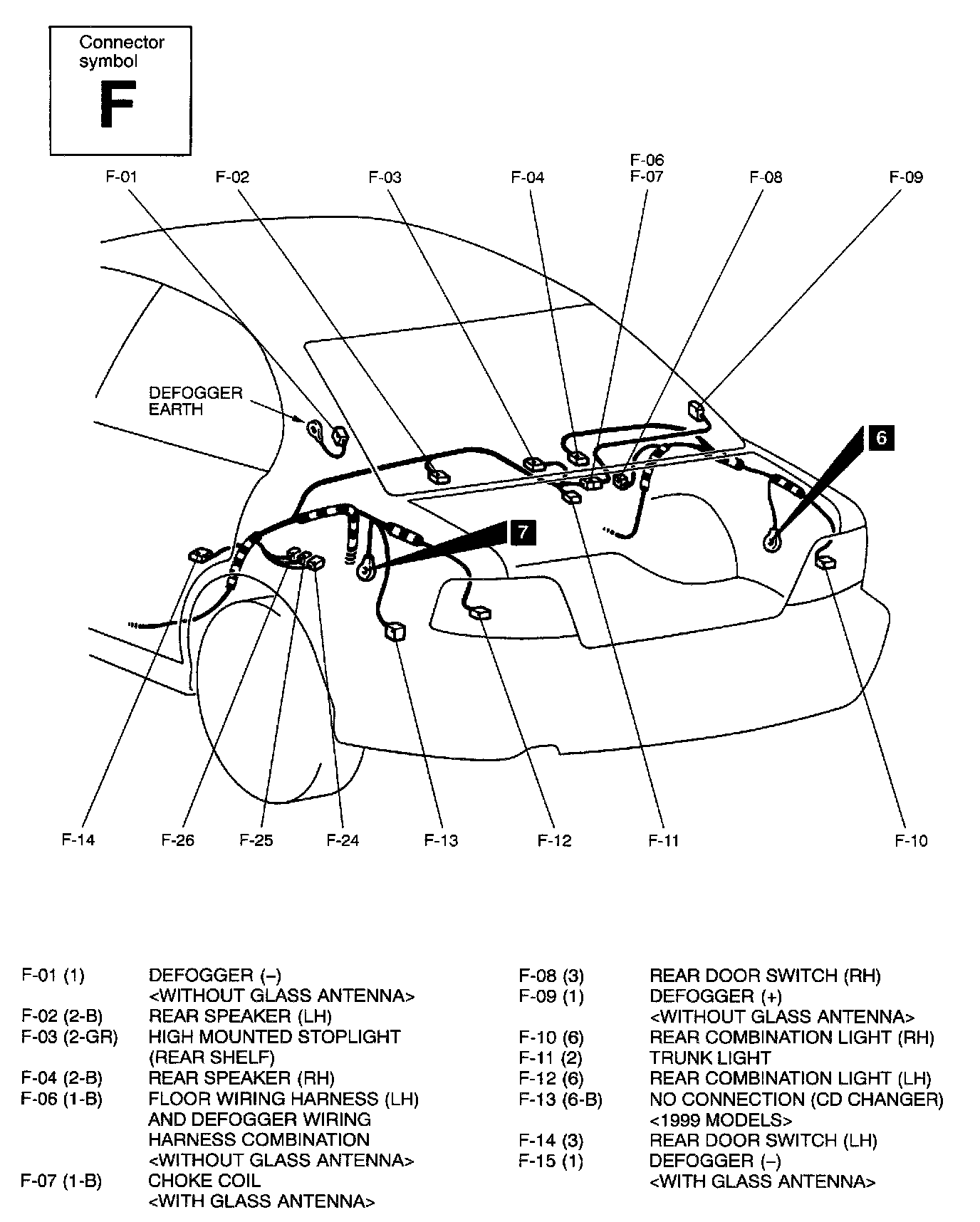

Trunk Harness - F Connectors
Trunk Harness - F Connectors
F-01 (1) Thru F-15 (1):
F-16 (6-B) Thru F-26 (1-B):
