Key Reminder Switch: Testing and Inspection

KEY REMINDER SWITCH AND IGNITION KEY RING ANTENNA CONTINUITY CHECK
1. Ignition key reminder switch continuity check

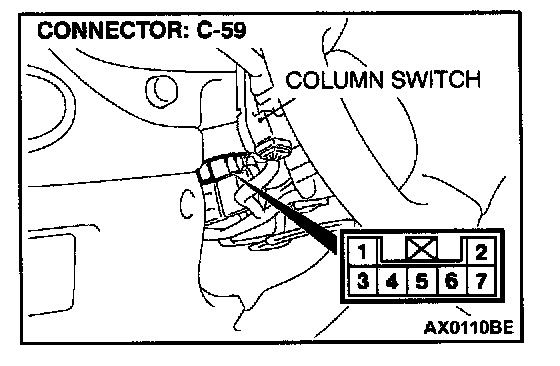

Disconnect key reminder switch connector C-59 without removing the key reminder switch and steering lock cylinder. Then check the continuity.

2. Ignition key ring antenna check
Check the continuity between terminal 3 and terminal 7.

Standard value: 2 Ohms or less
