Temperature Gauge: Service and Repair

Combination Meter - Disassembly And Assembly:

DISASSEMBLY SERVICE POINT

CAUTION: Be careful not to damage the printed-circuit board when using a flat4ipped screwdriver.

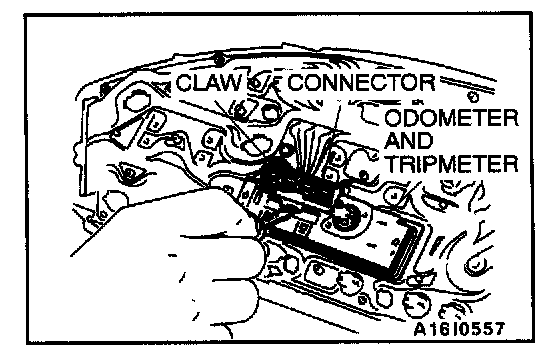

[A] ODOMETER AND TRIPMETER REMOVAL
Unfasten the claw in the connector using a flat-tipped screwdriver to disconnect the connector.

Then remove the printed circuit board position, and remove the odometer and tripmeter.
