Lighting and Horns: Service and Repair
WARNING
- Before removal of the air bag module, refer to Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
REMOVAL SERVICE POINTS
RADIATOR GRILLE REMOVAL
Remove the radiator grille by pushing all tabs of the radiator grille clips in the direction of the arrows with a flat-tipped screwdriver; then lightly pull the radiator grille toward you.
HEADLIGHT, FRONT TURN-SIGNAL LIGHT AND POSITION LIGHT ASSEMBLY REMOVAL

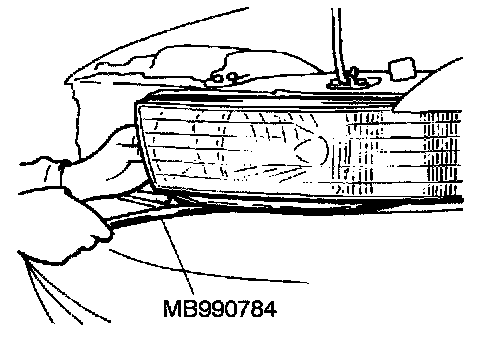

To prevent damage to the bumper, insert special tool MB990784 between the headlight, front turn-signal light and position light assembly and the bumper. Then remove the light assembly carefully.
