Emission Control Systems: Diagrams

The content of this article/image reflects the changes called out by TSB - 03-17-002

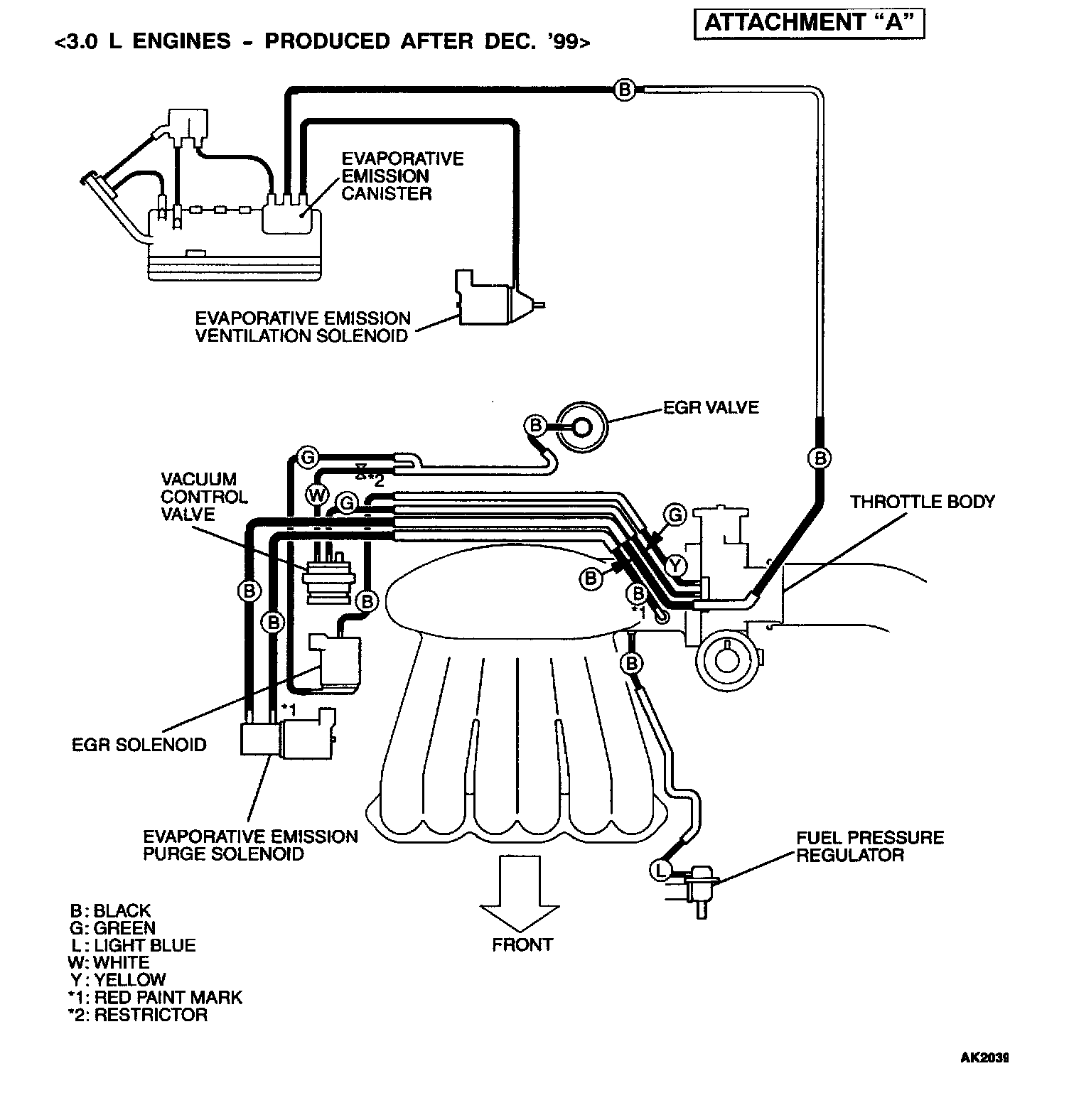

VACUUM HOSE ROUTING



Produced before Nov. 1999



Produced after Nov. 1999


VACUUM CIRCUIT DIAGRAM



Produced before Nov. 1999



Produced after Nov. 1999
