A/C - Additional Diagnostic Information
No: TSB-00-55-003DATE: July, 2000
MODEL: 1999-2000 Galant
SUBJECT:
NEW A/C DIAGNOSTIC INFORMATION (REFRIGERANT RELIEF VALVE) - SERVICE MANUAL REVISION
[TSB Revision TSB-00-55-003]
PURPOSE
This bulletin contains new A/C diagnostic information concerning the refrigerant relief valve.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1999 - 2000 Galant
AFFECTED SERVICE MANUALS
1999 - 2000 Galant Service Manual, Volume 3, Pages 55-5 & 55-10

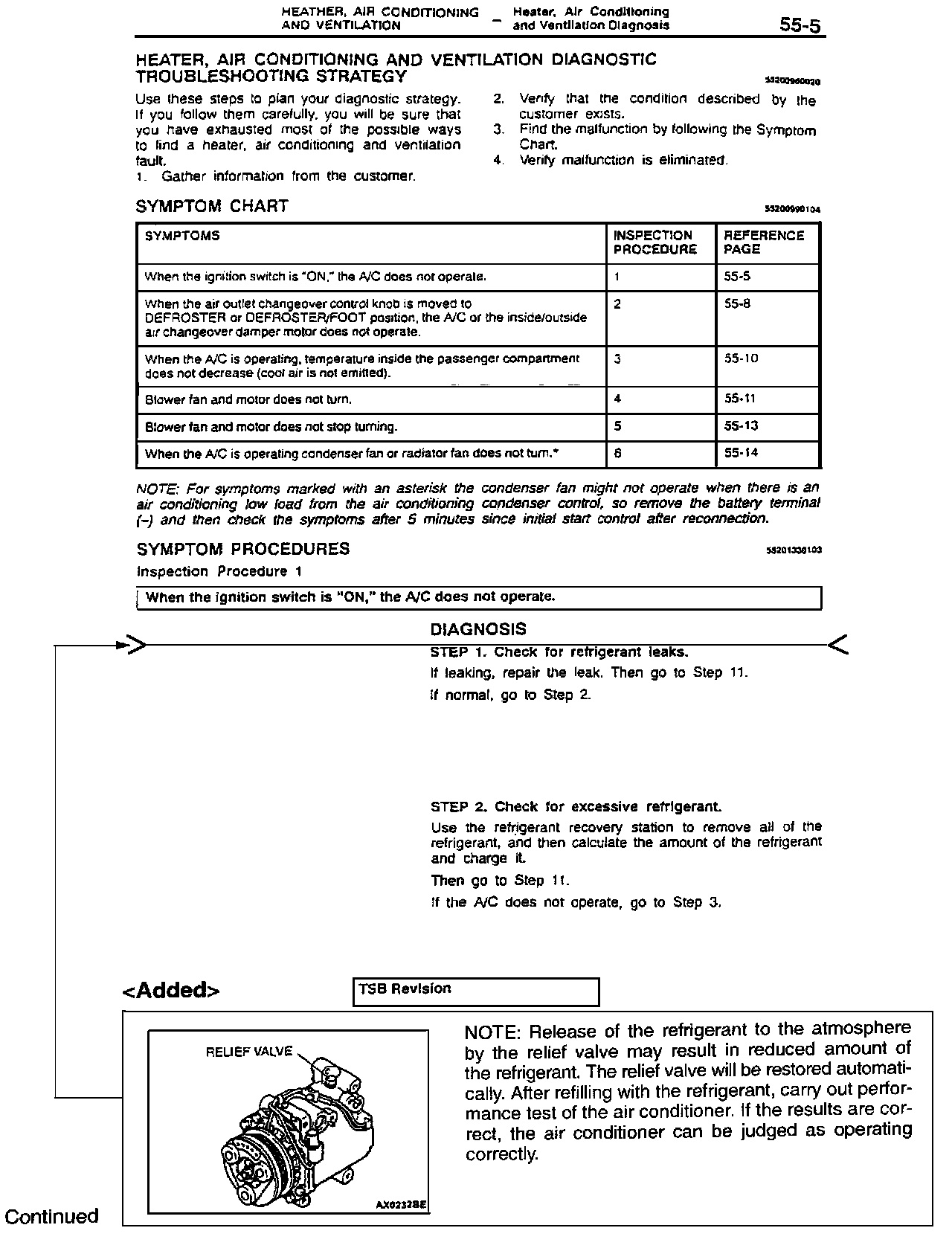

1999-2000 Galant Service Manual, Volume 3, Page 55-5 Add the new A/C relief valve diagnostic information as shown.

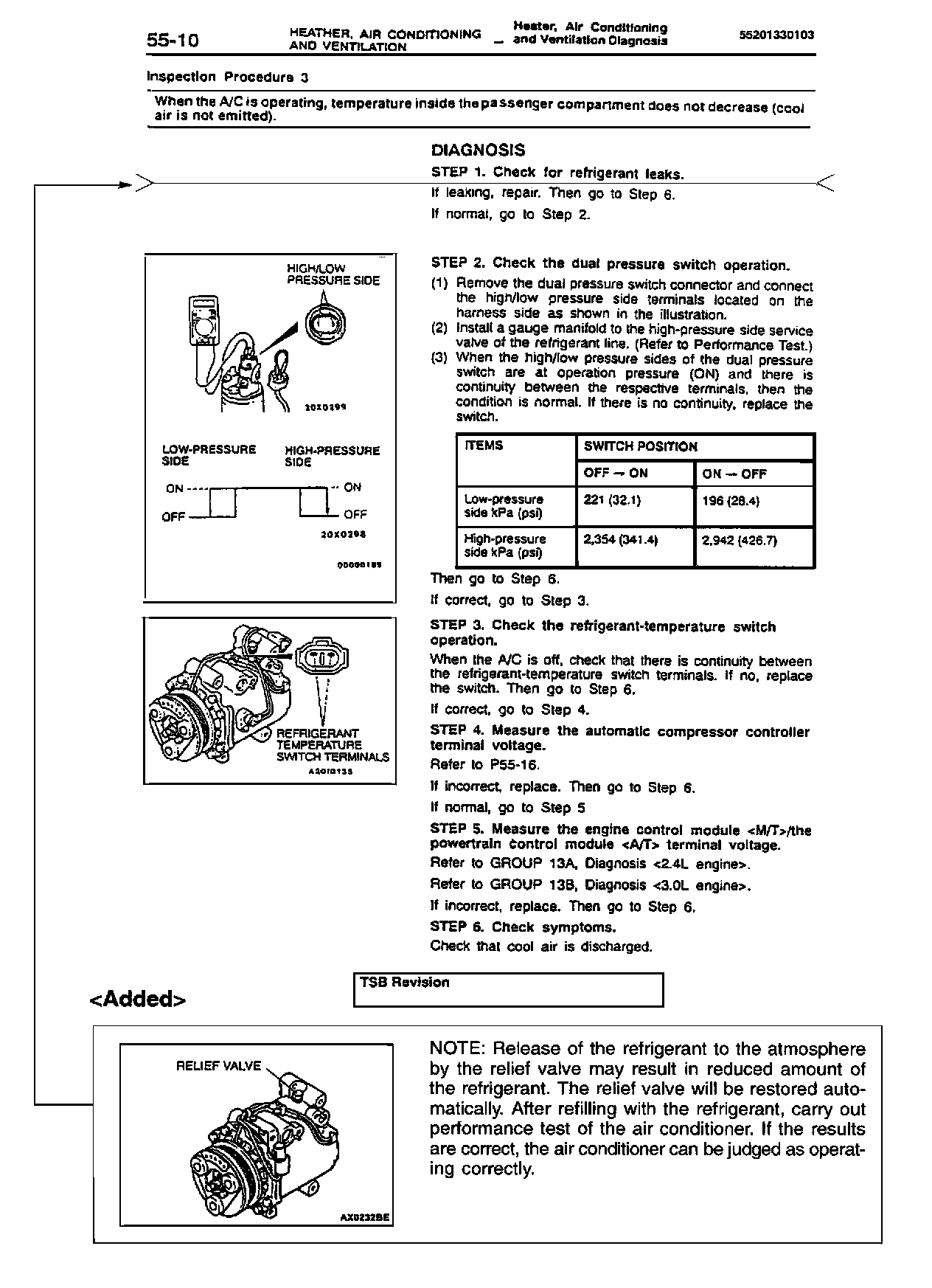

1999-2OOO Galant Service Manual, Volume 3, Page 55-10 Add the new A/C relief valve diagnostic information as shown.
