A/C - System Circuit Diagrams Revision

No: TSB-00-55-005

DATE: November, 2000

MODEL: 1999-2000 Galant

SUBJECT:
CORRECTED A/C SYSTEM CIRCUIT DIAGRAMS - SERVICE MANUAL REVISION

[TSB Revision TSB-00-55-005]

PURPOSE
This bulletin contains various corrections to the air conditioning system circuit diagrams.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1999-2000 Galant

AFFECTED SERVICE MANUAL
1999-2000 Galant Service Manual, Volume 3, Pages 90-224 to 226, 90-232 to 237, 90-244 to 250

SERVICE MANUAL REVISIONS





1999-2000 Galant Service Manual, Volume 3, page 90-224
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-225
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-226
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

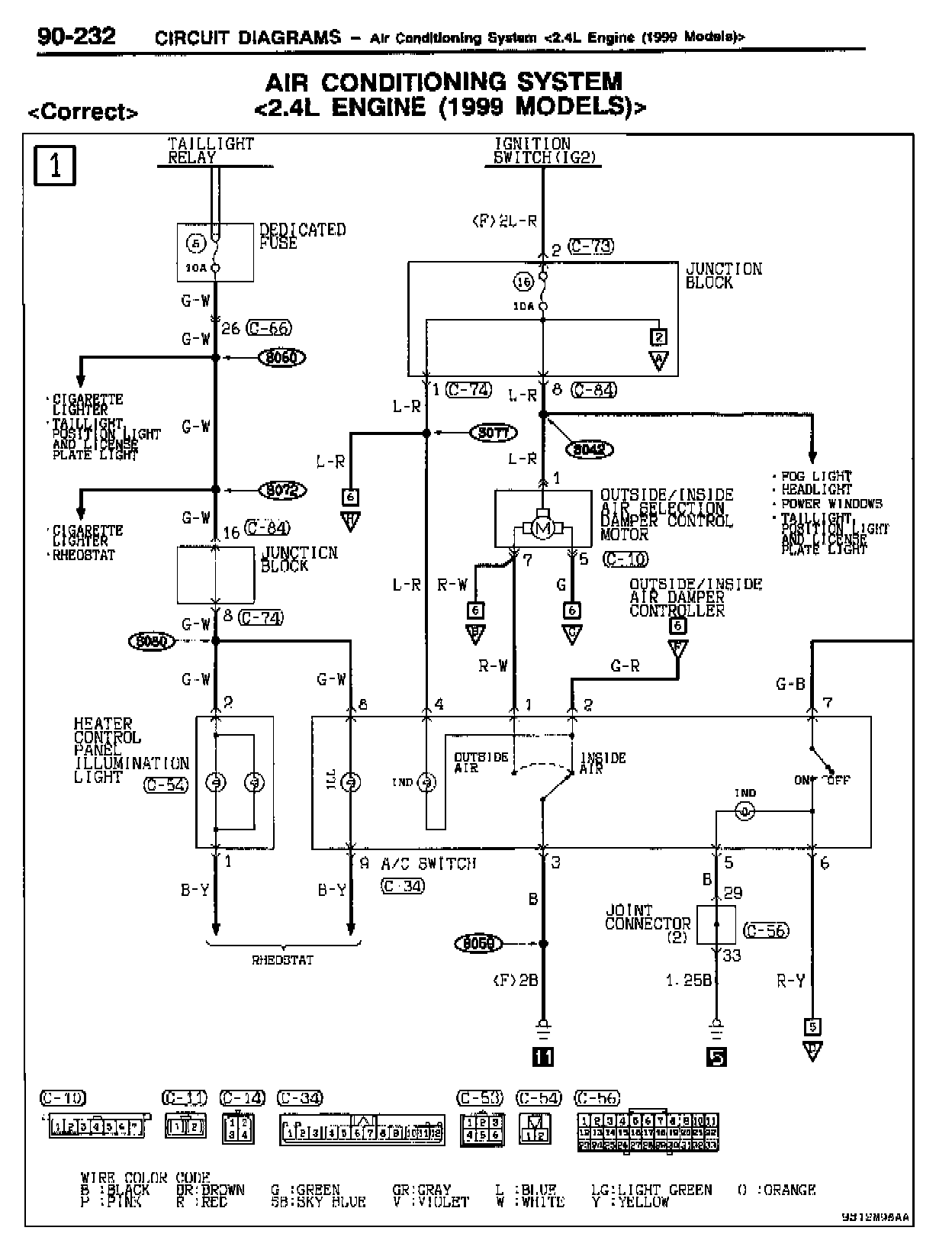

1999-2000 Galant Service Manual, Volume 3, page 90-232
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

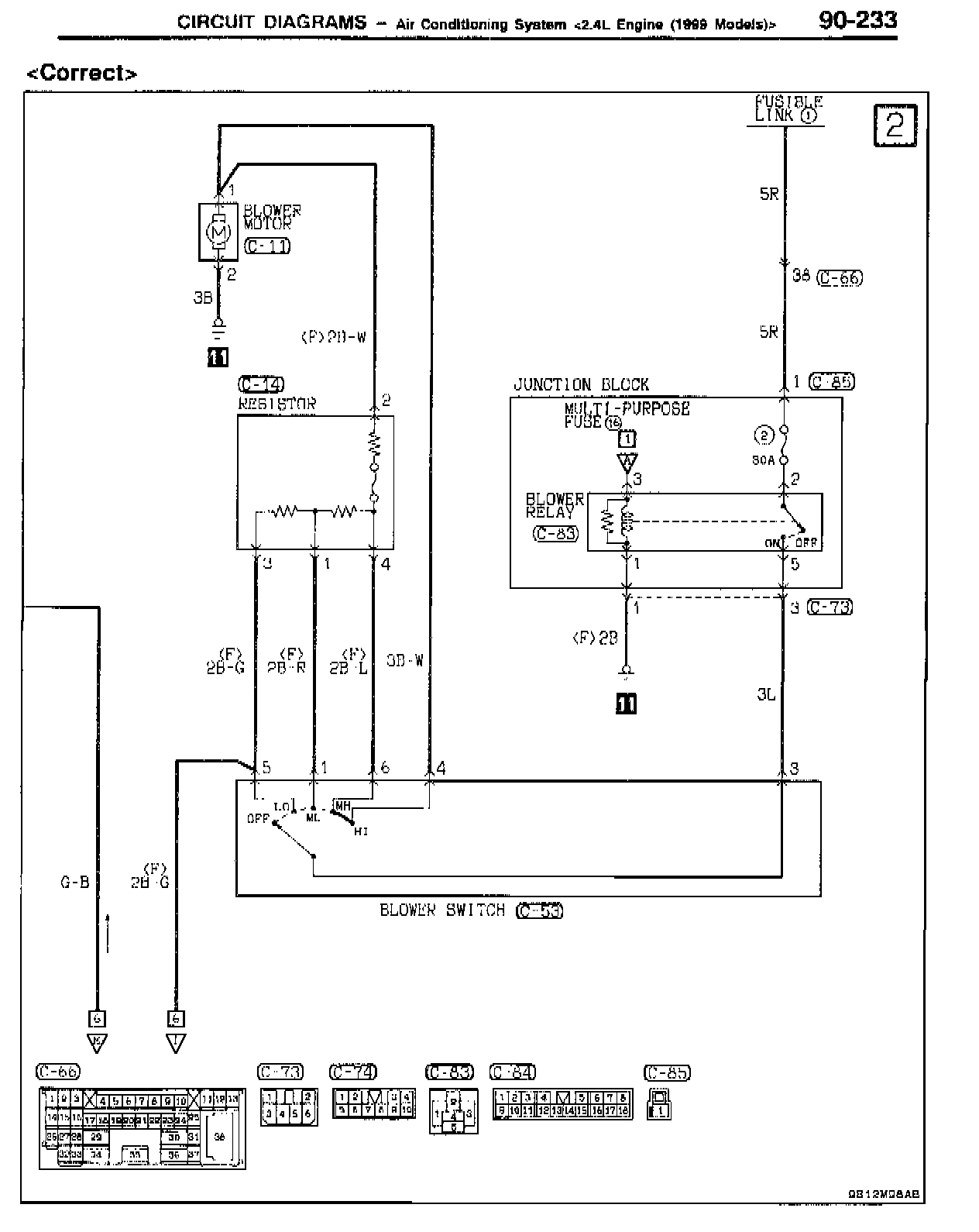

1999-2000 Galant Service Manual, Volume 3, page 90-233
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-234
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-235
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-236
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-237
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

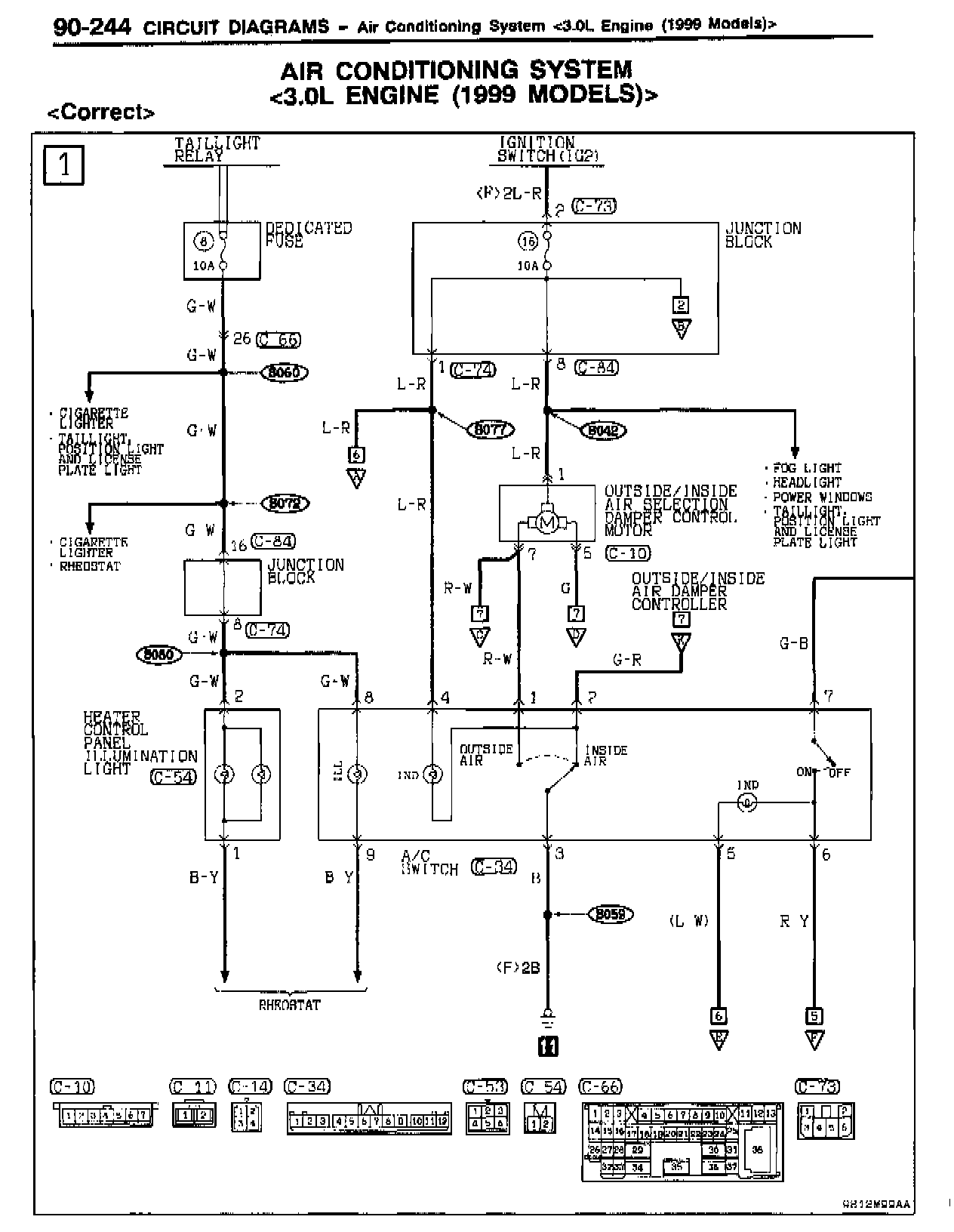

1999-2000 Galant Service Manual, Volume 3, page 90-244
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

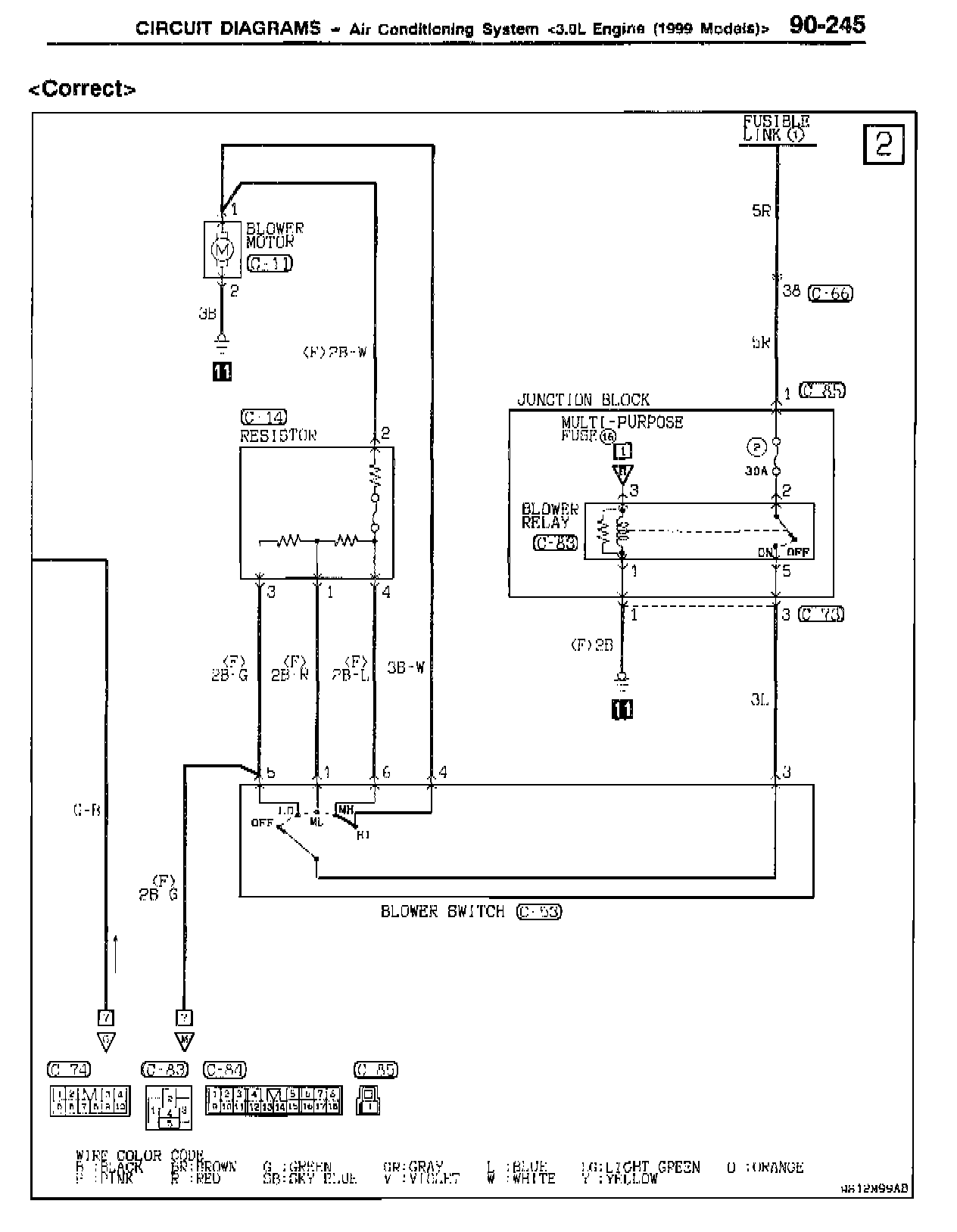

1999-2000 Galant Service Manual, Volume 3, page 90-245
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-246
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

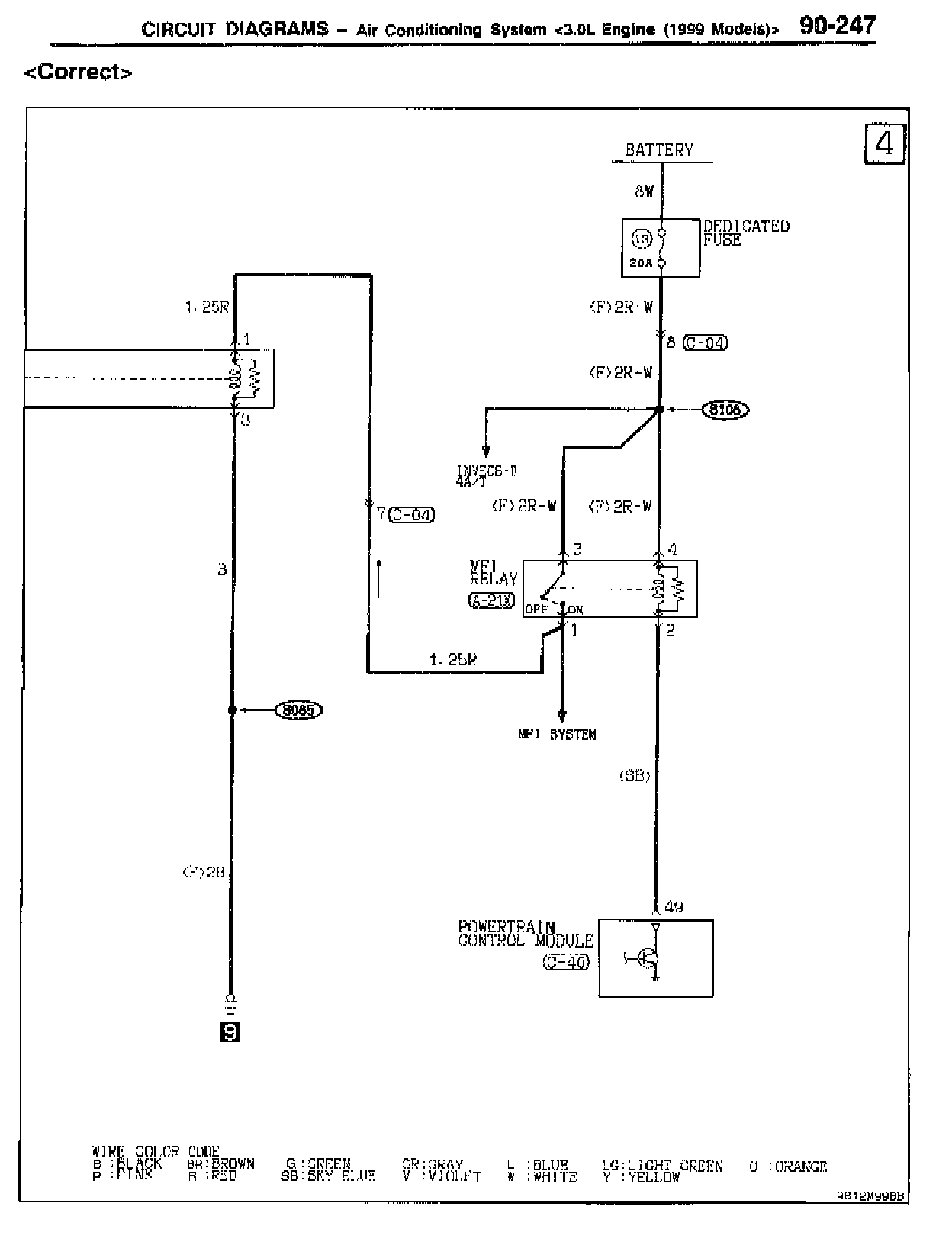

1999-2000 Galant Service Manual, Volume 3, page 90-247
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-248
Delete the original circuit diagram on the indicated page and replace it with the new diagram.





1999-2000 Galant Service Manual, Volume 3, page 90-249
Delete the original circuit diagram on the indicated page and replace it with the new diagram.

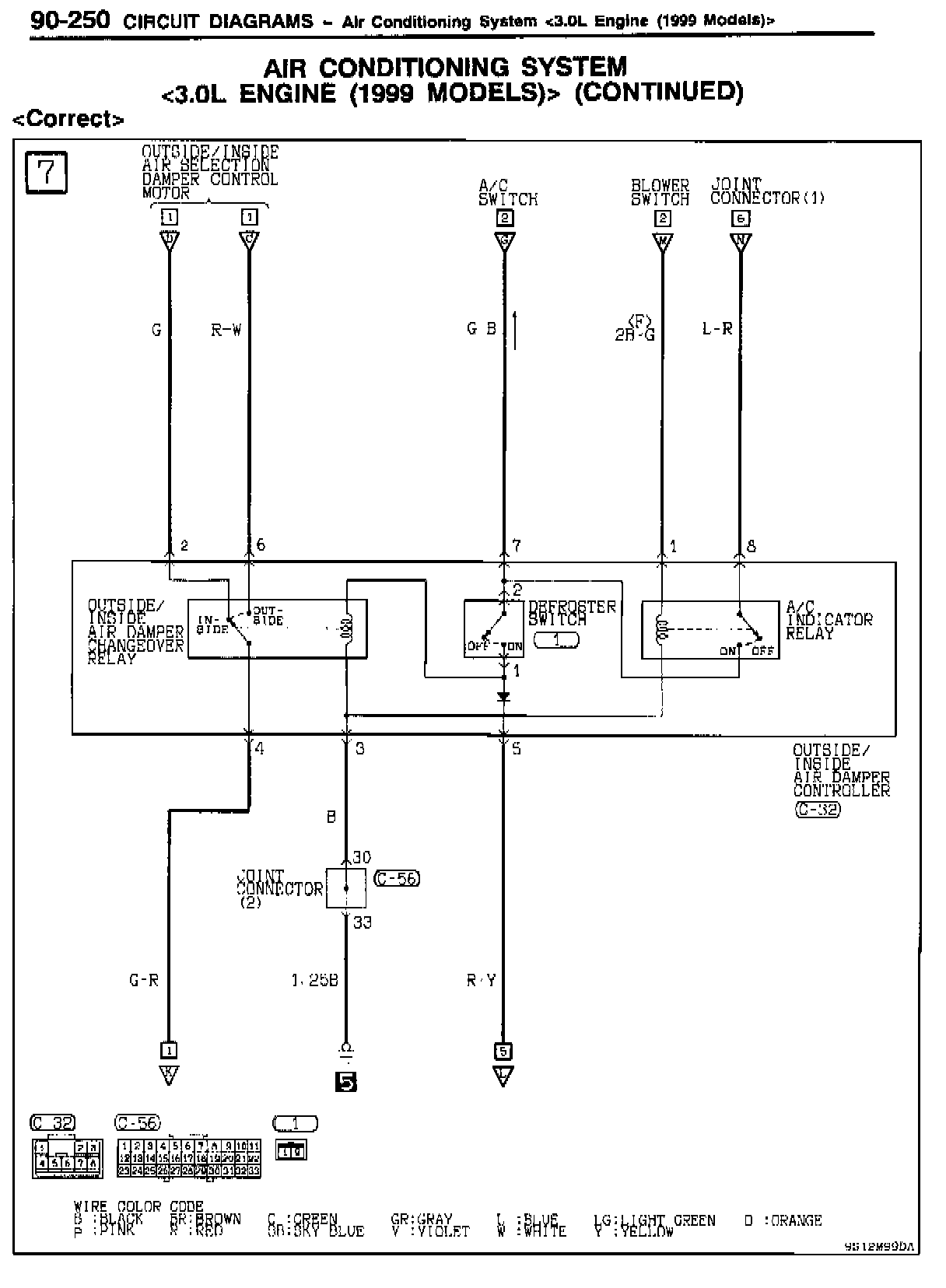

1999-2000 Galant Service Manual, Volume 3, page 90-250
Delete the original circuit diagram on the indicated page and replace it with the new diagram.
