A/T - Control/Linkage R & I Manual Revision
No.: TSB-02-23-006DATE: August, 2002
MODEL: 1999 - 2002 Galant
SUBJECT:
TRANSAXLE CONTROL REMOVAL/INSTALLATION - SERVICE MANUAL REVISION
PURPOSE
Procedures for removal and installation of the transaxle control are incorrect in the affected service manual pages. This bulletin provides corrected steps for A/T removal and installation.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1999-2003 Galant vehicles equipped with automatic transaxle
AFFECTED SERVICE MANUALS
1999-2000 Galant, Volume 2, pages 23A-155, 23A-156
2001 Galant, Volume 3, pages 23A-286, 23A-287
2002 Galant, Volume 3, pages 23A-298, 23A-299, 23A-300
1999-2000 Galant, Volume 2, page 23A-155. Replace the page with the service manual revision shown..
1999-2000 Galant, Volume 2, page 23A-156. Replace the page with the service manual revision shown..

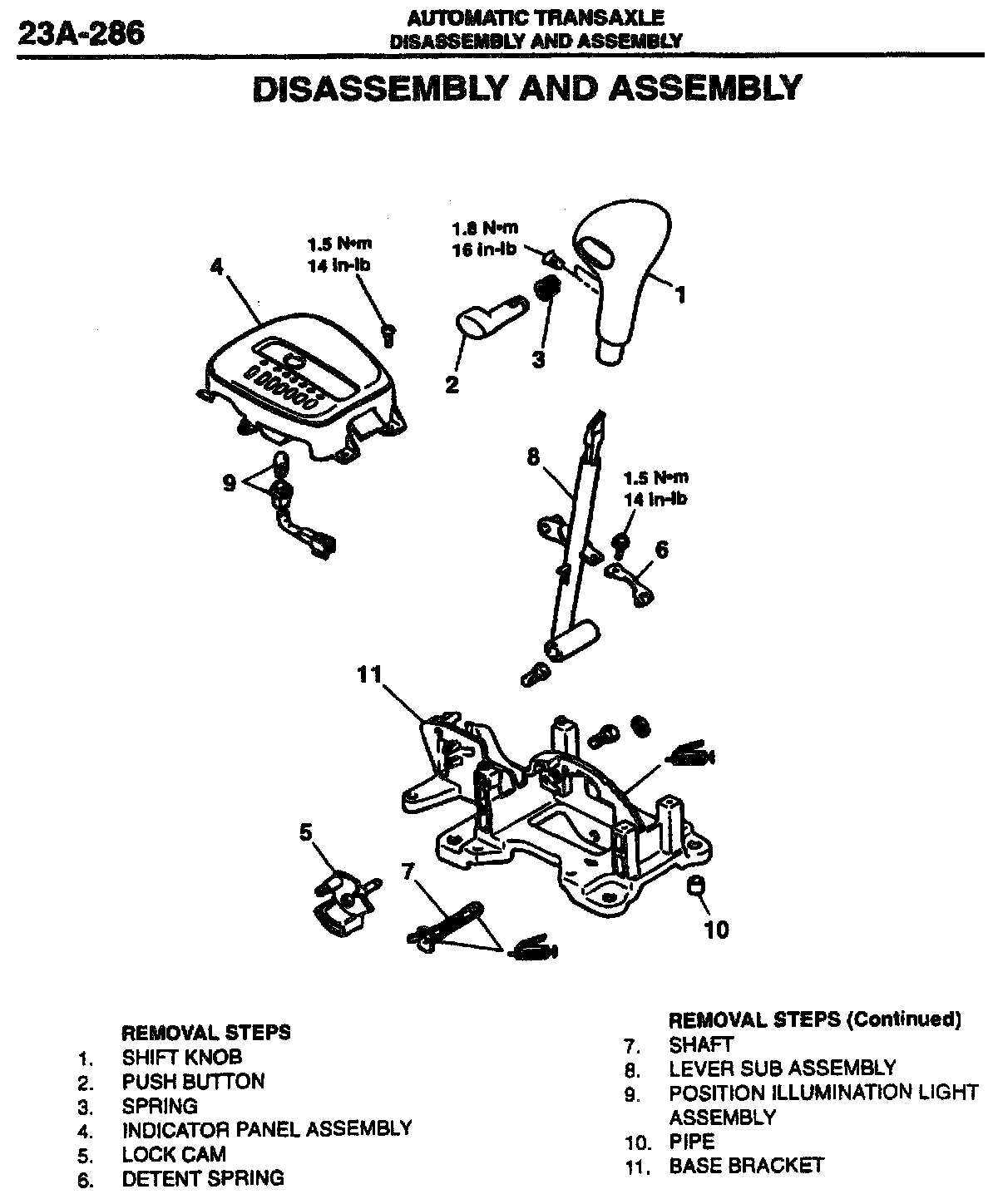

2001 Galant, Volume 3, page 23A-286. Replace the page with the service manual revision shown.
2001 Galant, Volume 3, page 23A-287. Replace the page with the service manual revision shown.

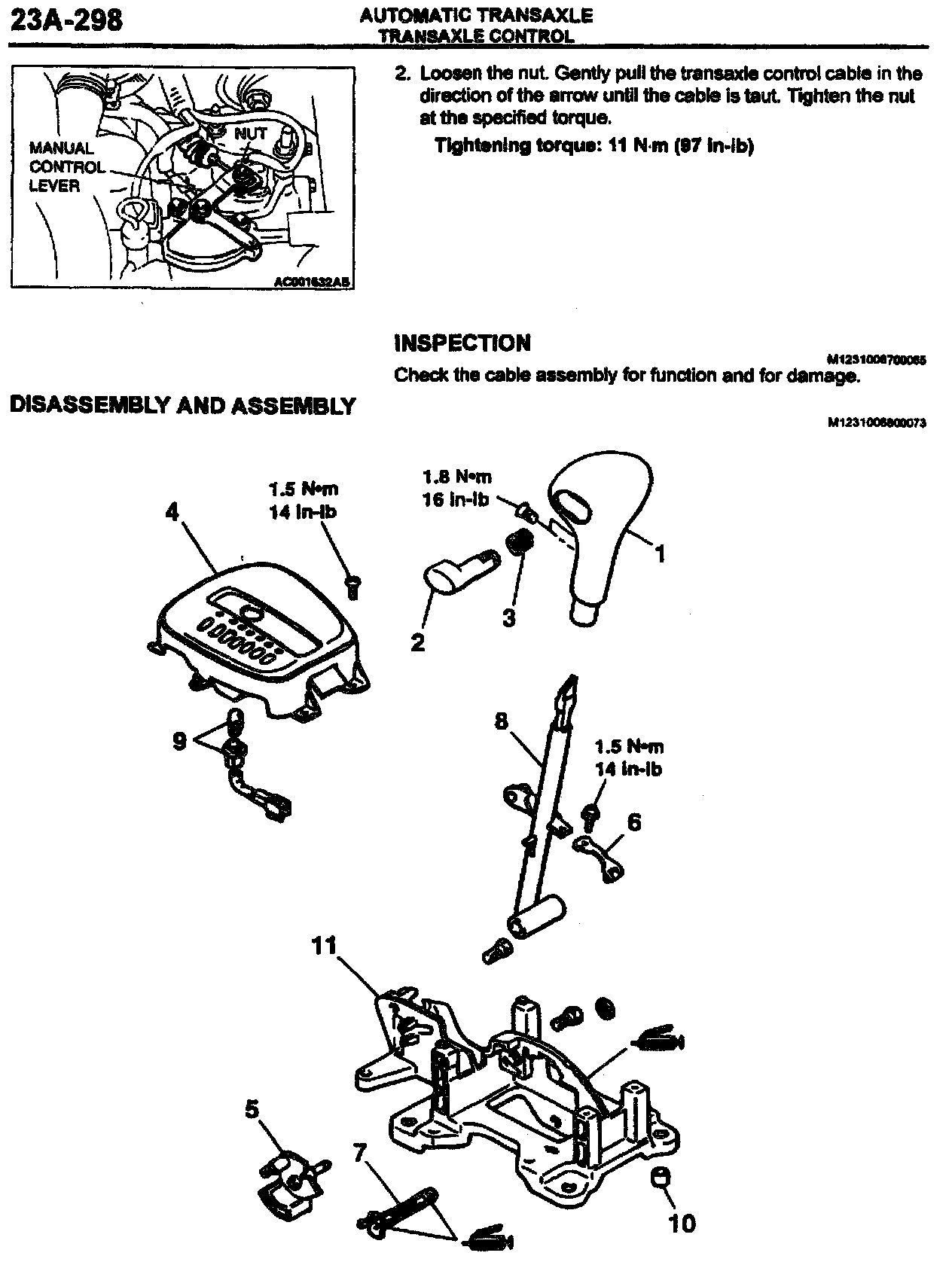

2002 Galant, Volume 3, page 23A-298. Replace the page with the service manual revision shown.
2002 Galant, Volume 3 page 23A-299. Replace the page with the service manual revision shown.
2002 Galant, Volume 3, page 23A-300. Replace the page with the service manual revision shown.
