Cruise Control - Troubleshooting Instructions

TSB-01-17-004

DATE: August, 2001

MODEL See below

SUBJECT:
CRUISE CONTROL TROUBLESHOOTING
- SERVICE MANUAL REVISION

PURPOSE

Troubleshooting instructions for cruise control system trouble code DTC 12, "Vehicle Speed Sensor System" are incorrect in the affected service manuals. This bulletin contains proper procedures for troubleshooting DTC 12.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

1999-01 Galant models equipped with cruise control

2000-2001 Eclipse and Eclipse Spyder models equipped with cruise control

AFFECTED SERVICE MANUALS

1999-2000 Galant. Volume 2, pages 17-14, 17-15, 17-16, 17-58
2001 Galant, Volume 2, pages 17-16, 17-17, 17-18, 17-69
2000 Eclipse, Volume 2, pages 17-15 through 17-20, 17-63
2001 Eclipse Spyder, Volume 2, pages 17-14, 17-16 through 17-19, 17-60
2001 Eclipse/Eclipse Spyder, Volume 2, pages 17-18, 17-75

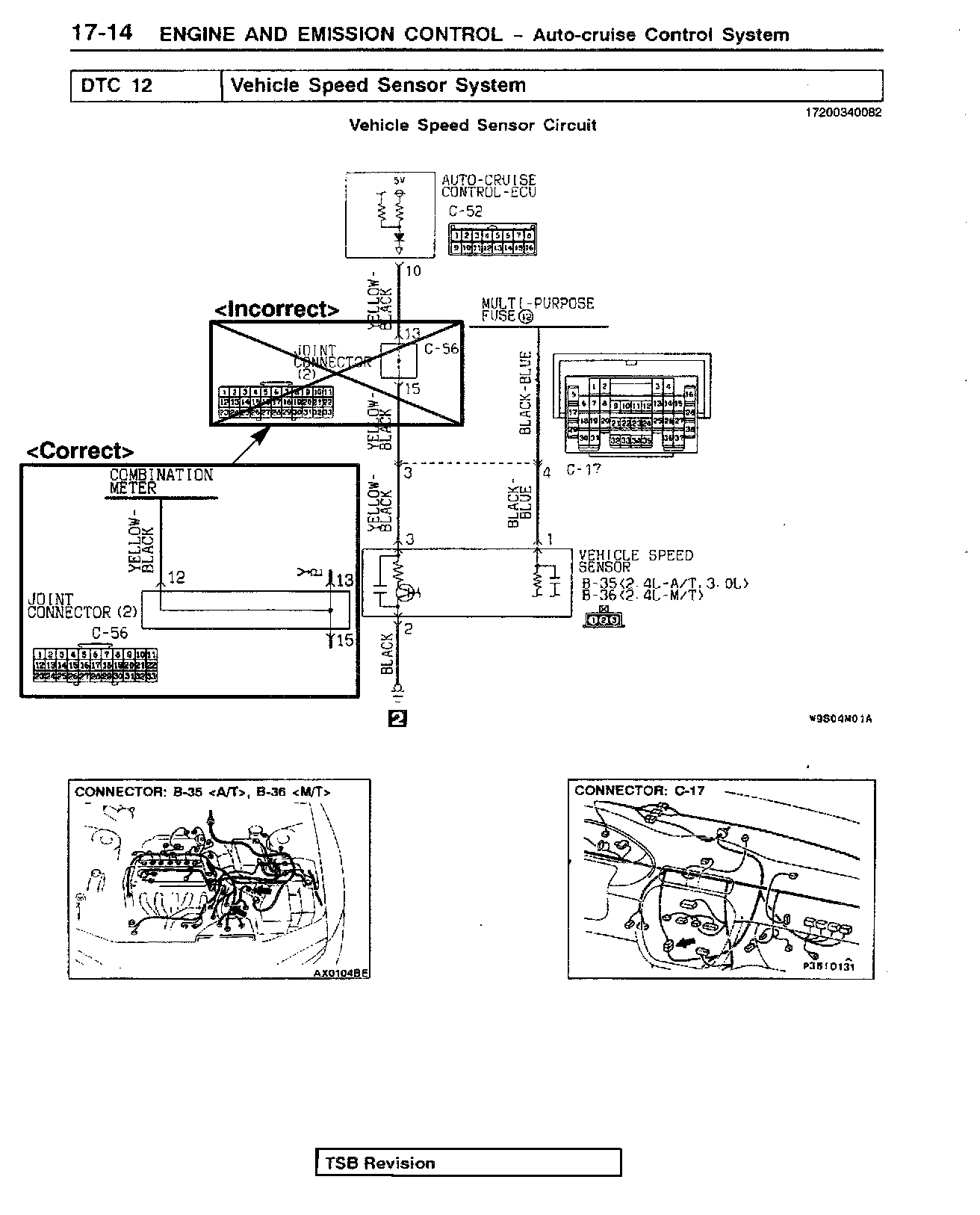

1999-2000 Galant, Volume 2, page 17-14

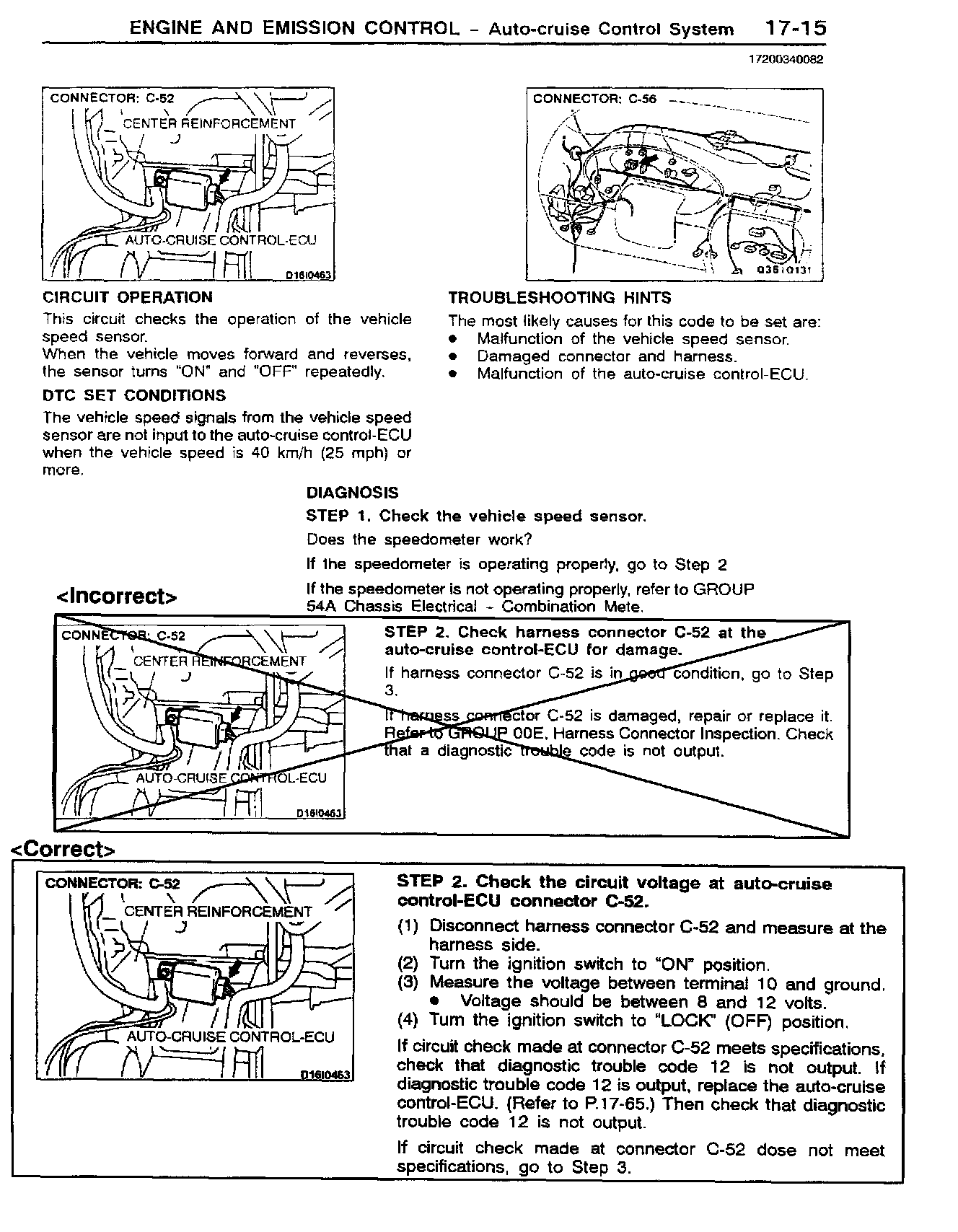

1999-2000 Galant, Volume 2, page 17-15

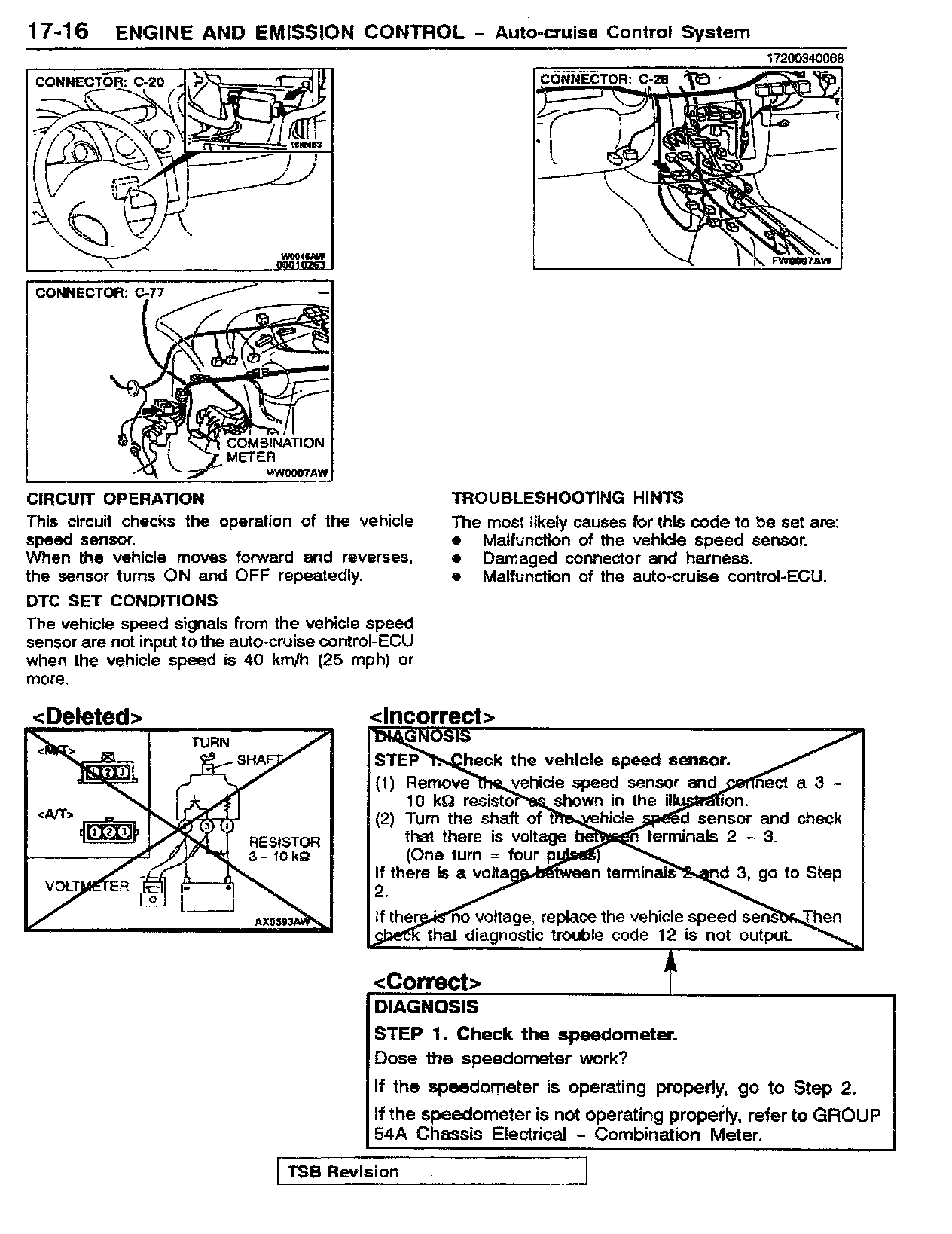

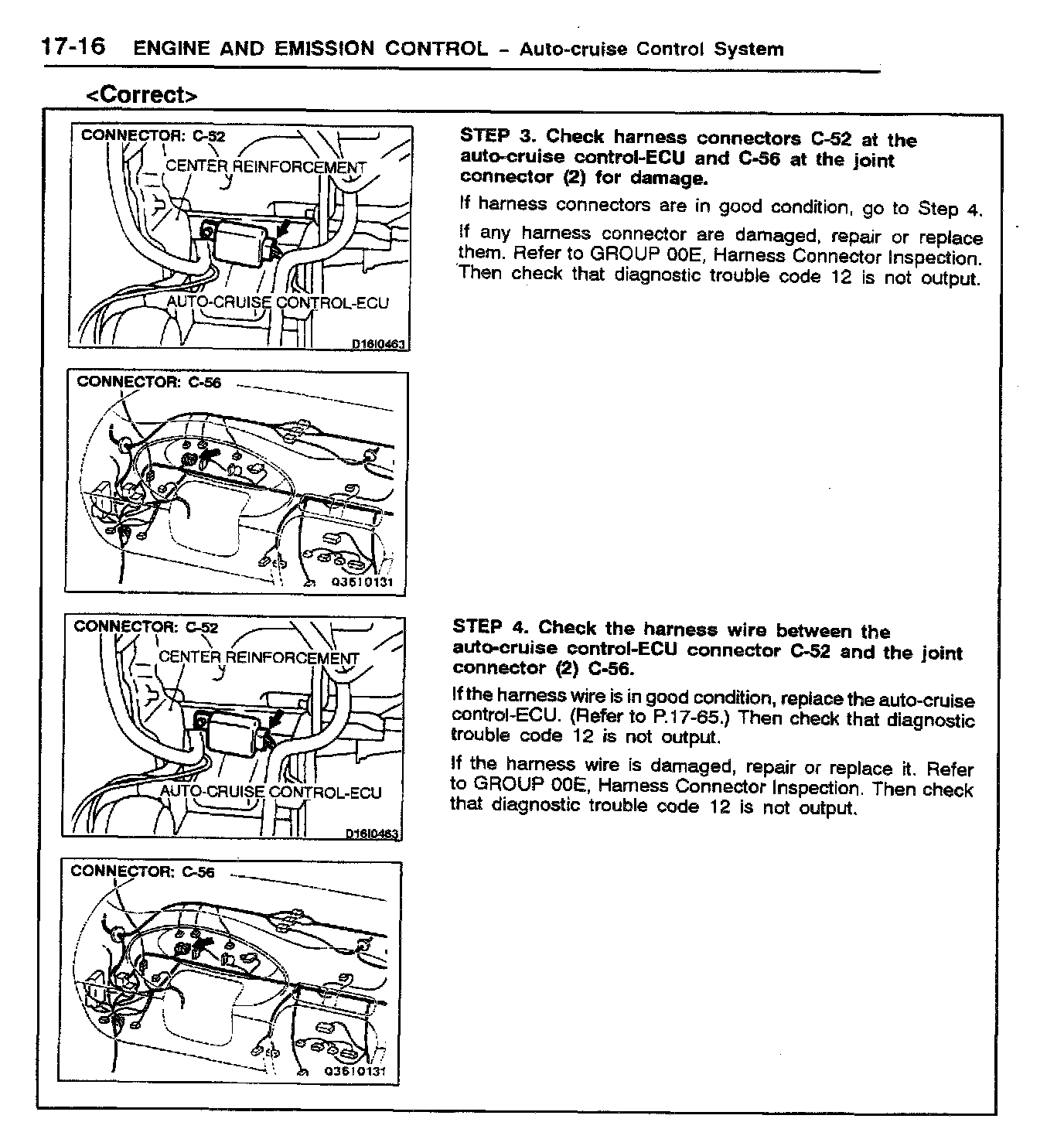

1999-2000 Galant, Volume 2, page 17-16. Replace the entire page with the illustration.

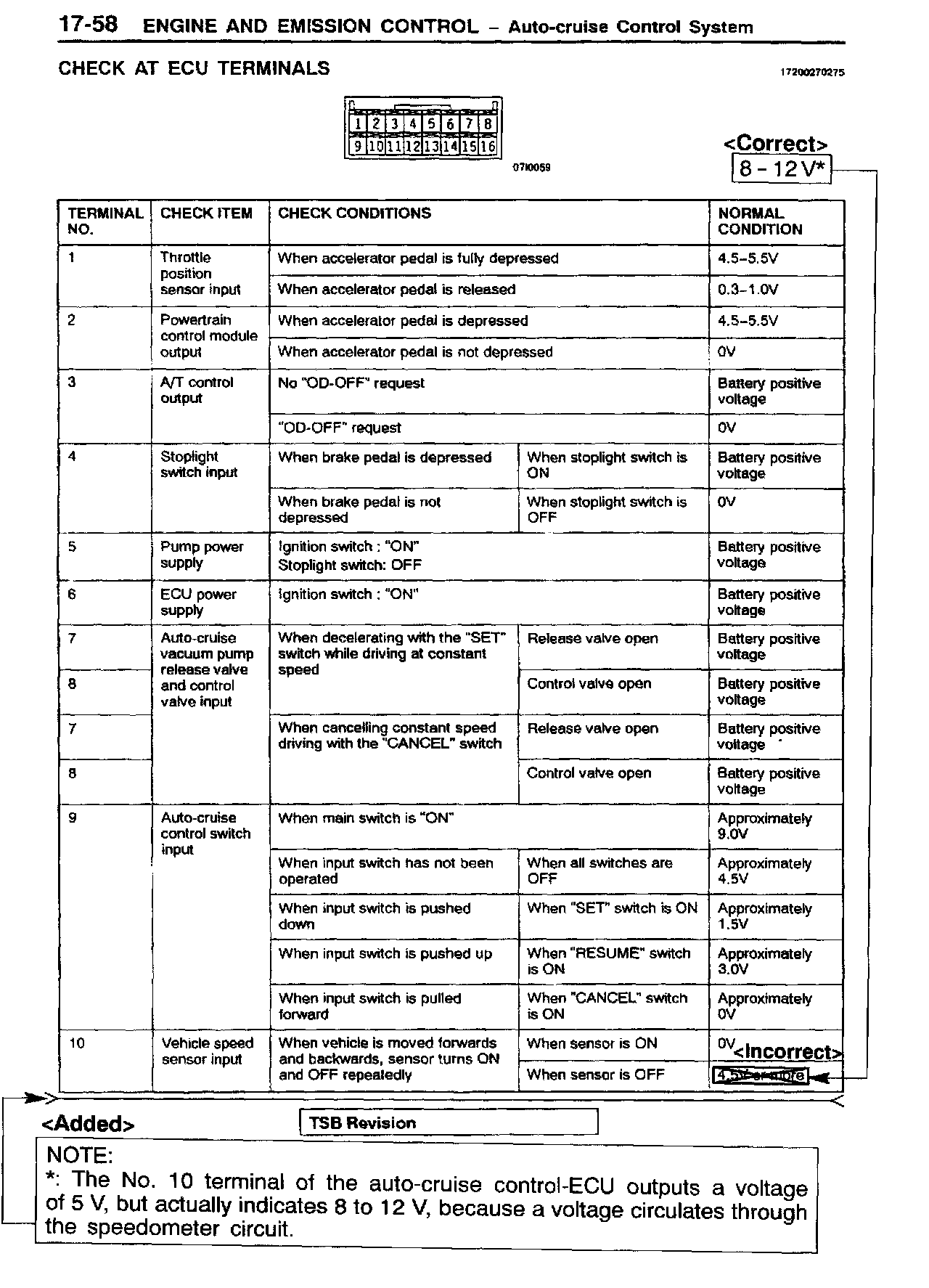

1999-2000 Galant, Volume 2, page 17-58

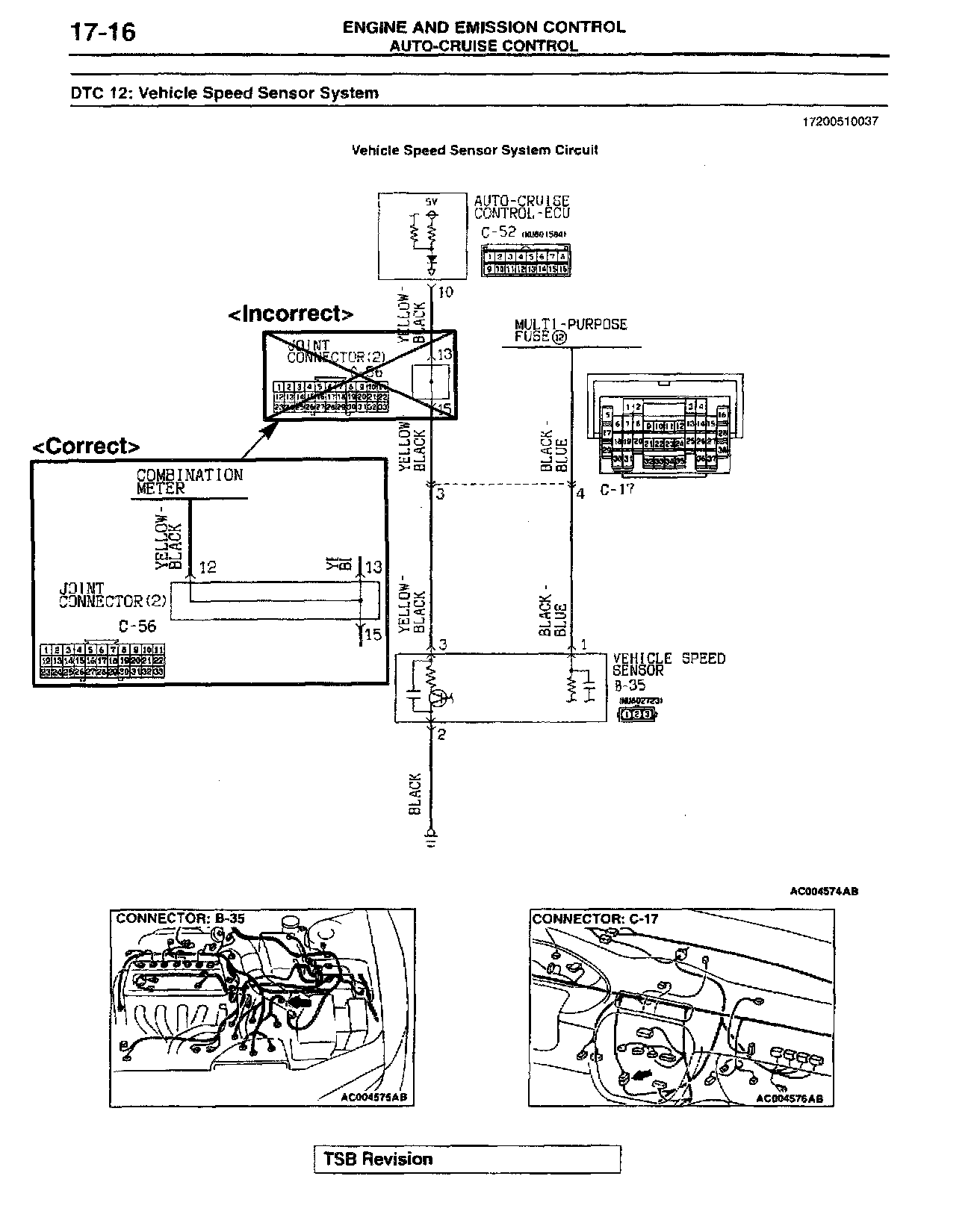

2001 Galant, Volume 2, page 17-16





2001 Galant, Volume 2, page 17-17

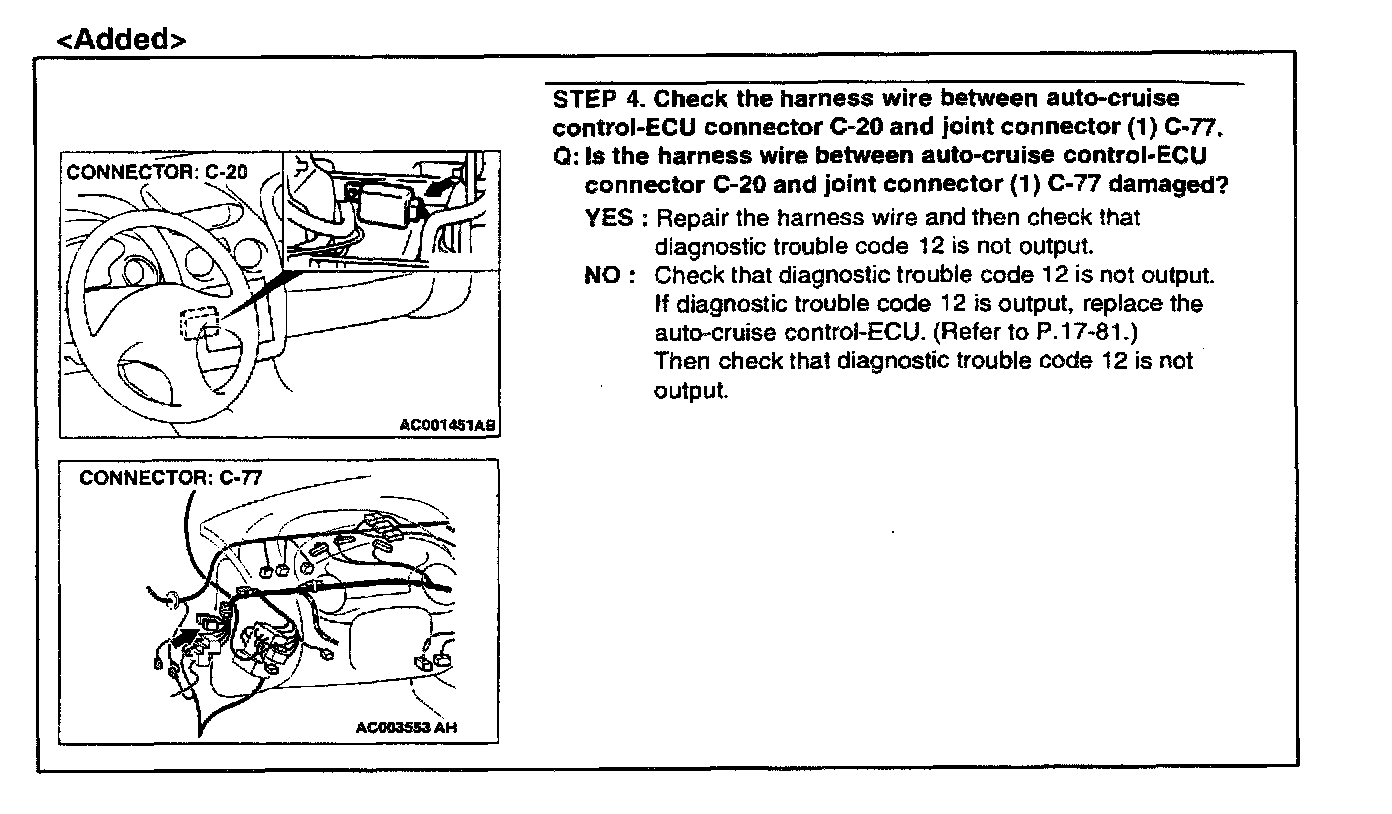

2001 Galant, Volume 2, page 17-17. Replace Step 2 with the new information shown.

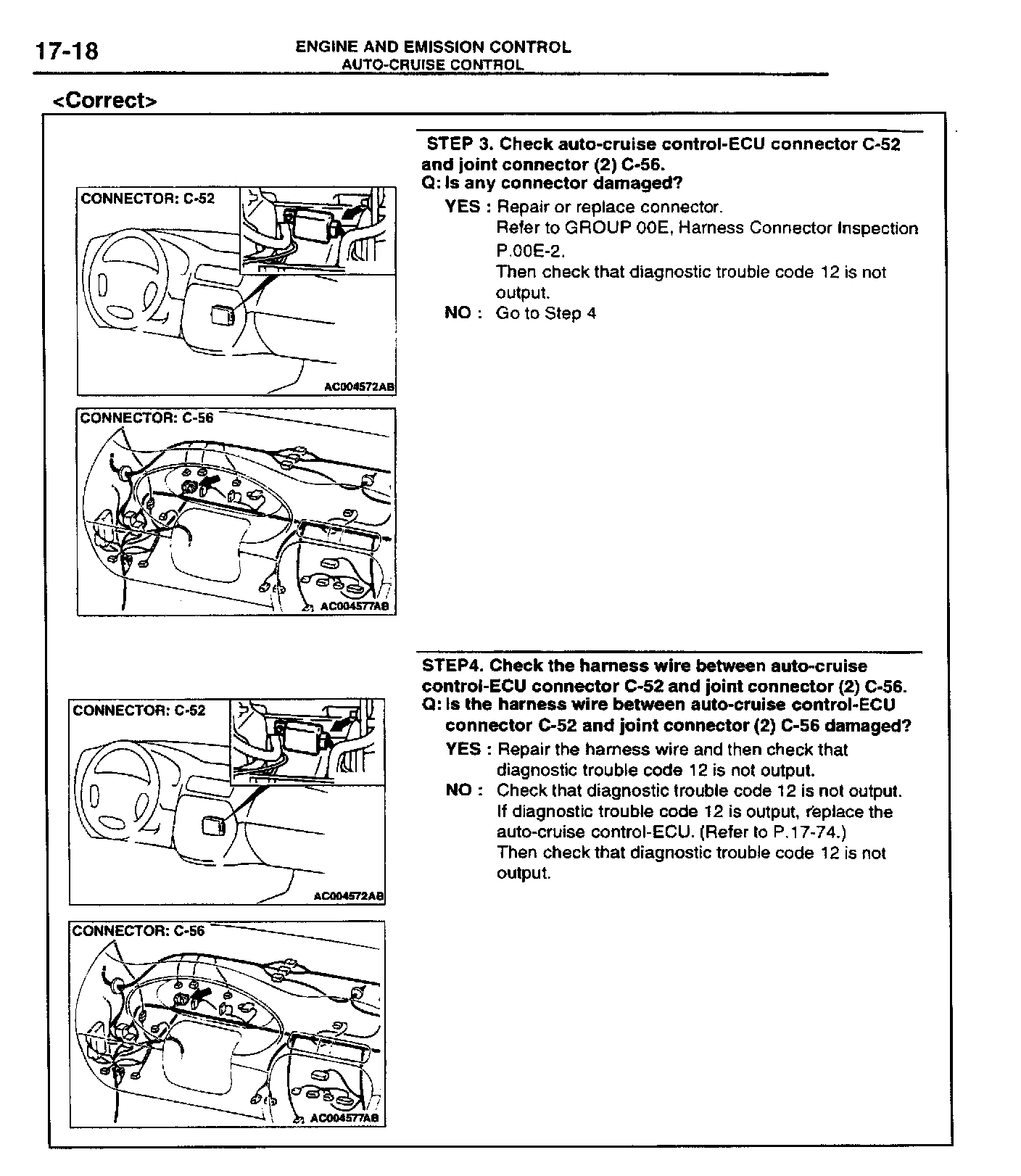

2001 Galant, Volume 2, page 17-18. Replace the entire page with the illustration.





2001 Galant, Volume 2, page 17-69

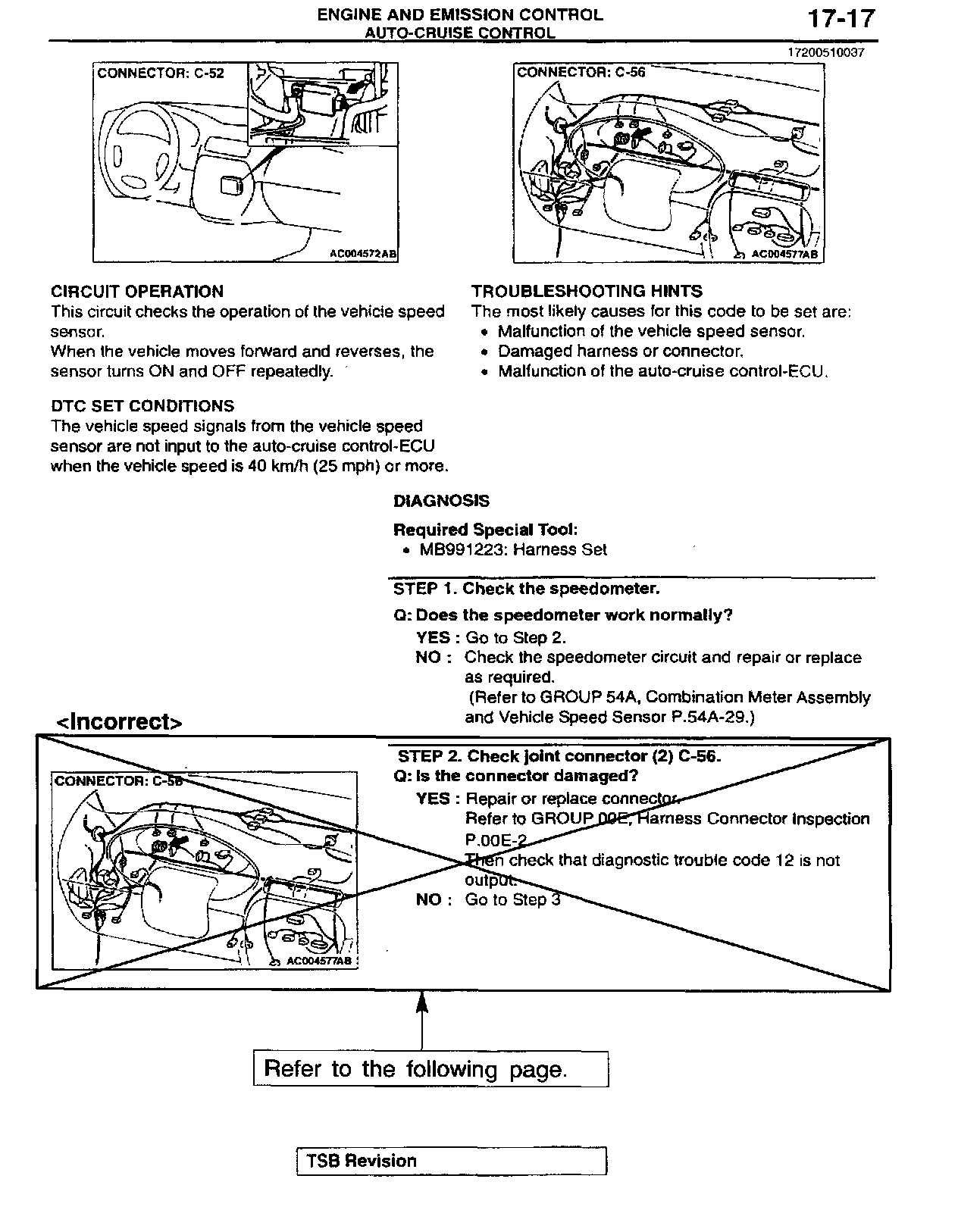

2000 Eclipse Volume 2 page 17-15





2000 Eclipse, Volume 2, page 17-16





2000 Eclipse, Volume 2, page 17-17. Replace the entire page with the illustration.

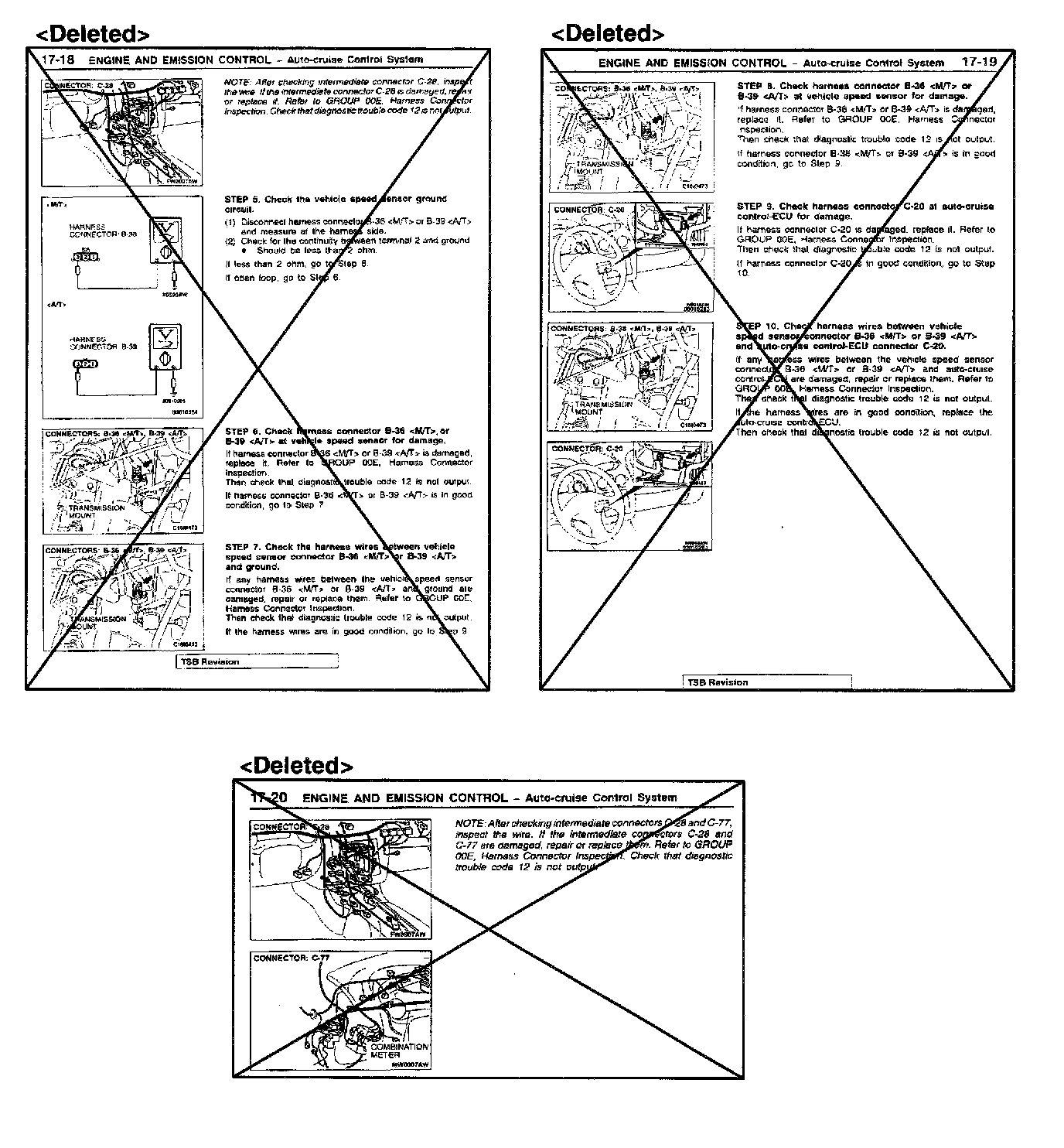

2000 Eclipse, Volume 2, pages 17-18, 17-19, and 17-20. Delete these pages with no replacement.





2000 Eclipse, Volume 2, page 17-63

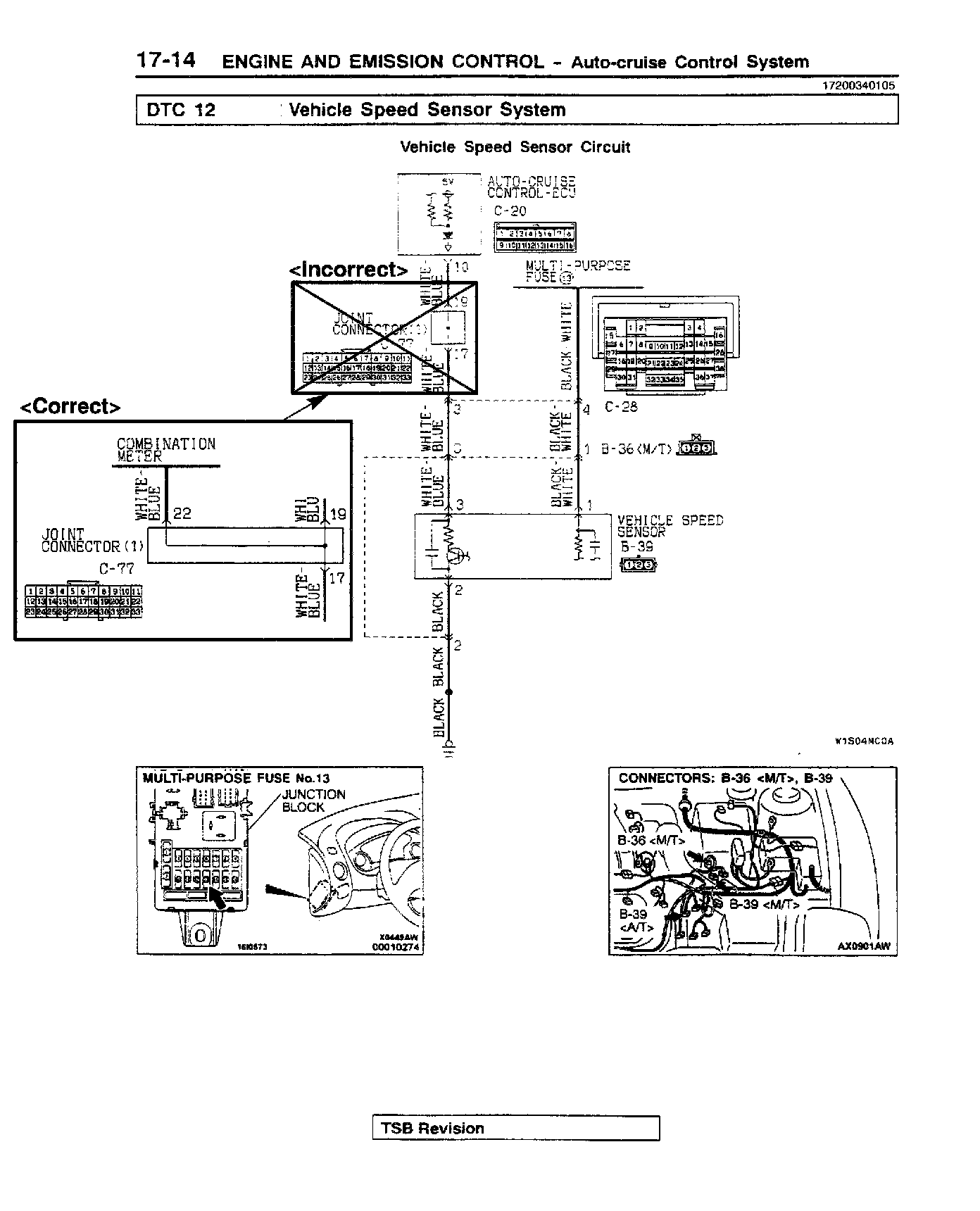

2001 Eclipse Spyder, Volume 2, page 17-14

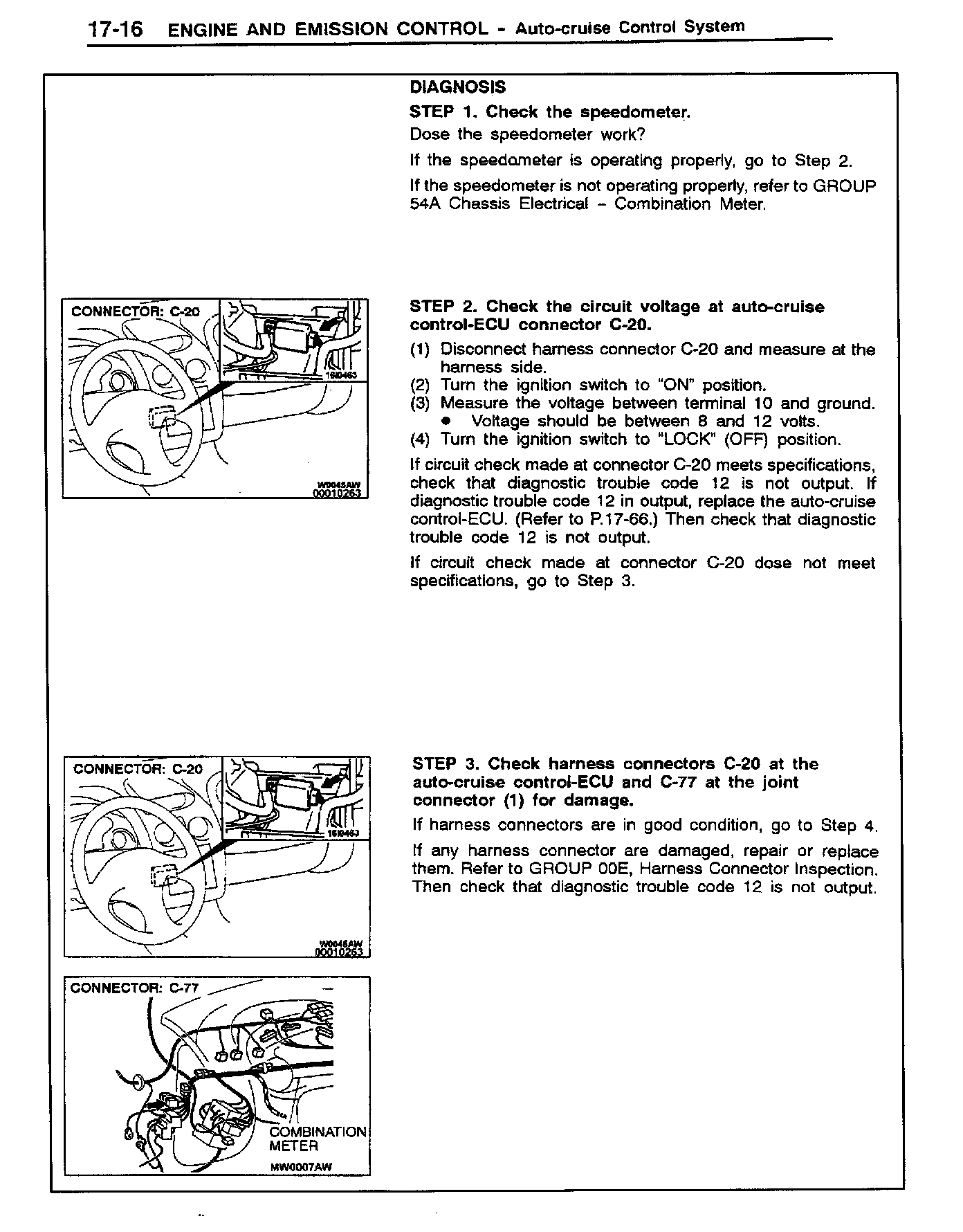

2001 Eclipse Spyder, Volume 2, page 17-16. Replace the entire page with the illustration.

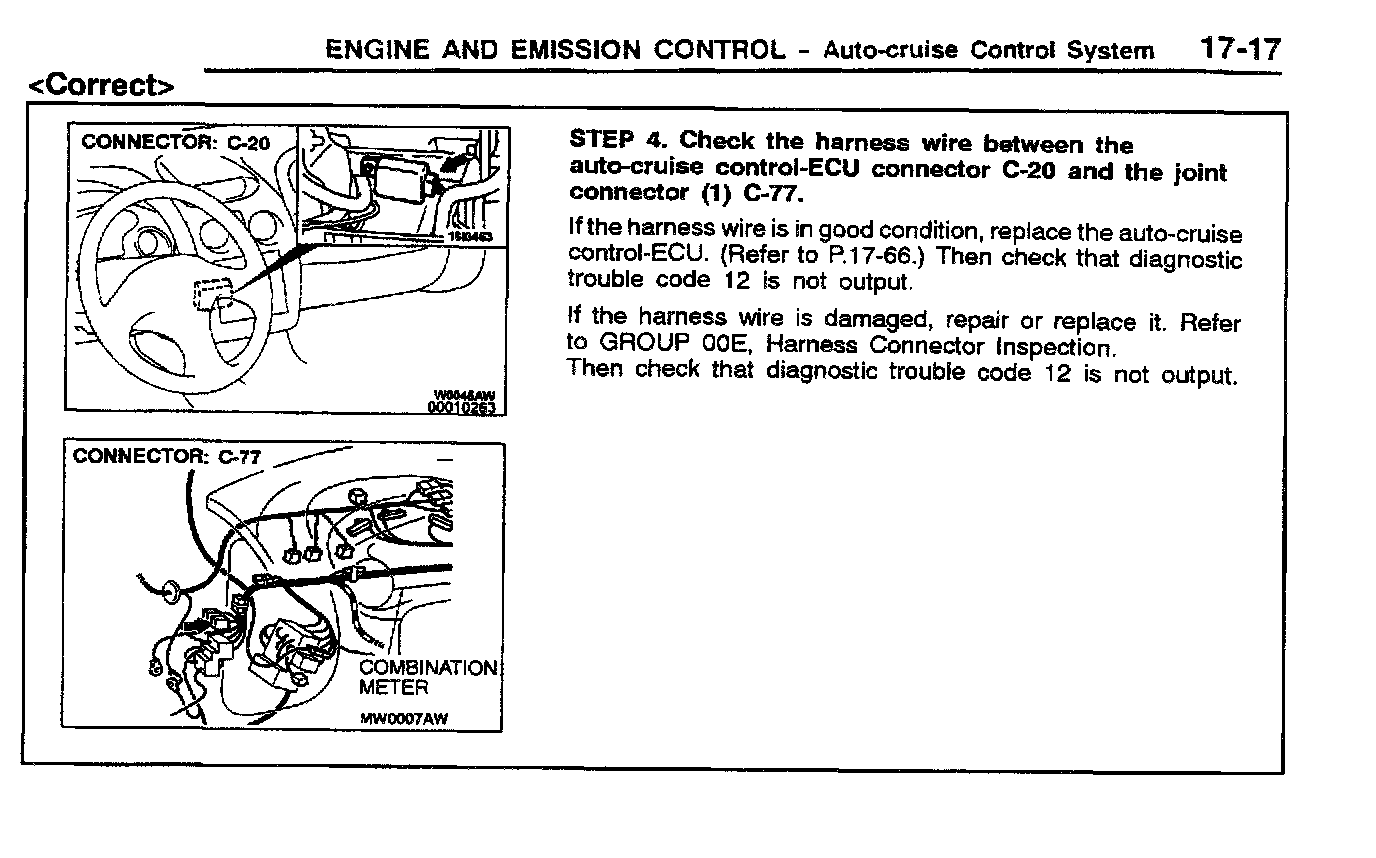

2001 Eclipse Spyder, Volume 2, page 17-17. Replace the entire page with the illustration.

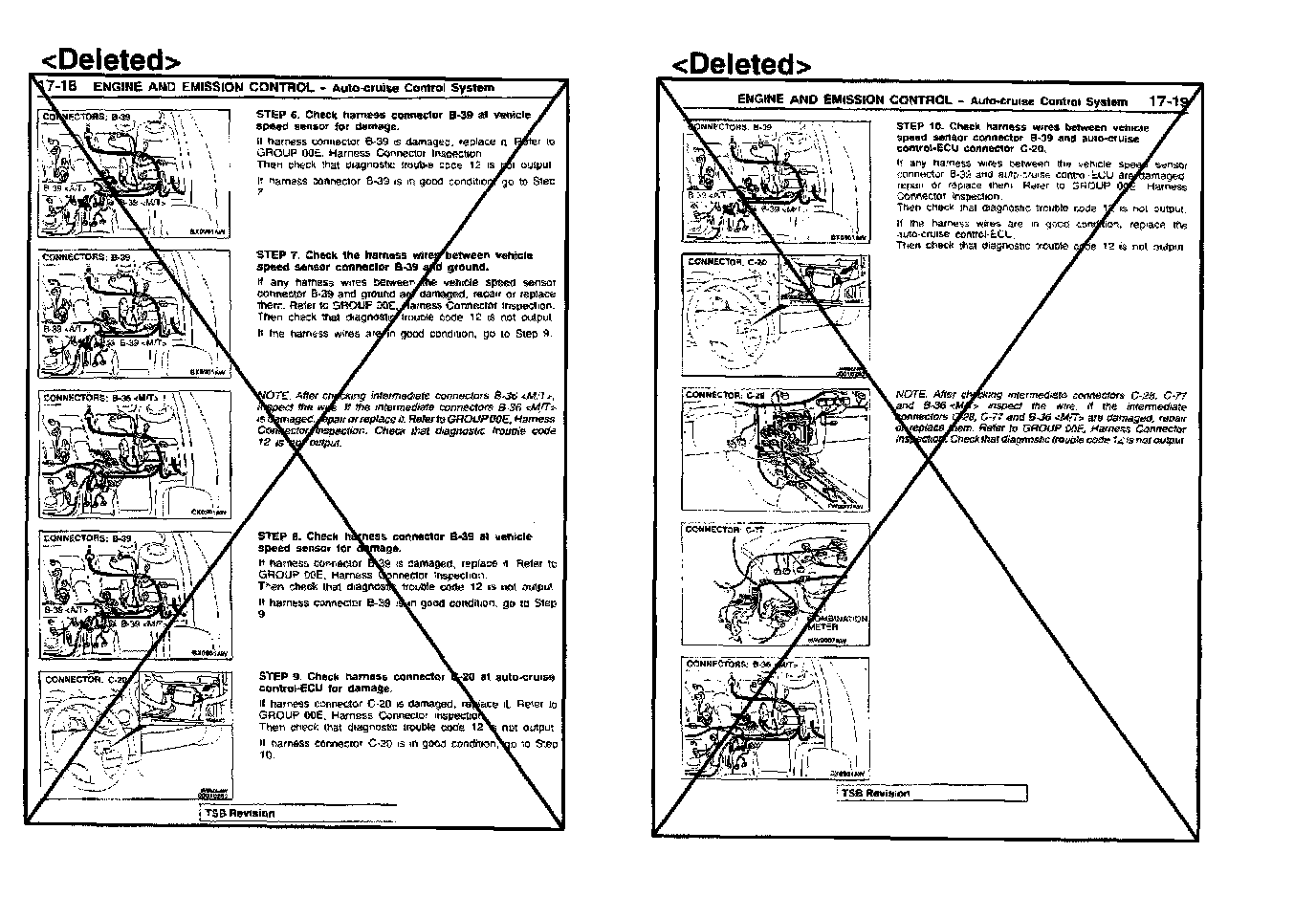

2001 Eclipse Spyder, Volume 2, pages 17-18 and 17-19. Delete these pages with no replacement.





2001 Eclipse Spyder, Volume 2, page 17-60

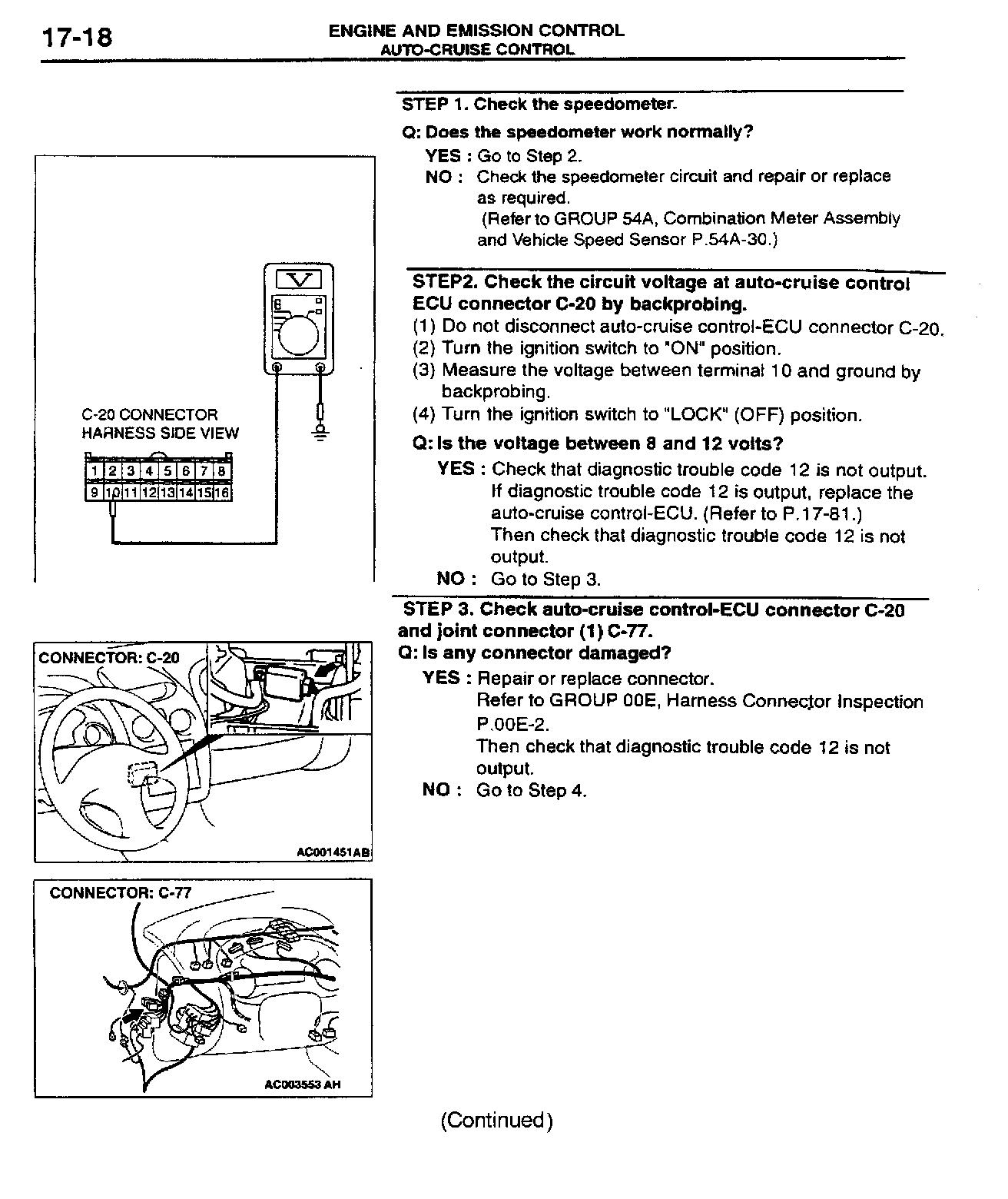

2001 Eclipse/Eclipse Spyder, Volume 2, page 17-18. Replace the entire page with the illustration.





2001 Eclipse/Eclipse Spyder, Volume 2, page 17-18 (continued)

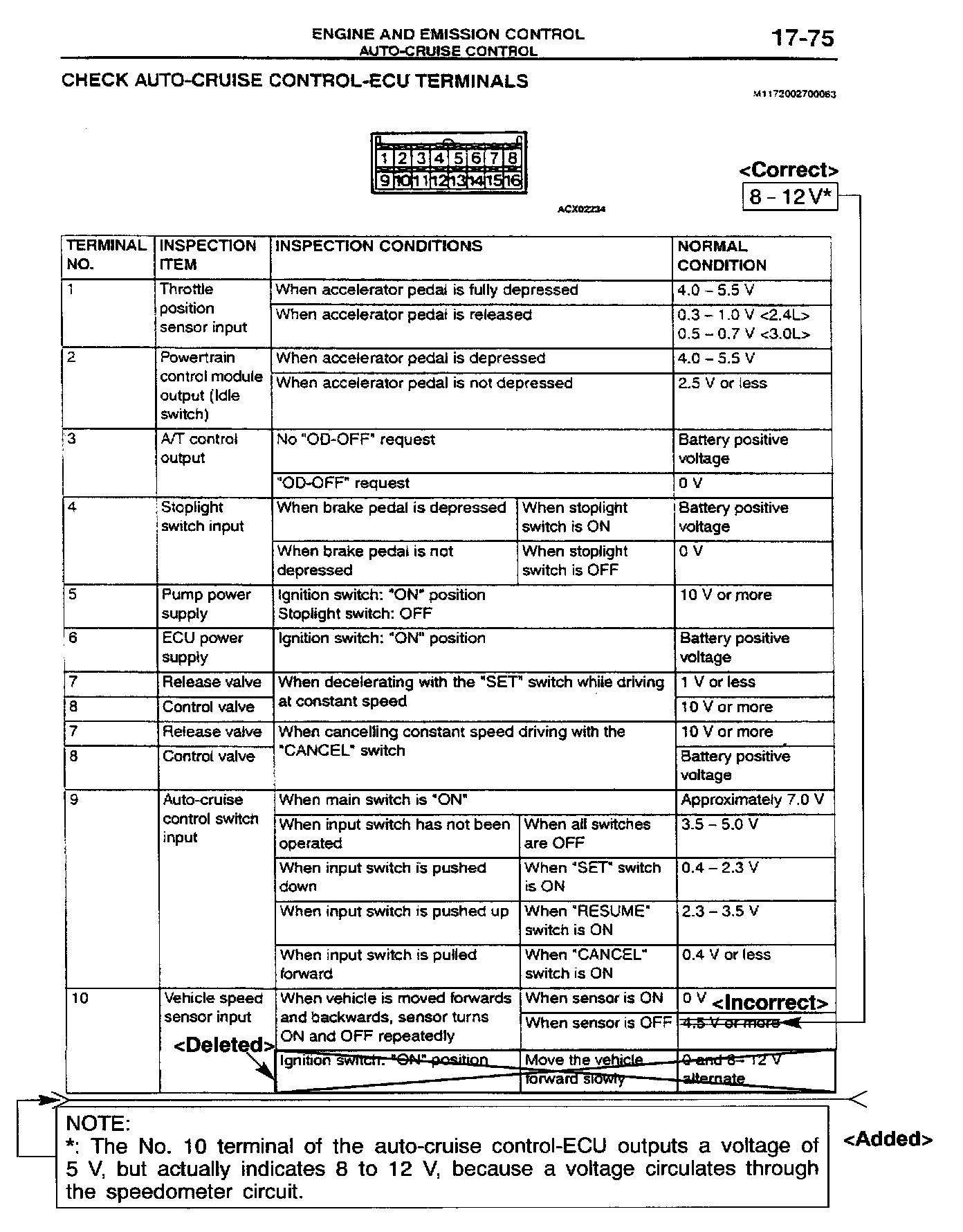

2001 Eclipse/Eclipse Spyder, Volume 2, page 17-75
