Electrical - Corrected Fog Lamp Circuit Diagrams
NO.: TSB-06-54-013DATE: December, 2006
MODEL: 1999-2001 Galant
SUBJECT:
CORRECTED FOG LIGHT CIRCUIT DIAGRAMS - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains corrected circuit diagrams for the fog lights.
AFFECTED VEHICLES
1999-2001 Galant
AFFECTED SERVICE MANUAL
1999-2000 Galant Service Manual, pages 90-152, 156
2001 Galant Service Manual, Pages 90-70, 71

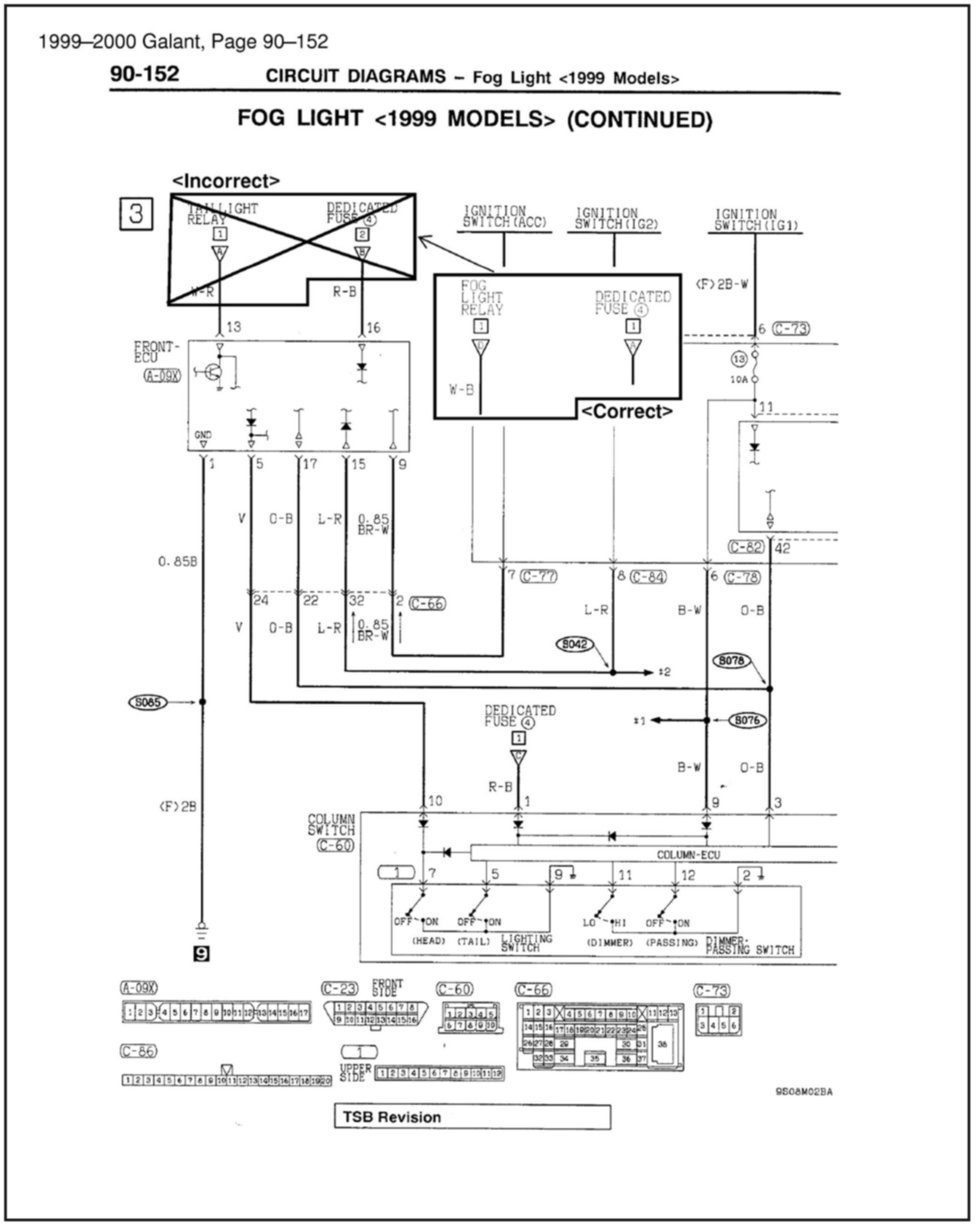

Page 90-152

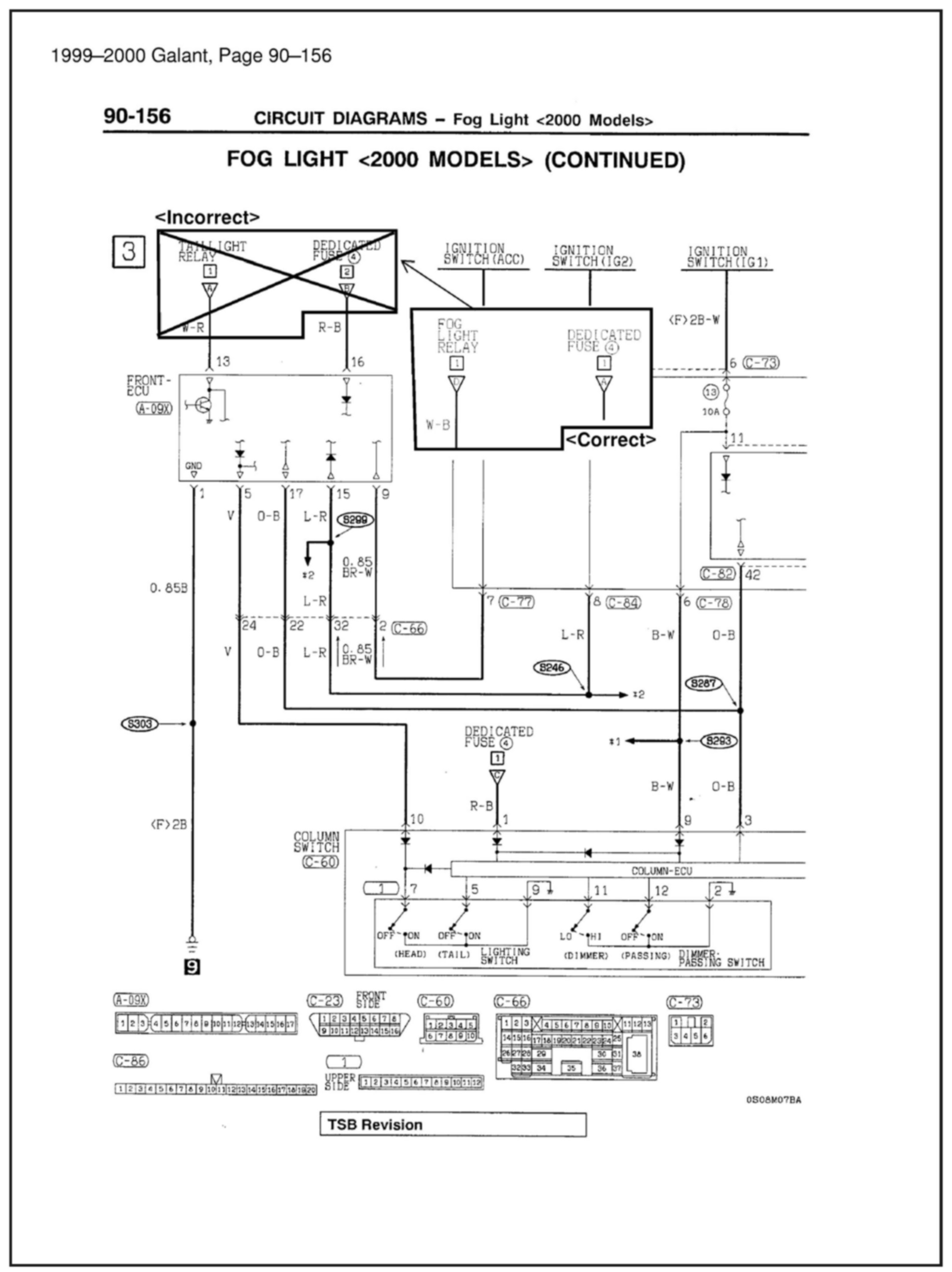

Page 90-156

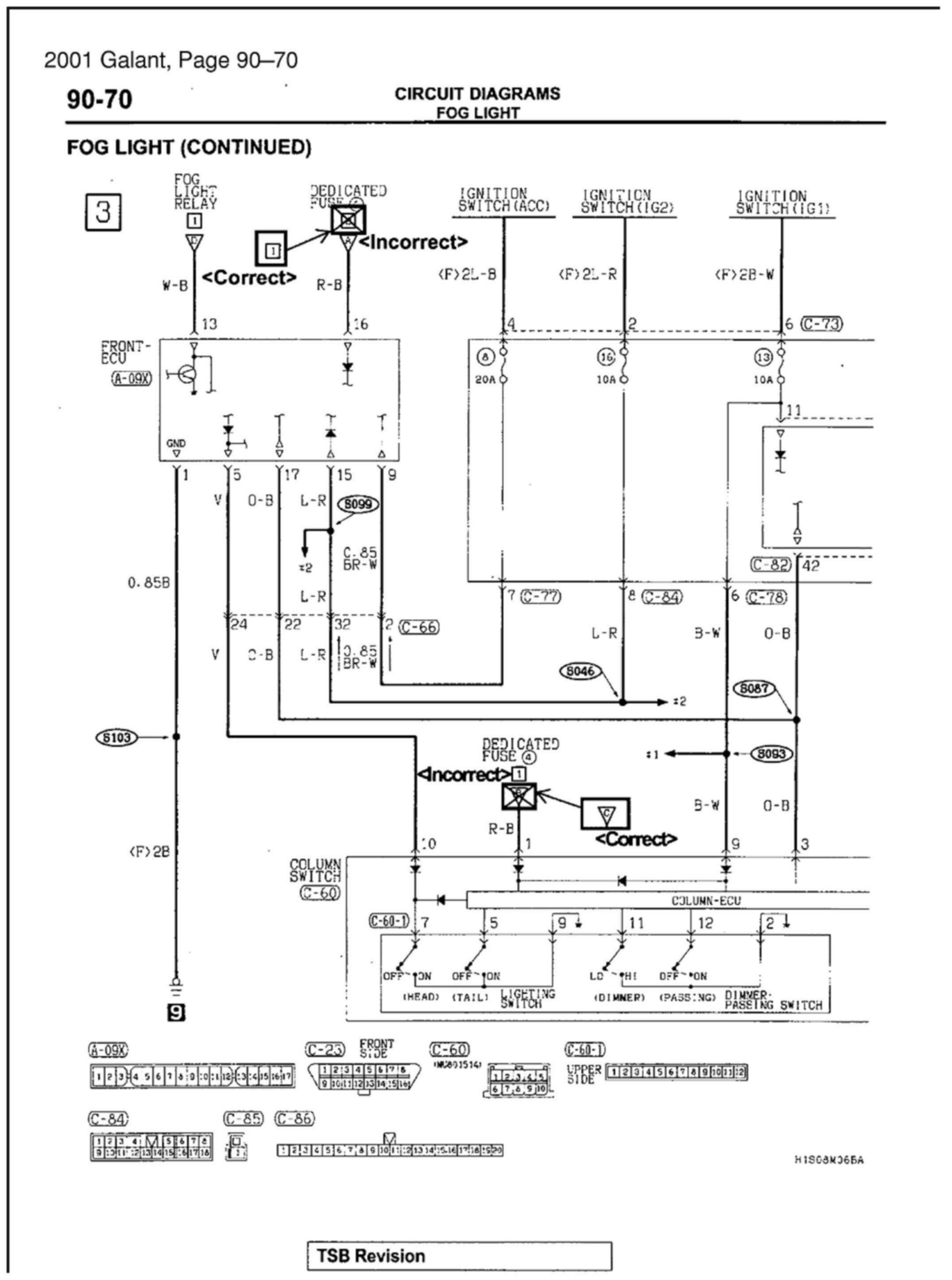

Page 90-70

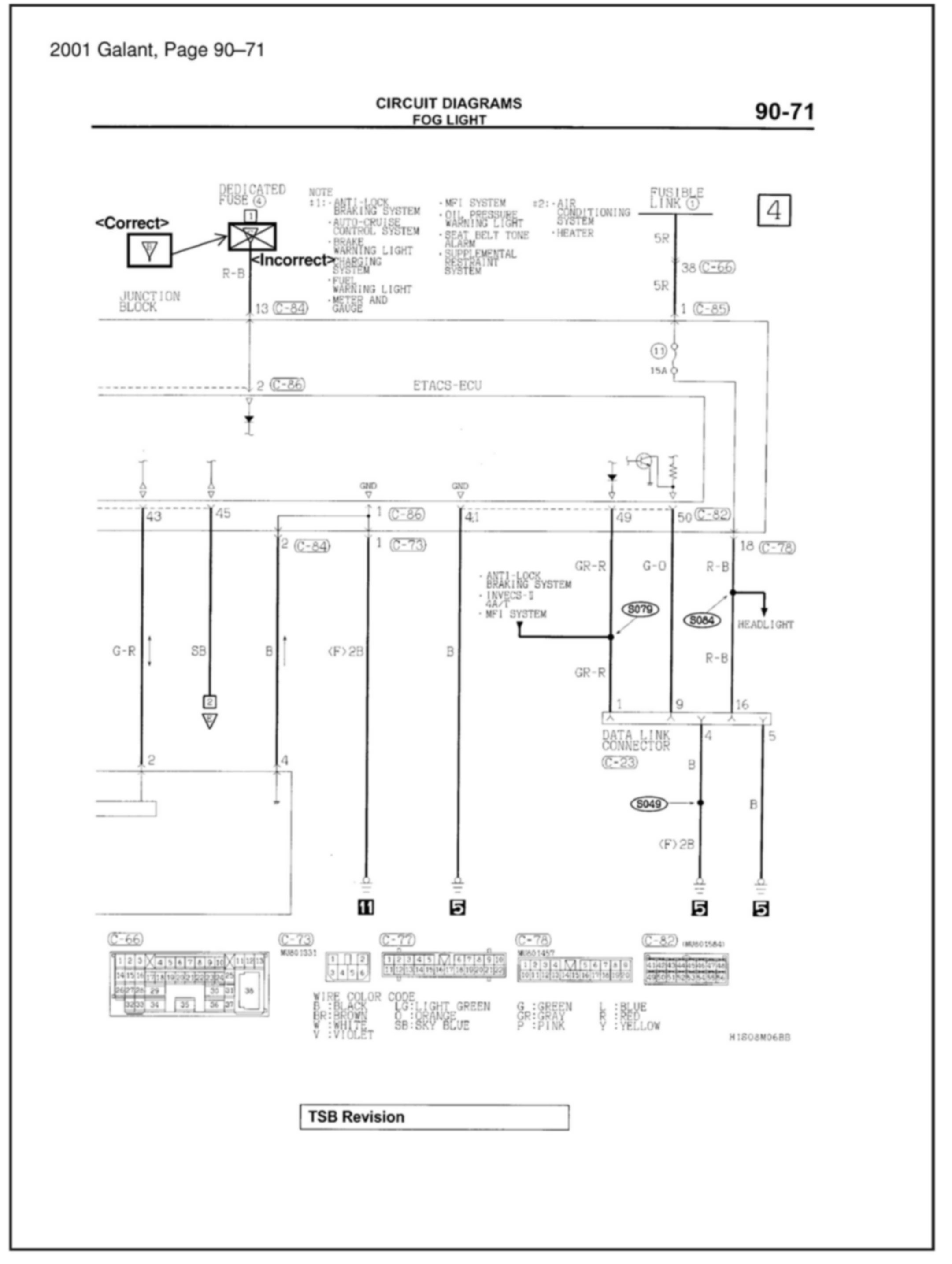

Page 90-71
SERVICE MANUAL REVISION
