Engine Controls - Vacuum Diagram Revisions
No.: TSB-03-17-002DATE: March, 2003
MODEL: 1999-2003 Galant
SUBJECT:
CORRECTED VACUUM HOSE ROUTING DIAGRAMS
(GALANT) - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains corrected vacuum hose routing diagrams.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1999-2003 Galant
AFFECTED SERVICE MANUAL
1999-2000 Galant Service Manual, Volume 2, Pages 17-68, 70
2001 Galant Service Manual, Volume 2, Pages 17-78, 80
2002 Galant Service Manual, Volume 2, Pages 17-80, 82
2003 Galant Service Manual, Pages 17-92, 94
SERVICE MANUAL REVISIONS
1999-2000 Galant Service Manual, Volume 2, Page 17-68

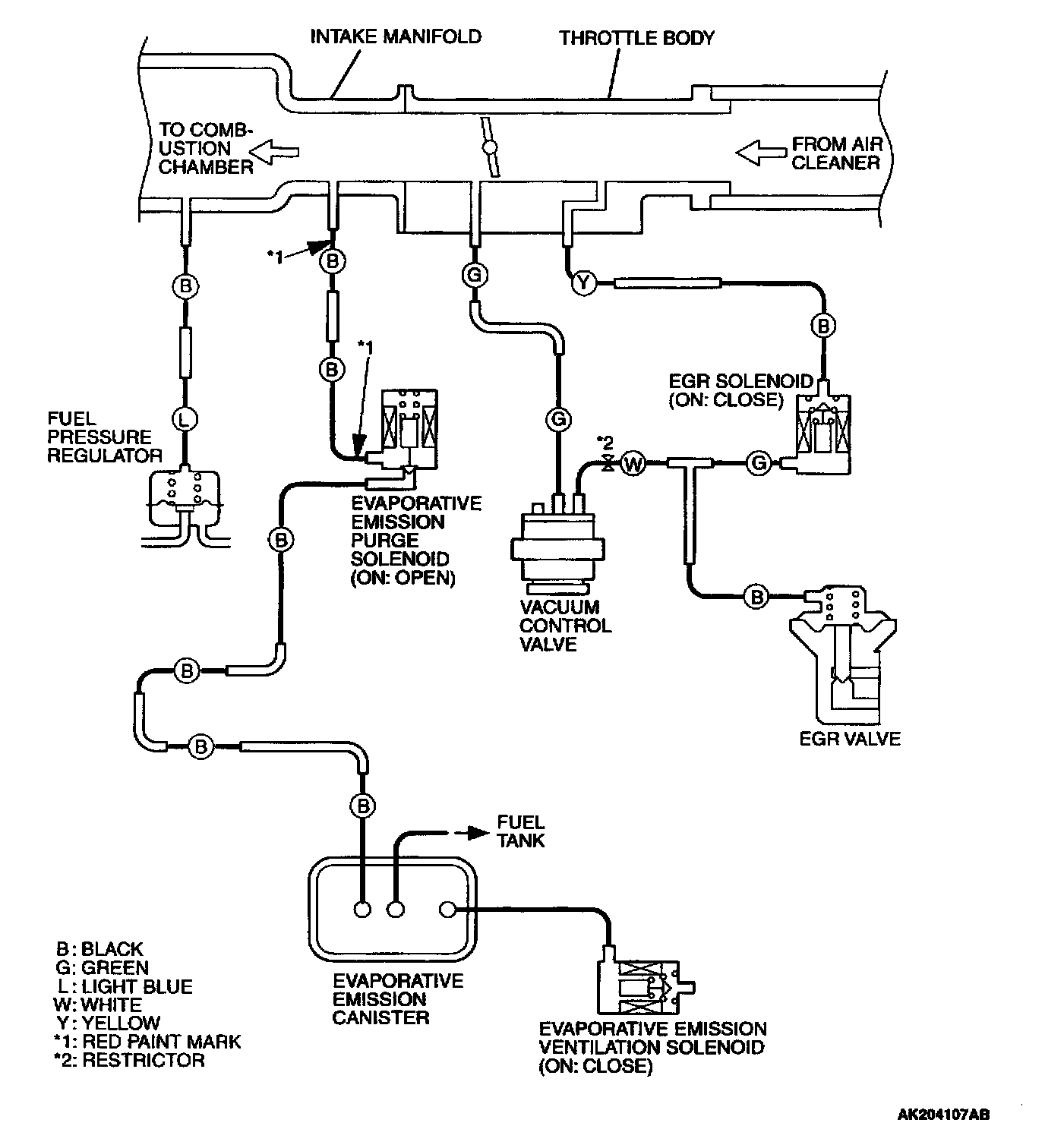

Revise page 17-68 as shown, and add the new vacuum diagram (Attachment A).
1999-2000 Galant Service Manual, Volume 2, Page 17-68
Add Attachment "A" to the indicated area on page 17-68.
1999-2000 Galant Service Manual, Volume 2, Page 17-70
Revise page 17-70 as shown, and add the new vacuum diagram (Attachment "B").
1999-2000 Galant Service Manual, Volume 2, Page 17-70
Add Attachment "B" to the indicated area on page 17-70.
2001 Galant Service Manual, Volume 2, Page 17-78
2002 Galant Service Manual, Volume 2, Page 17-80
2003 Galant Service Manual, Page 17-92
Delete the vacuum hose routing diagram on the pages listed above and replace it with the new diagram shown.
2001 Galant Service Manual, Volume 2, Page 17-80
2002 Galant Service Manual, Volume 2, Page 17-82
2003 Galant Service Manual, Page 17-94
Delete the vacuum hose routing diagram on the pages listed above and replace it with the new diagram shown.
