Recall - Vehicle Emission Control Label Incorrect: Overview

NO.: SC-99-001
DATE: December, 1999
MODEL: 2000 Galant

SUBJECT:
VEHICLE EMISSION CONTROL INFORMATION (VECI) LABEL SERVICE CAMPAIGN

PURPOSE
The Vehicle Emission Control Information Label (VECI) on a limited number of 2000 model year California LEV emissions certified Galant vehicles equipped with the 3.0L V6 engine is incorrect and must be changed. A letter, with label enclosed, is being sent to all owners of affected vehicles instructing them to install the VECI label themselves. A copy of the customer notification letter is included with this bulletin. Vehicle owners who do not want to install the label are advised to ask their Mitsubishi Motors dealer to install the label at no charge.

Dealers with unsold affected vehicles in inventory must install a new label on each of these vehicles. Dealers who have affected vehicles in inventory will receive with this bulletin, a list of these vehicles and a supply of labels for these unsold units.

AFFECTED VEHICLES
2000 Galant 3.0L V6 California [CA LEV] emissions vehicles

LABEL INSTALLATION

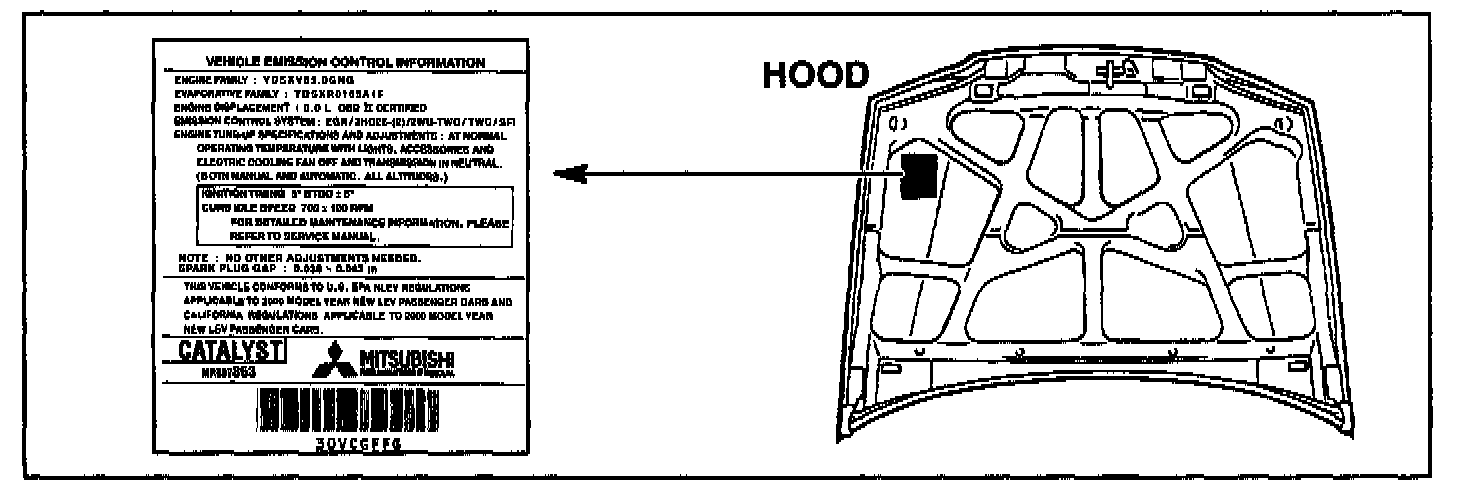

1. Open the hood, locate the VECI label, and inspect the part number listed on the label.

a. If the part number is NOT MR507863, proceed with step 2 and install the new label.

b. It the part number is MR507863, the label is correct and does not require replacement.

2. Clean the old label thoroughly of all dirt and residue.

3. Carefully peel the backing strip from the new label and apply over the existing label.

PARTS INFORMATION

Description Part Number
Vehicle Emission Control MR507863
Information Label

All customers will receive one label along with their notification letter. Dealers who have unsold affected vehicles in inventory will receive a list of these vehicles and a supply of replacement labels with this bulletin.

If a customer misplaces or loses the label or if additional labels are needed for unsold inventory vehicles, replacements can be obtained by calling D. Bolton in the MMSA Technical Compliance Dept. at 714-372-6193.

WARRANTY INFORMATION

NONE - Do not submit Recall or Warranty claims for this campaign.
