Sunroof - Changed Sunroof Water Test
No: TSB-00-42A-007DATE: September, 2000
MODEL: See Below
SUBJECT :
CHANGED SUNROOF WATER TEST AND FIT ADJUSTMENT PROCEDURES - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains revised details for the following sunroof related service manual topics:
^ Sunroof water test procedures
^ Sunroof fit adjustment procedures
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2000 Eclipse
2000 Galant
1997-2000 Mirage
1997-2000 Montero Sport
AFFECTED SERVICE MANUALS
2000 Eclipse Service Manual, Volume 3, Page 42-77
2000 Galant Service Manual, Volume 3, Pages 42-89 & 42-90
1997 Mirage Service Manual, Volume 1, Page 42-46
1998, 1999, & 2000 Mirage Service Manuals, Volume 2, Page 42-46
1997 Montero Sport Service Manual, Volume 2, Page 42-58
1998 Montero Sport Service Manual, Volume 2, Page 42-64
1999 Montero Sport Service Manual, Volume 2, Page 42-65
2000 Montero Sport Service Manual, Volume 3, Page 42-85
SERVICE MANUAL REVISIONS

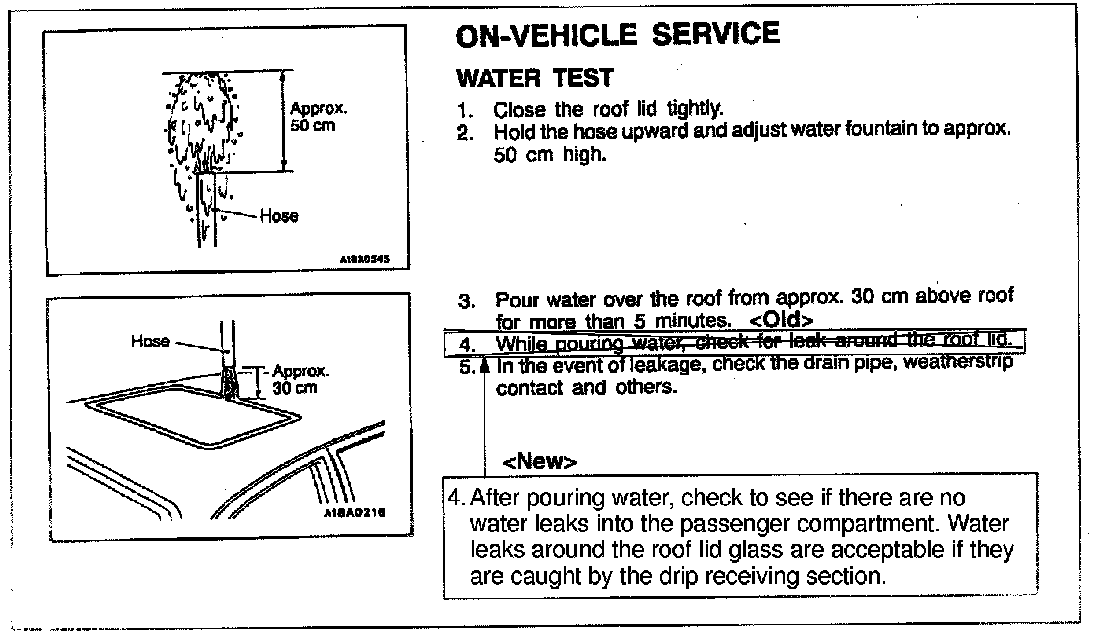

2000 Eclipse Service Manual, Volume 3, Page 42-77
1999-2000 Galant Service Manual, Volume 3, Page 42-89
1997 Montero Sport Service Manual, Volume 2, Page 42-58
1998 Montero Sport Service Manual, Volume 2, Page 42-64
1999 Montero Sport Service Manual, Volume 3, Page 42-65
2000 Montero Sport Service Manual, Volume 3, Page 42-85
Revise the water test information in step 4 on each indicated service manual page as shown below:
1997 Mirage Service Manual, Volume 1, Page 42-46
1998, 1999, & 2000 Mirage Service Manuals, Volume 2, Page 42-46
Revise the water test information in step 4 on the indicated service manual page as shown below:

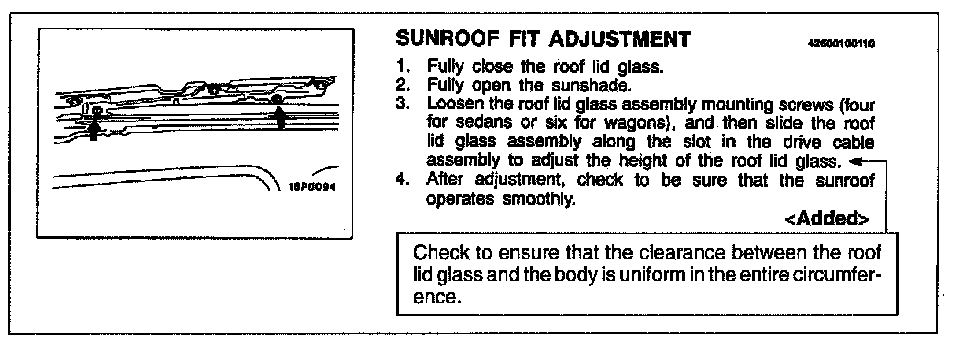

2000 Eclipse Service Manual, Volume 3, Page 42-77
2000 Galant Service Manual, Volume 3, Page 42-90
Revise the sunroof fit adjustment procedures on the indicated service manual page as shown below:

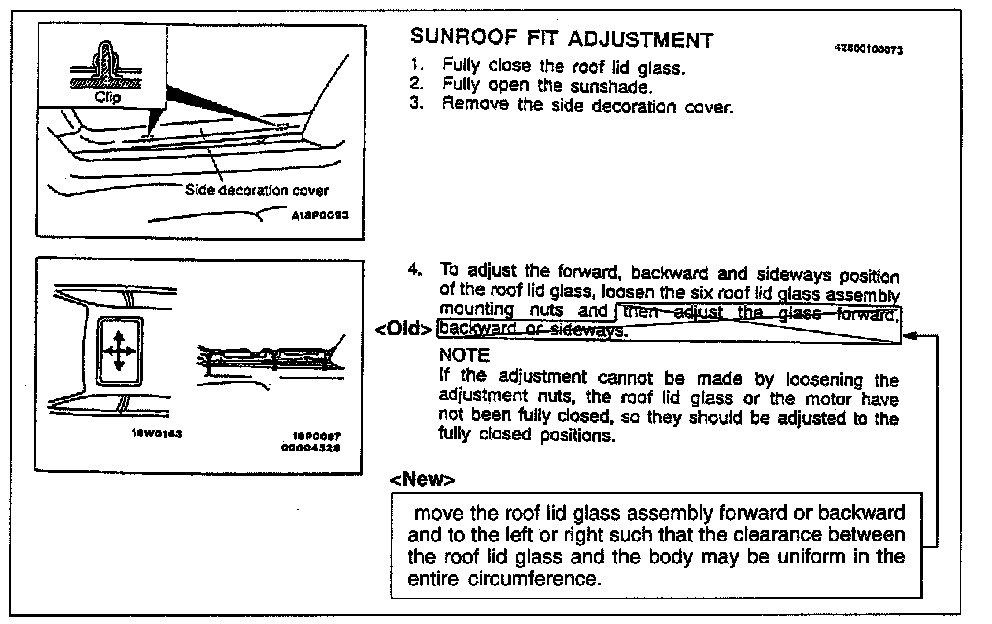

1997 Montero Sport Service Manual, Volume 2, Page 42-58
1998 Montero Sport Service Manual, Volume 2, Page 42-64
1999 Montero Sport Service Manual, Volume 3, Page 42-65
2000 Montero Sport Service Manual, Volume 3, Page 42-85
Revise the sunroof fit adjustment procedures on the indicated service manual page as shown below:

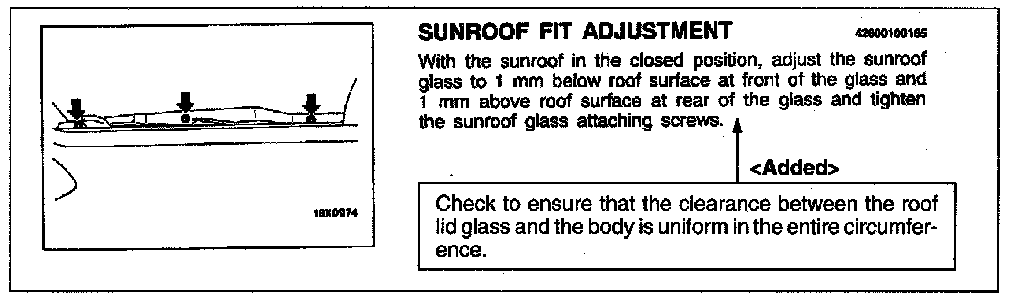

1997 Mirage Service Manual, Volume 1, Page 42-46
1998, 1999, & 2000 Mirage Service Manuals, Volume 2, Page 42-46
Revise the sunroof fit adjustment procedures on the indicated service manual page as shown below:
