Rear Seat

REAR SEAT ASSEMBLY

Eclipse:

Eclipse Spyder:

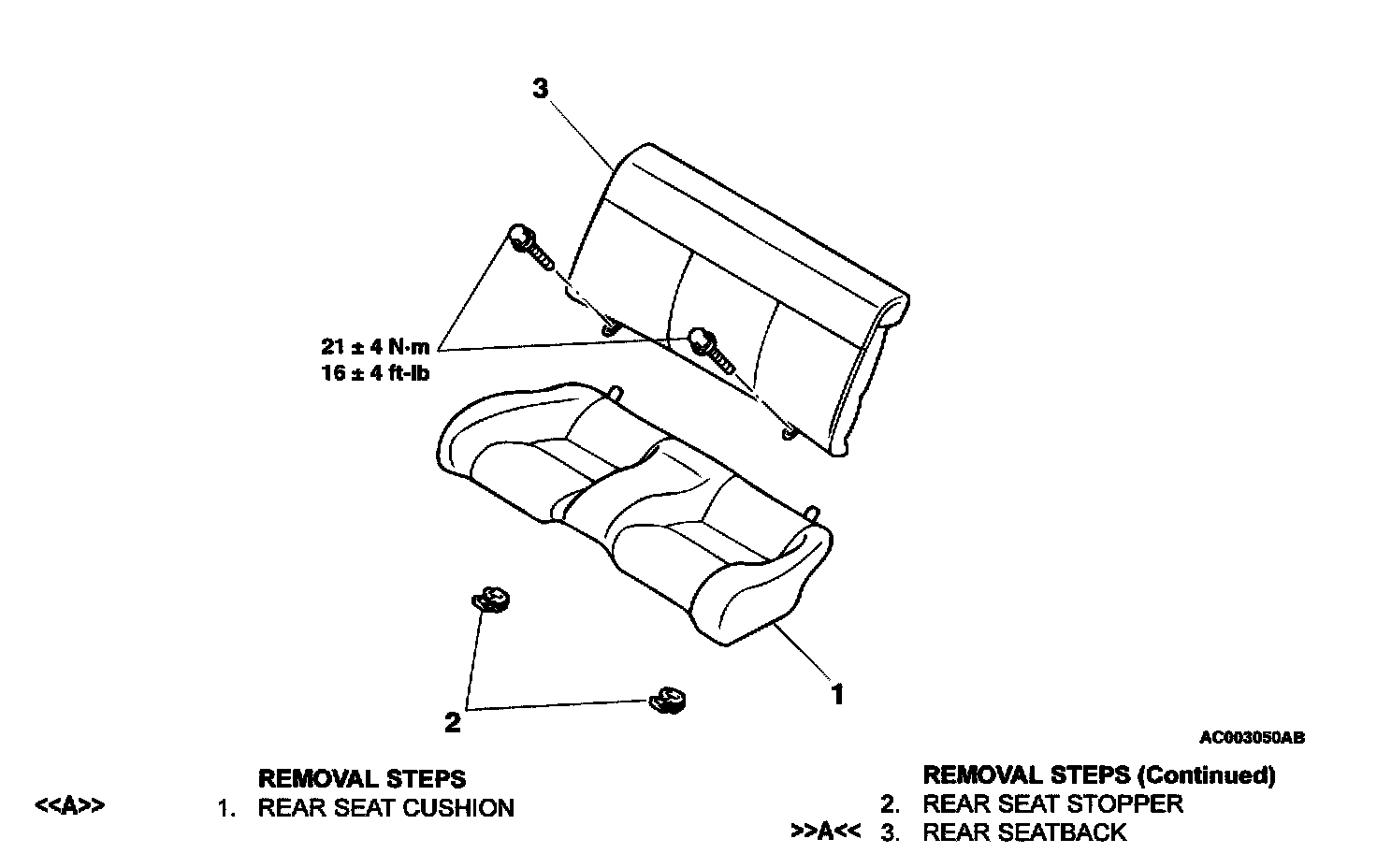

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> REAR SEAT CUSHION REMOVAL

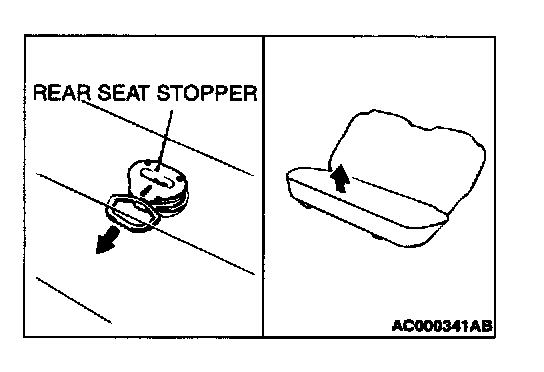

While pulling the rear seat stopper pulled lift up the seat cushion to remove it.

INSTALLATION SERVICE POINT




>>A<< REAR SEATBACK INSTALLATION>

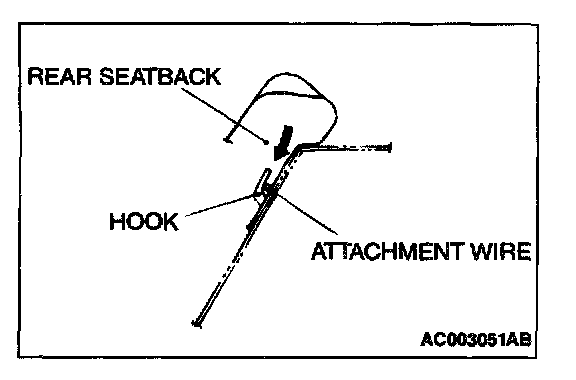

Push the rear seatback in the direction indicated in the illustration; then securely attach the attachment wire to the body side hook and install the rear seatback.

Eclipse:

Eclipse Spyder:

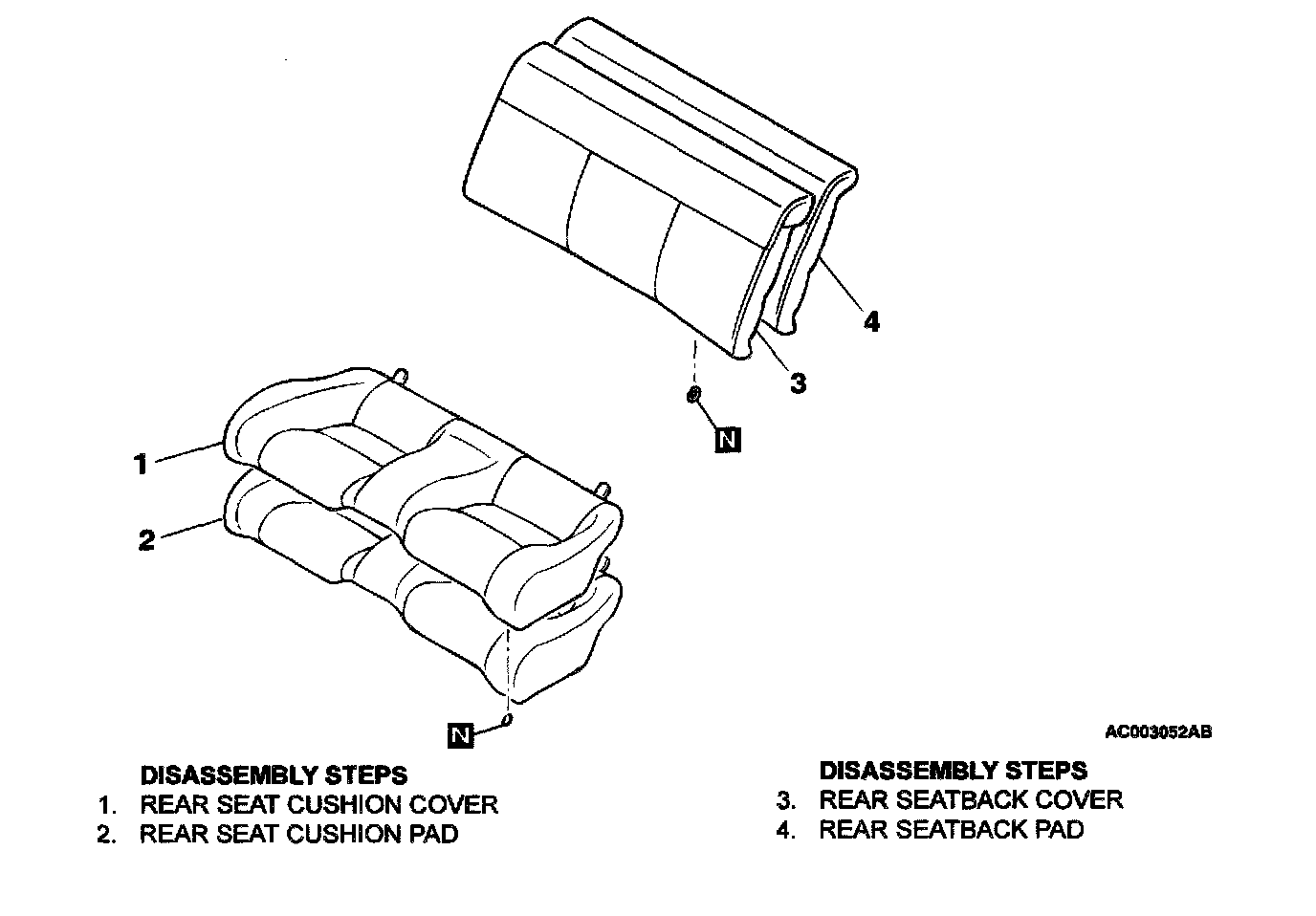

DISASSEMBLY AND ASSEMBLY
