Home >> Mitsubishi >> 2002 >> Eclipse GS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> Circuit Diagram

Circuit Diagram

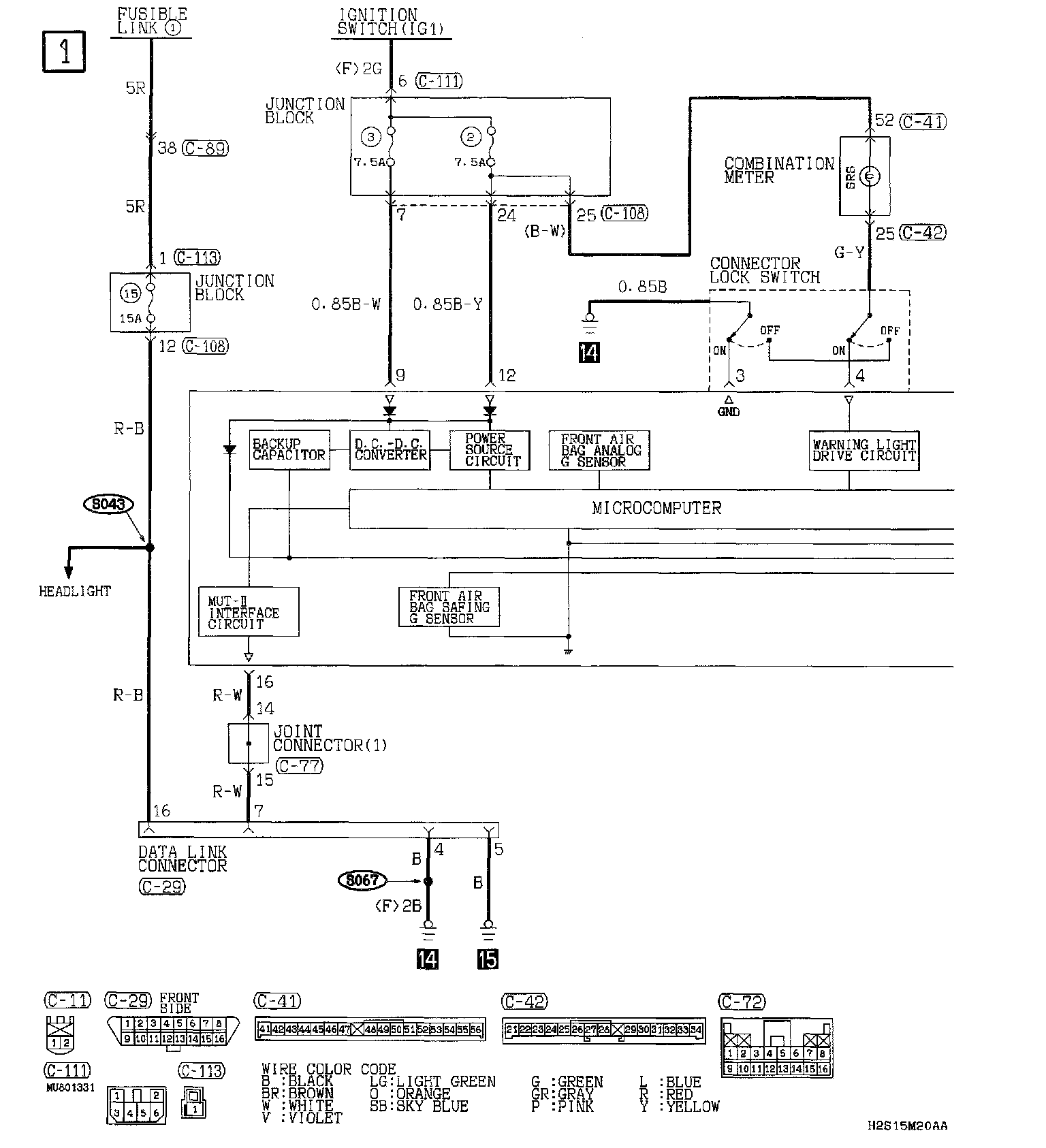

SRS (Without Side Air Bag) Part 1:

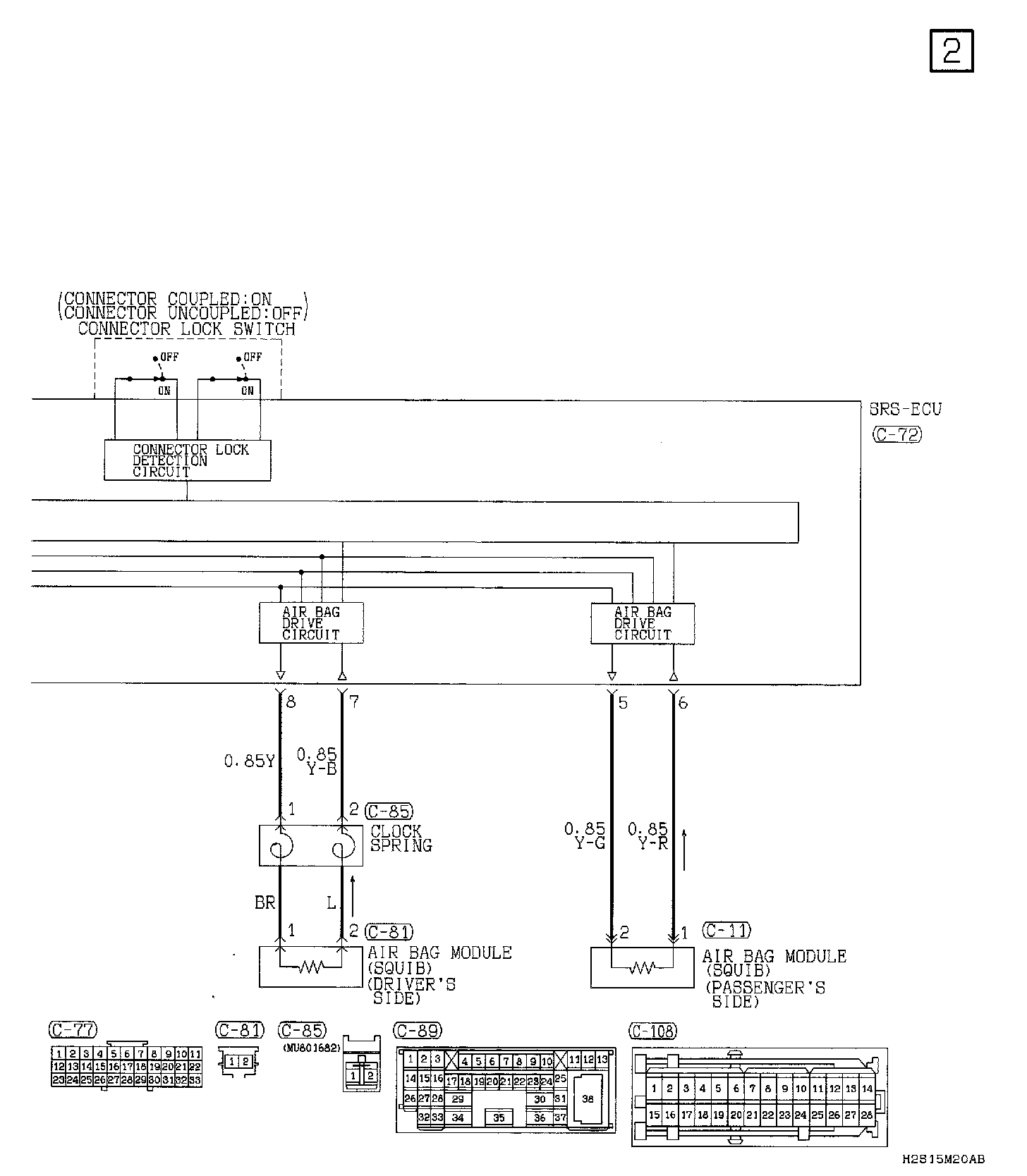

Part 2:

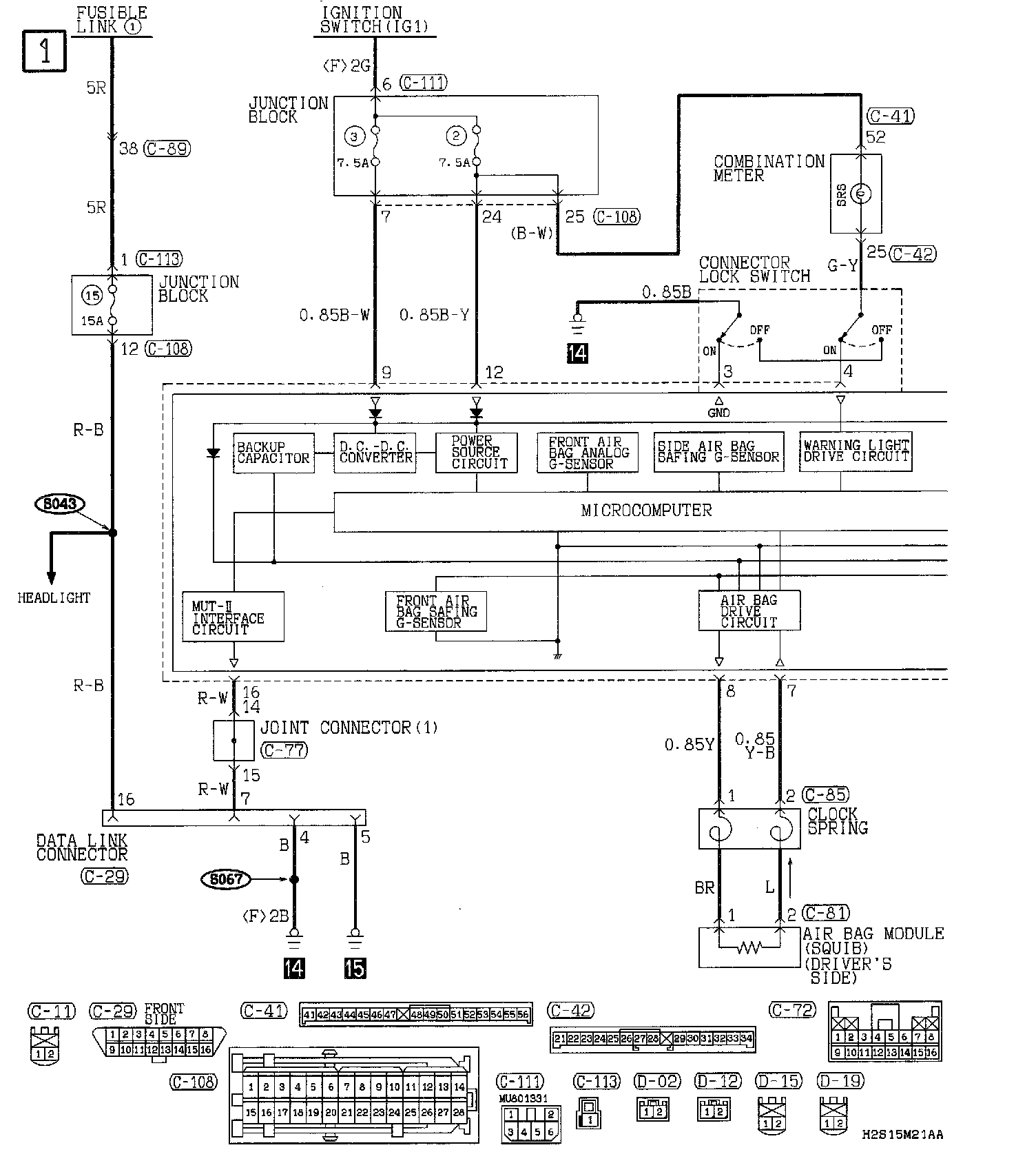

SRS (With Side Air Bag) Part 1:



Part 2:
