Mechanical Specifications

MANUAL TRANSAXLE

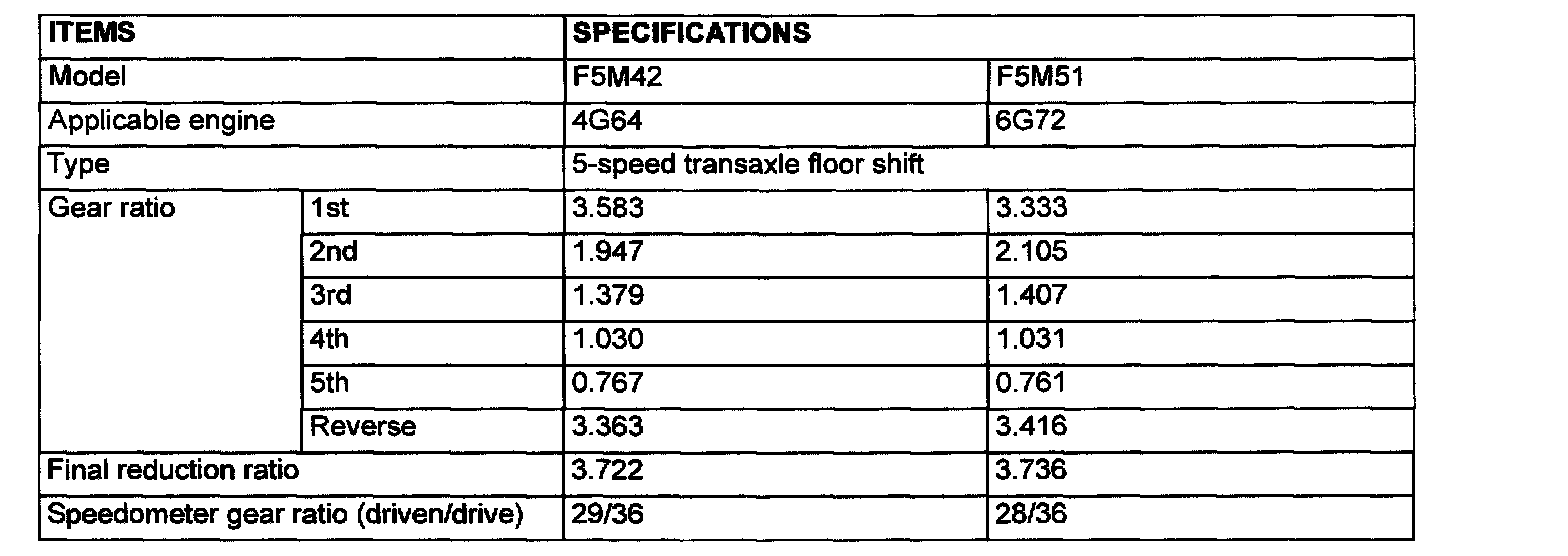

GENERAL SPECIFICATIONS

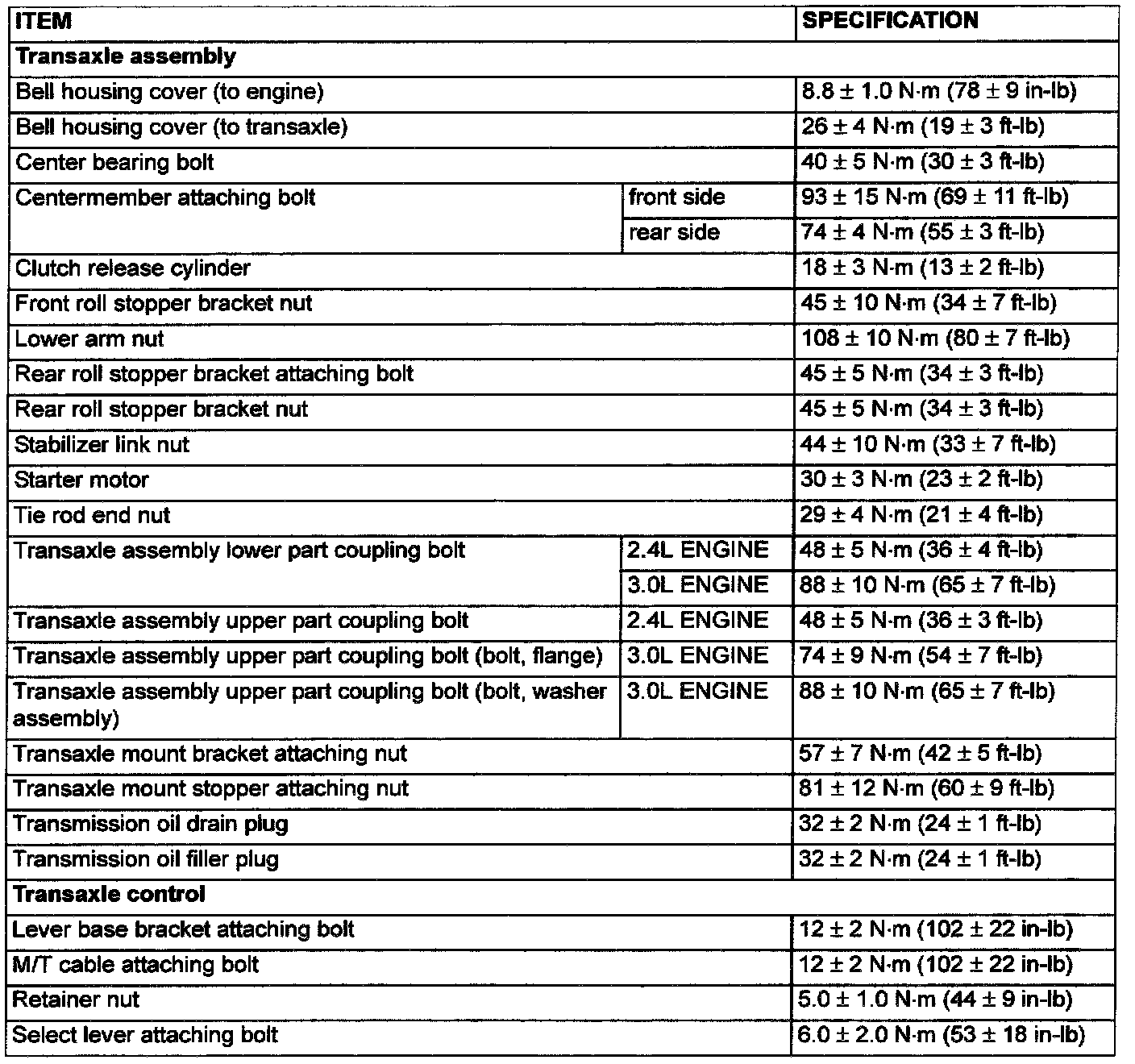

FASTENER TIGHTENING SPECIFICATIONS

MANUAL TRANSAXLE OVERHAUL





FASTENER TIGHTENING SPECIFICATIONS





GENERAL SPECIFICATIONS

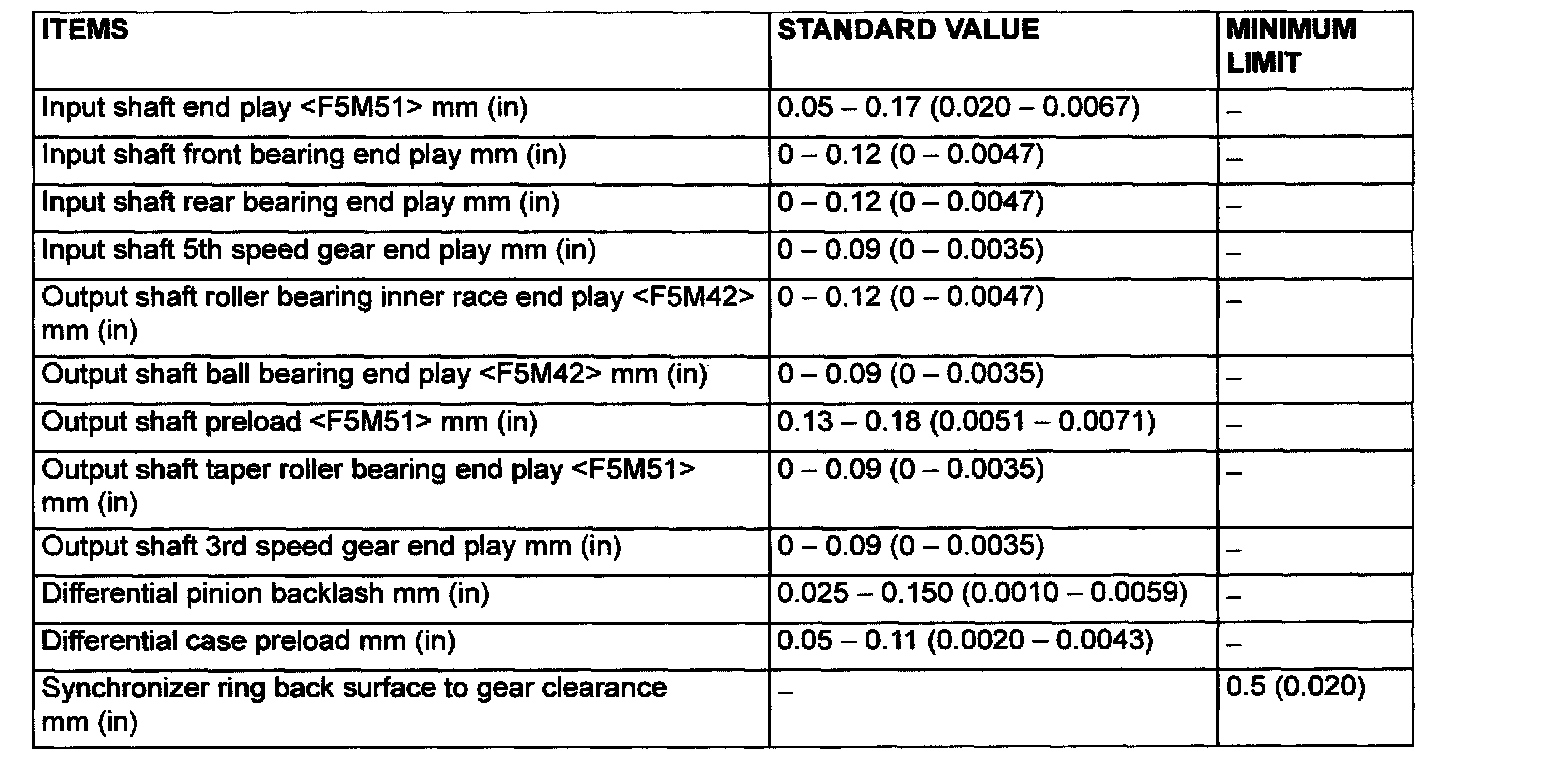

SERVICE SPECIFICATIONS
