Pinout Values and Diagnostic Parameters

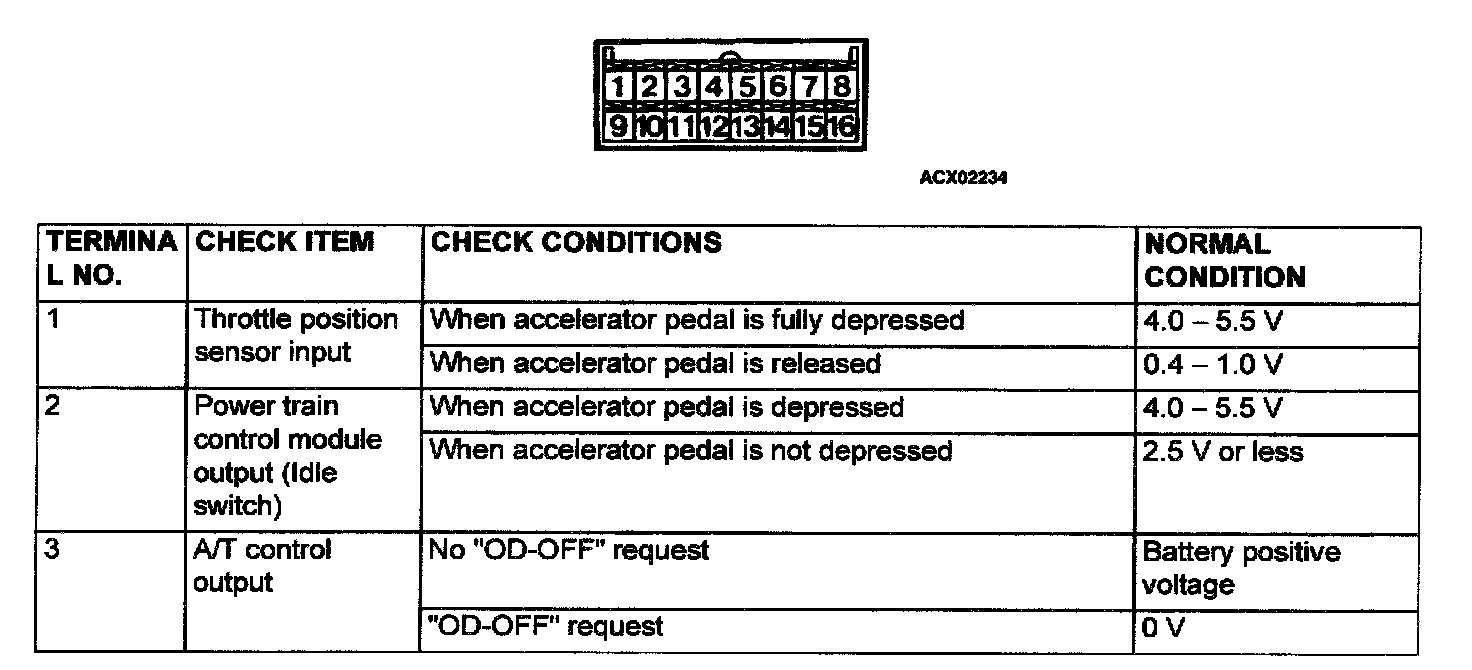

Auto-Cruise Control-ECU Terminal Arrangement And Terminal No: 1 - 3:

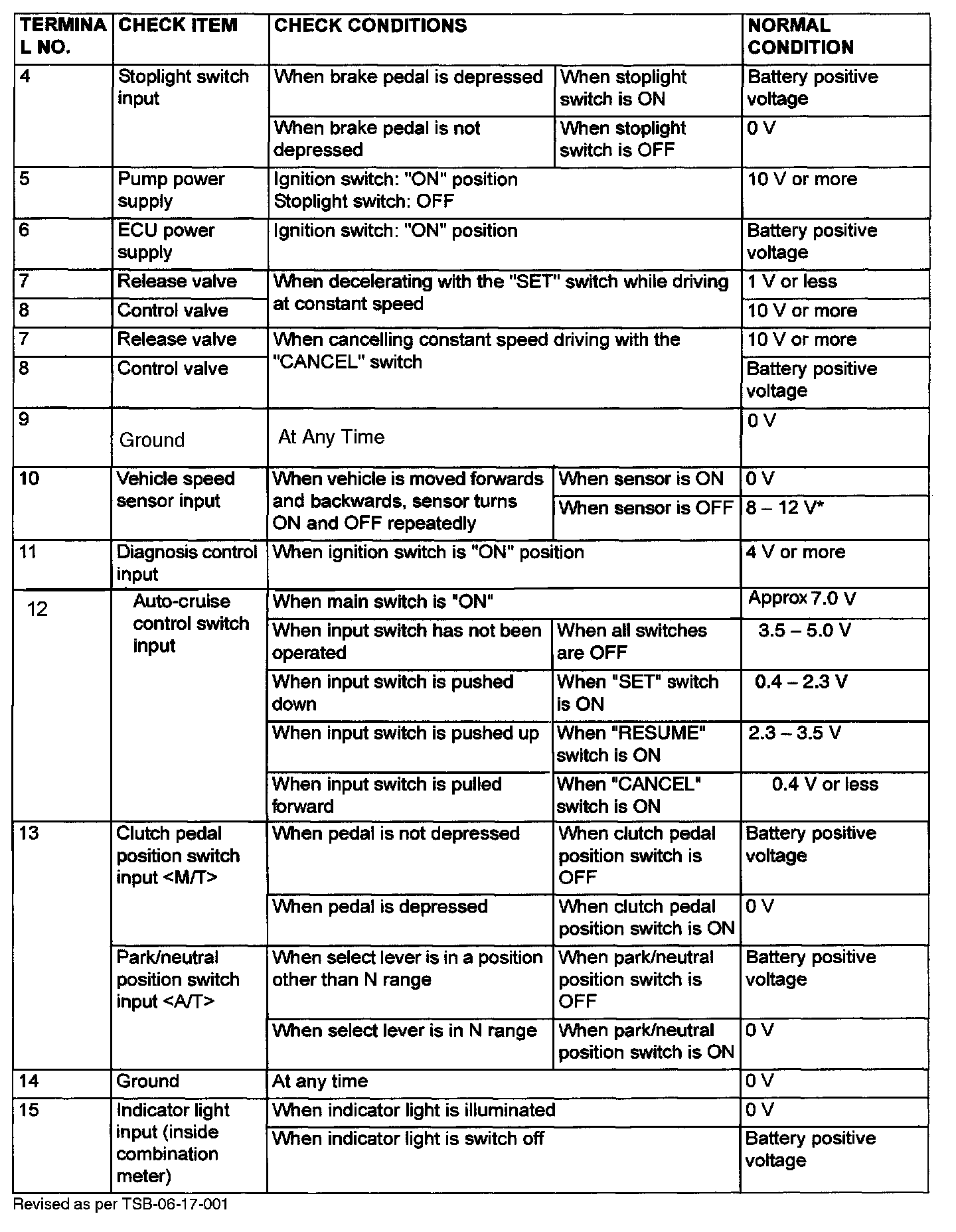

Terminal No: 4 - 15:
