Overall Harness Configuration Diagram
Overall Harness Configuration Diagram

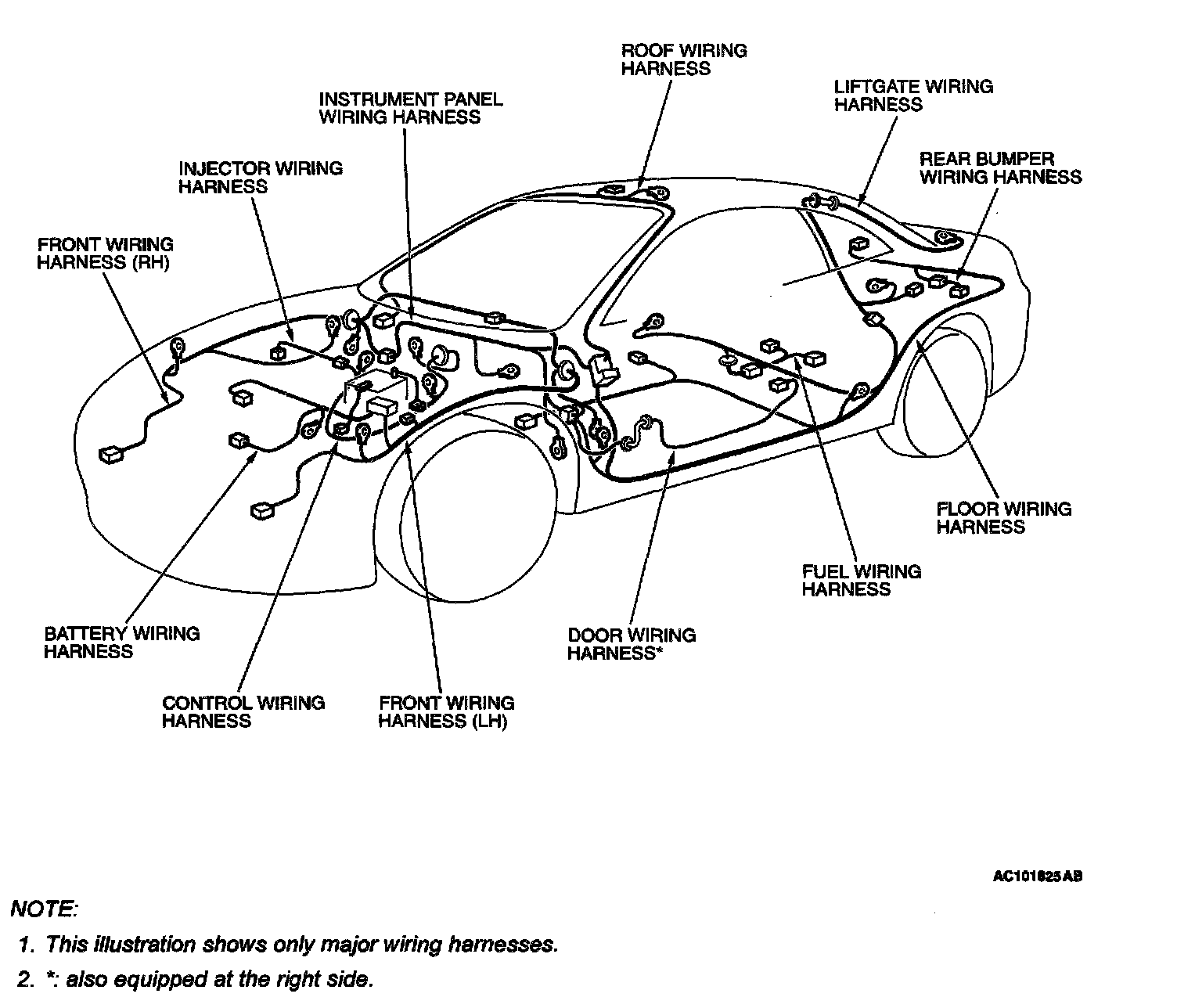

Overall Configuration Diagram <Eclipse>:
