Brake Warning Indicator
Brake Warning Indicator

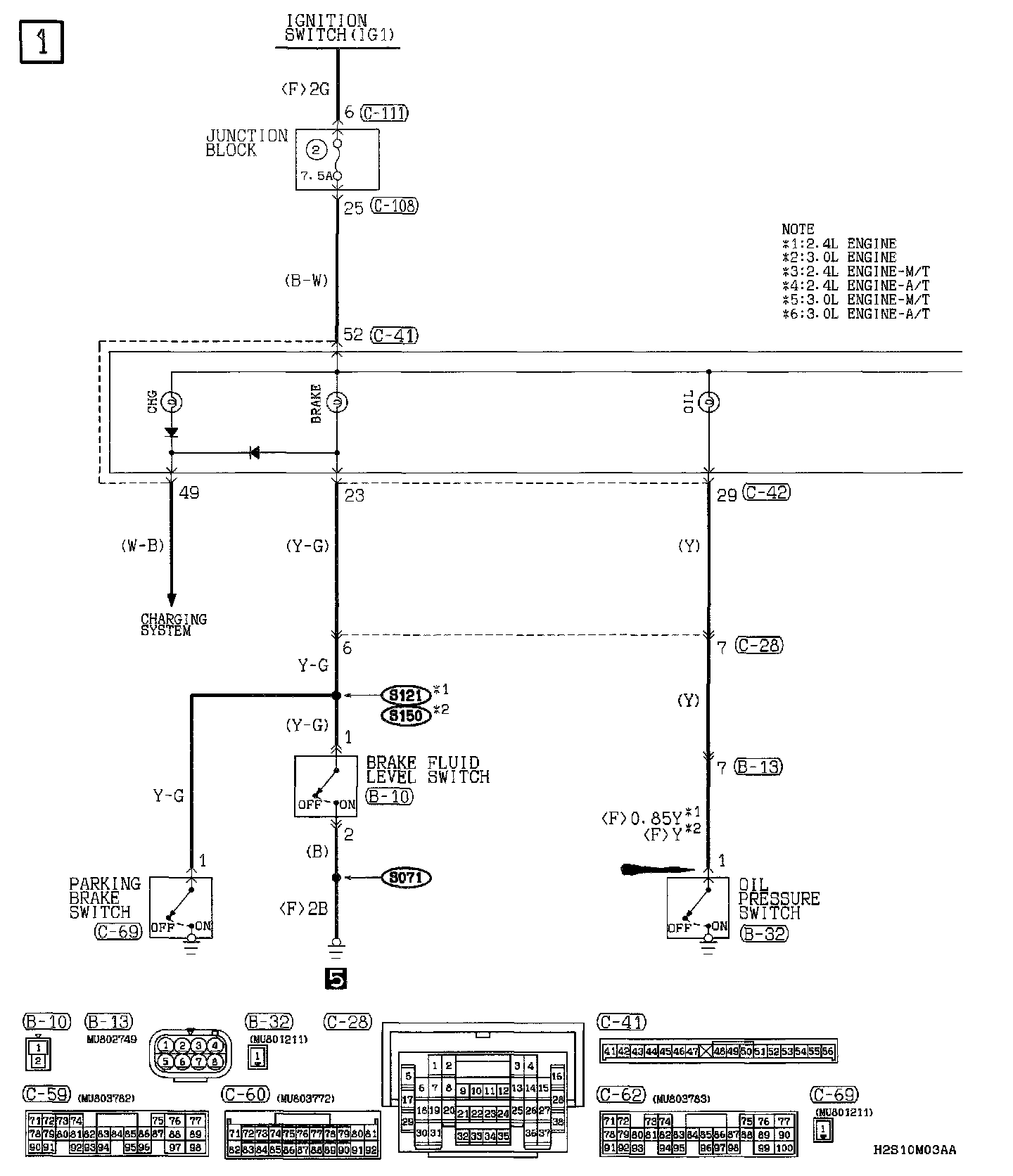

Brake Warning, Oil Pressure Warning, Fuel Warning Light Part 1:

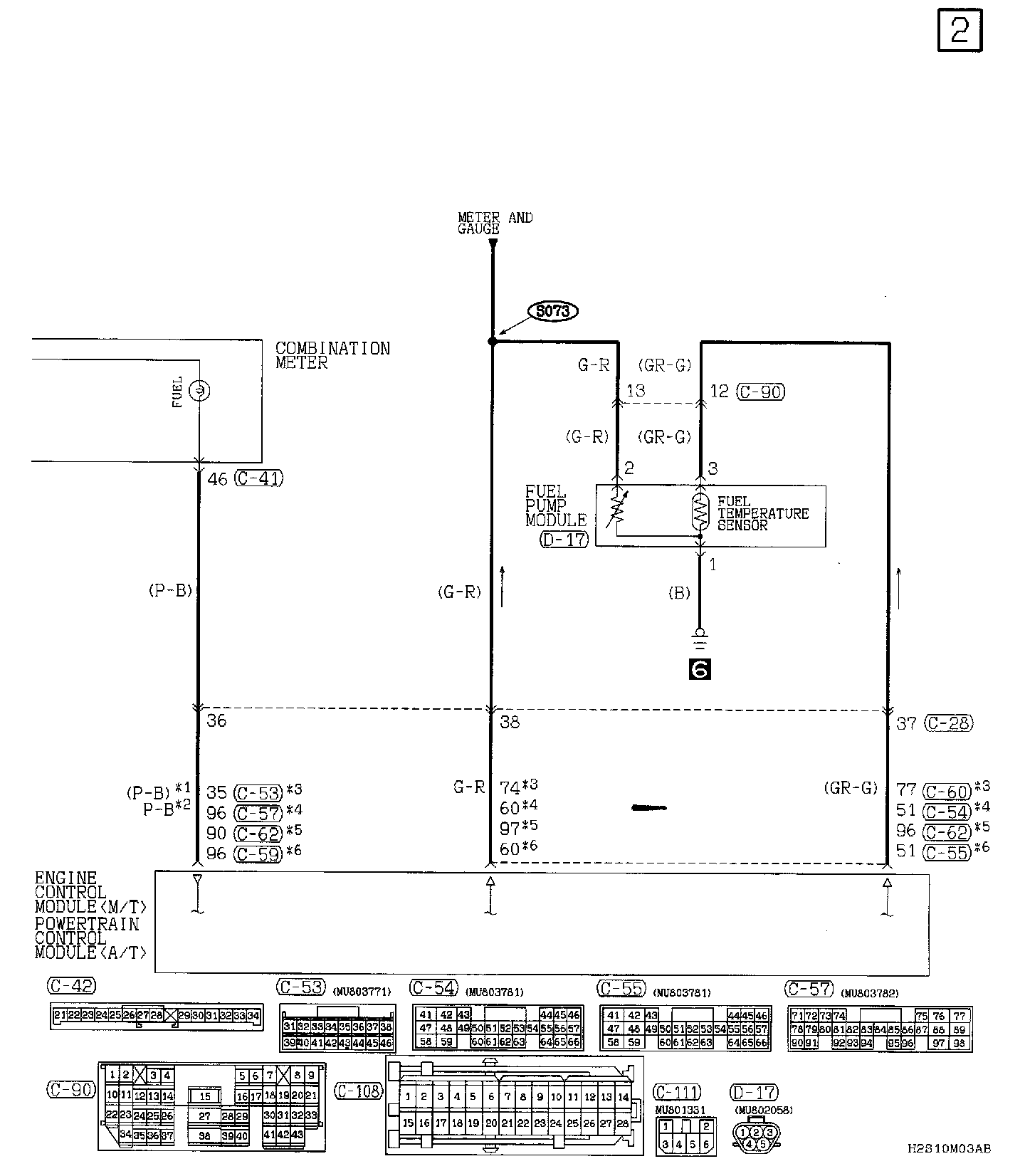

Part 2:
