Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Eclipse GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

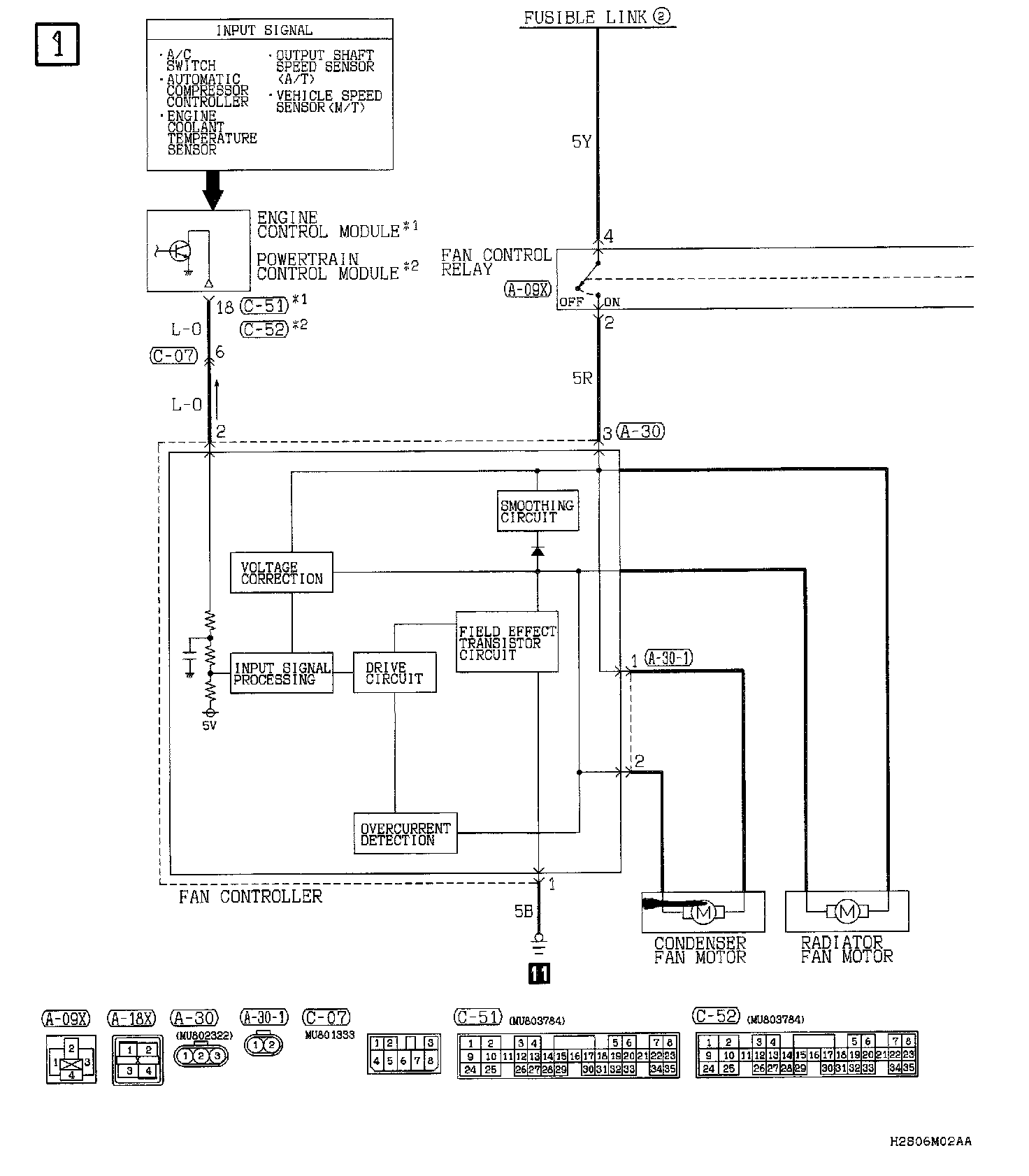

Cooling System <3.0L Engine> Part 1:
Part 2:
