Cruise Control

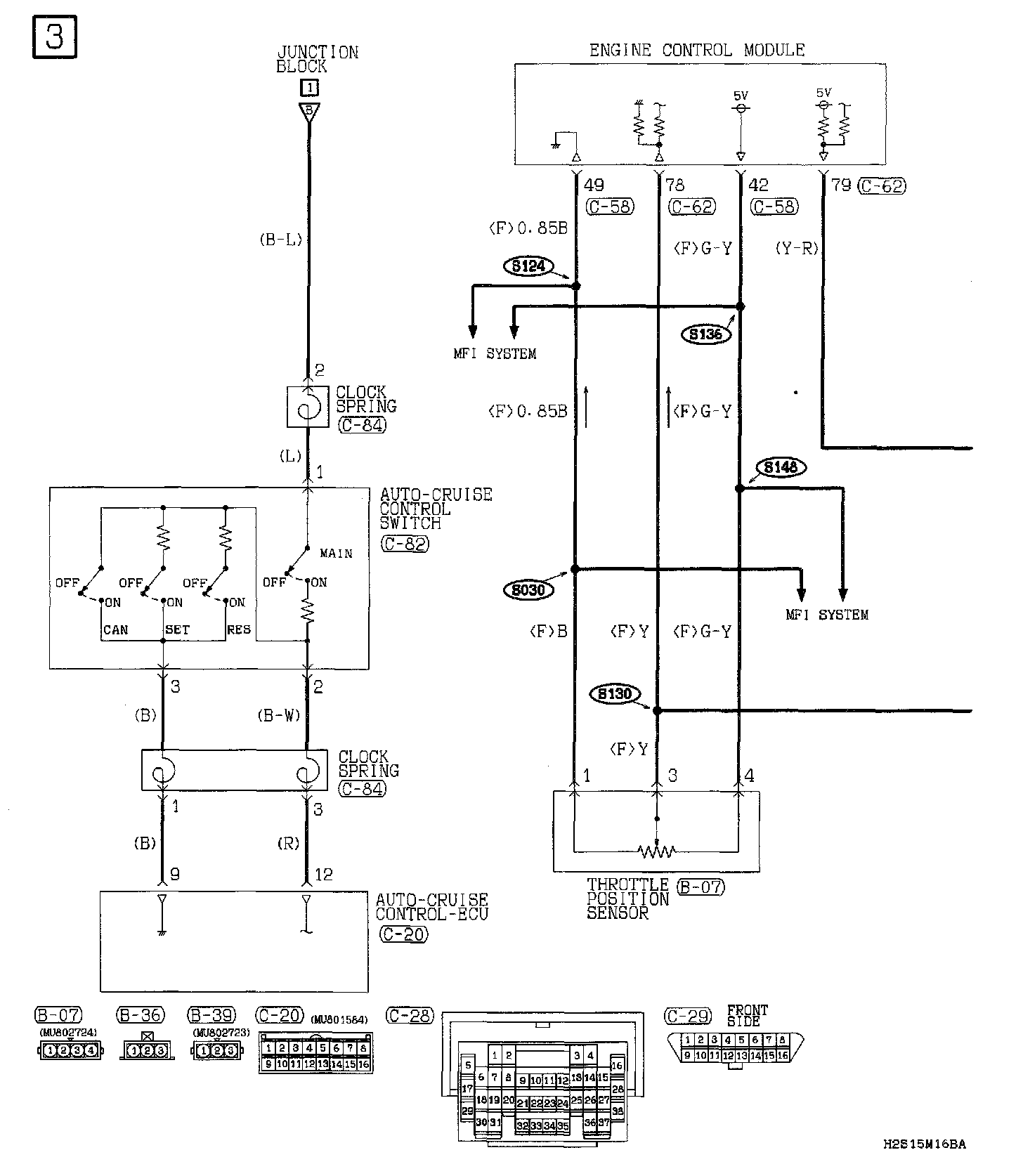

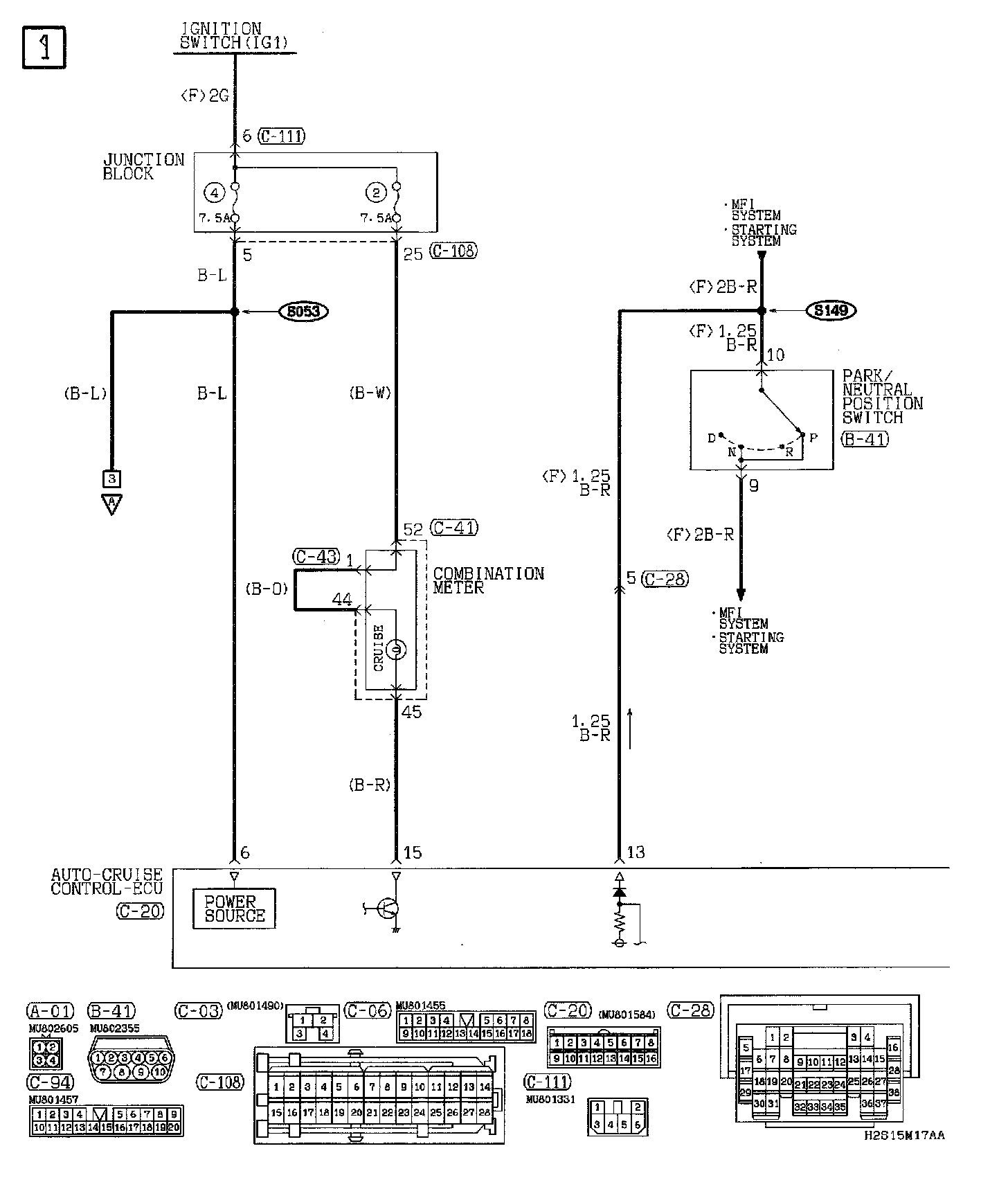

Auto-Cruise Control (3.0L Engine-M/T) Part 1:



Part 2:



Part 3:



Part 4:



Auto-Cruise Control (3.0L Engine-A/T) Part 1:



Part 2:



Part 3:



Part 4:
