Tail Lamp

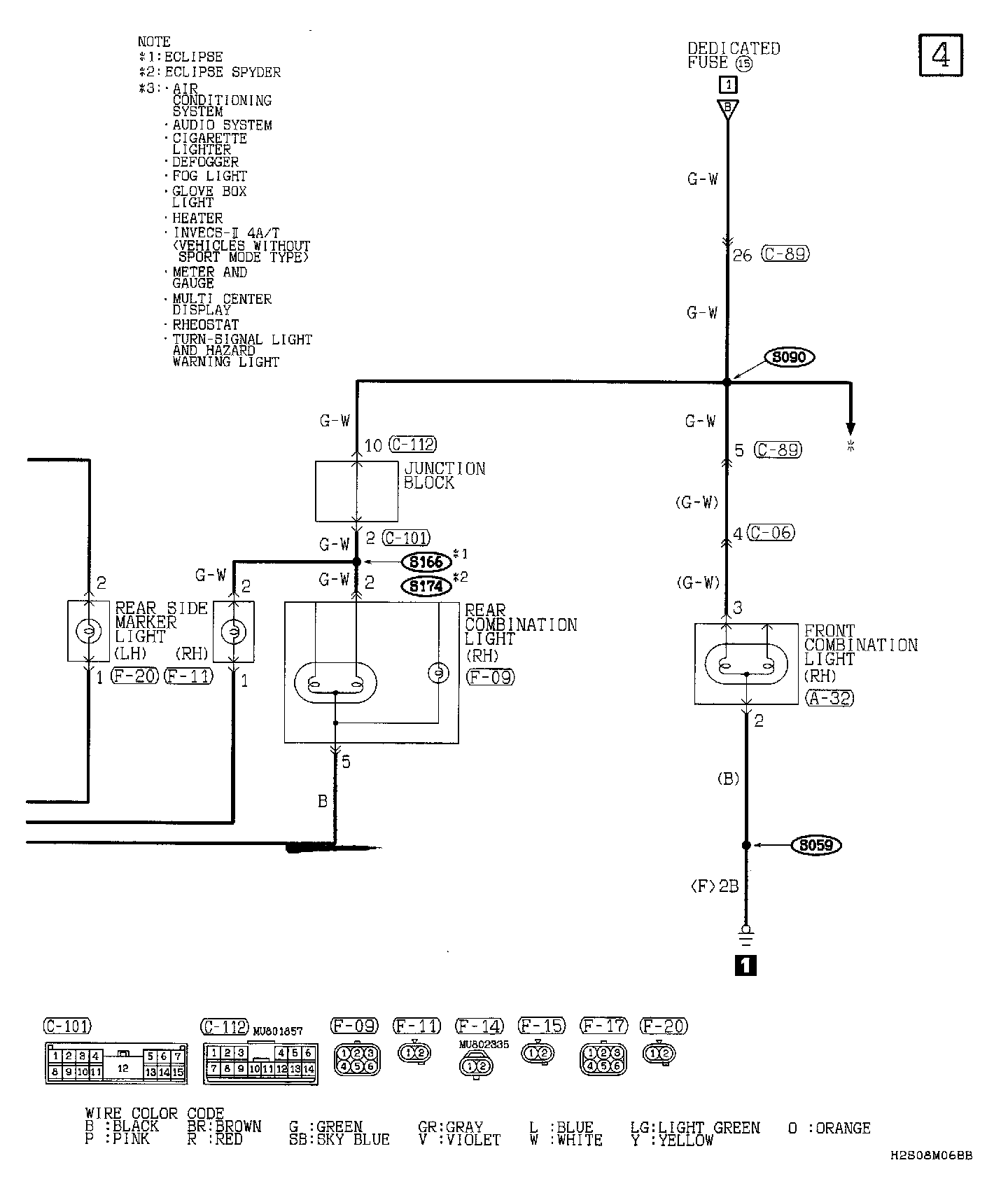

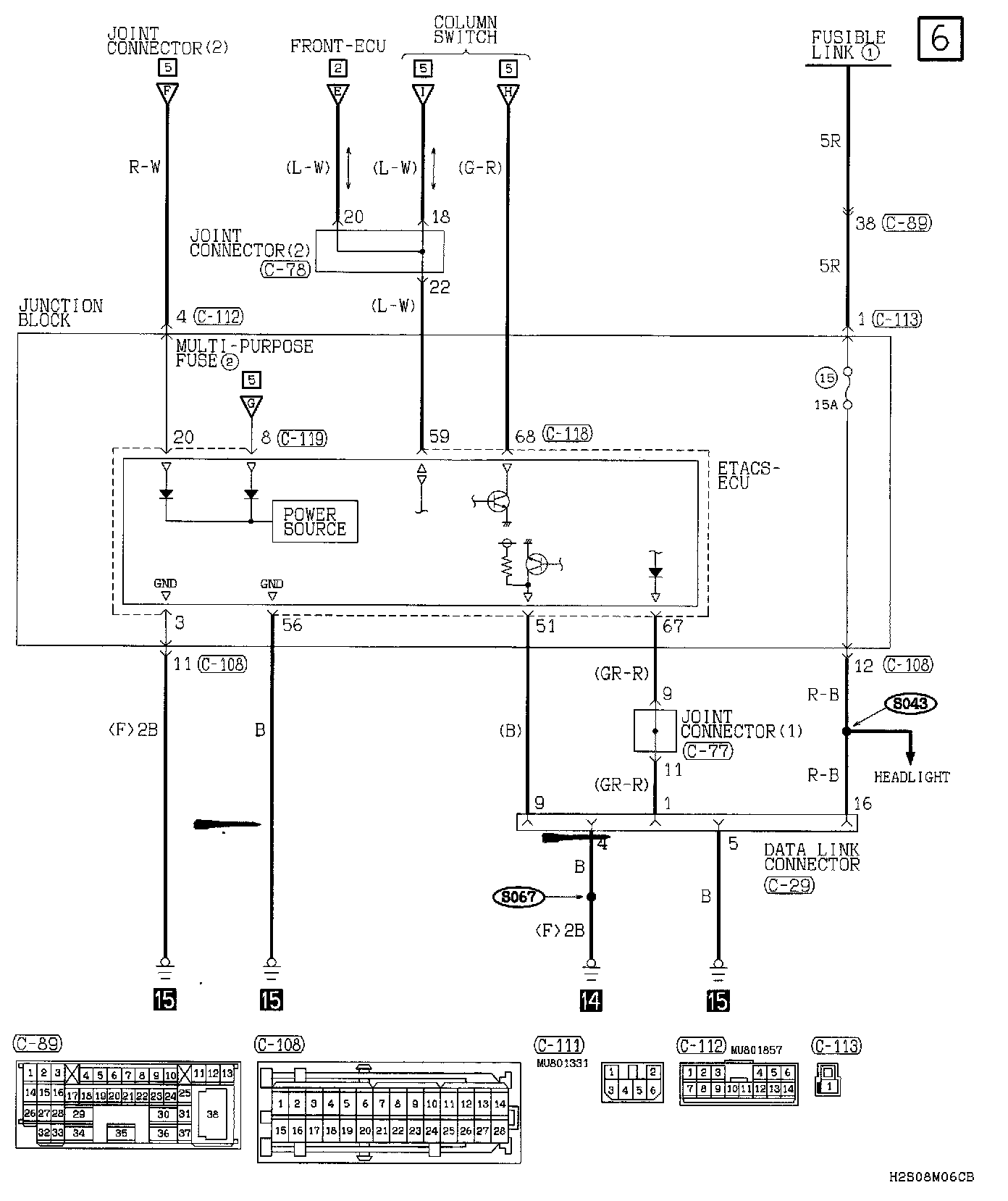

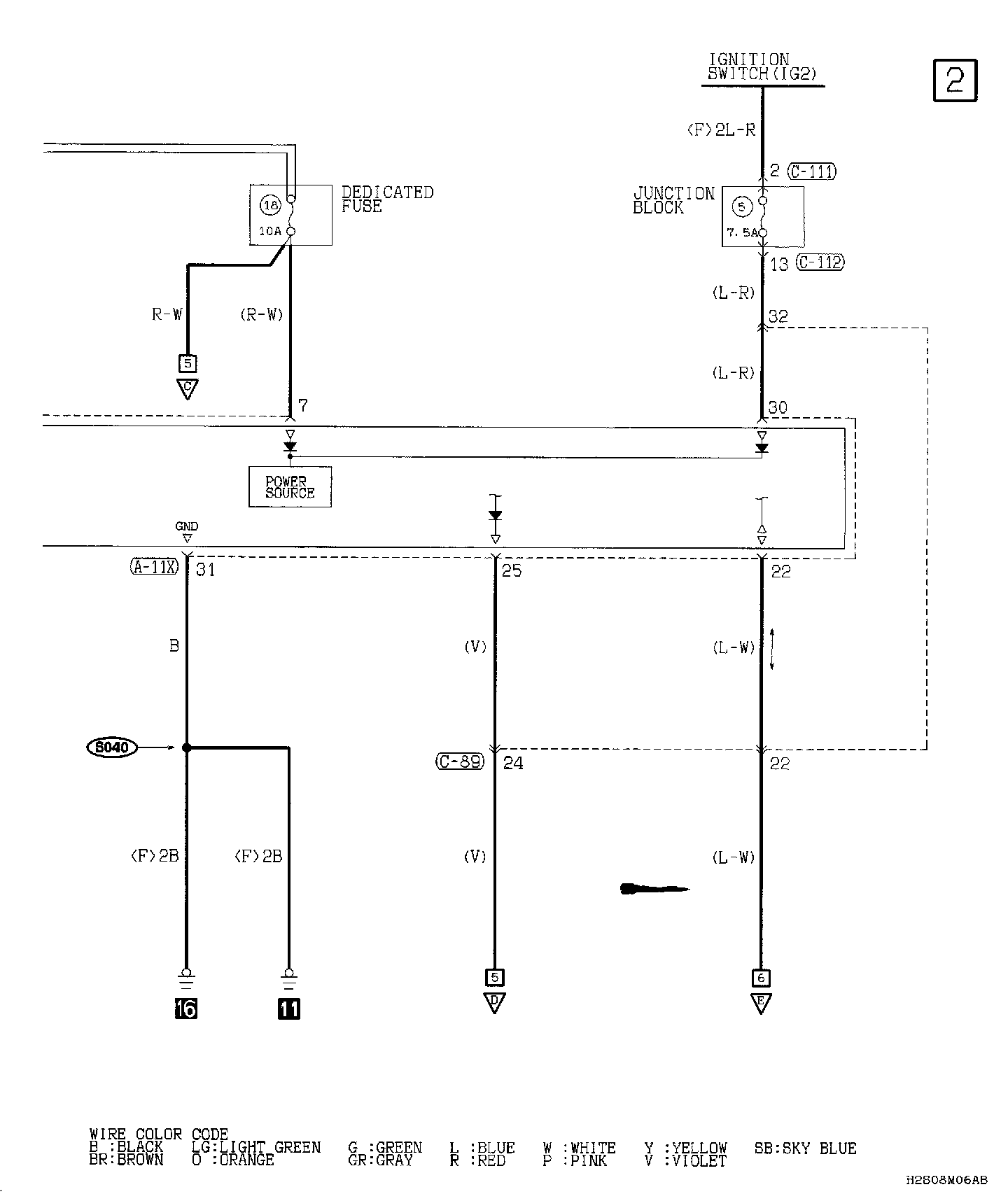

Tail, Position, Rear Side Marker And License Plate Lights Part 1:



Part 2:



Part 3:



Part 4:



Part 5:



Part 6:
