Turn Signal Lamp

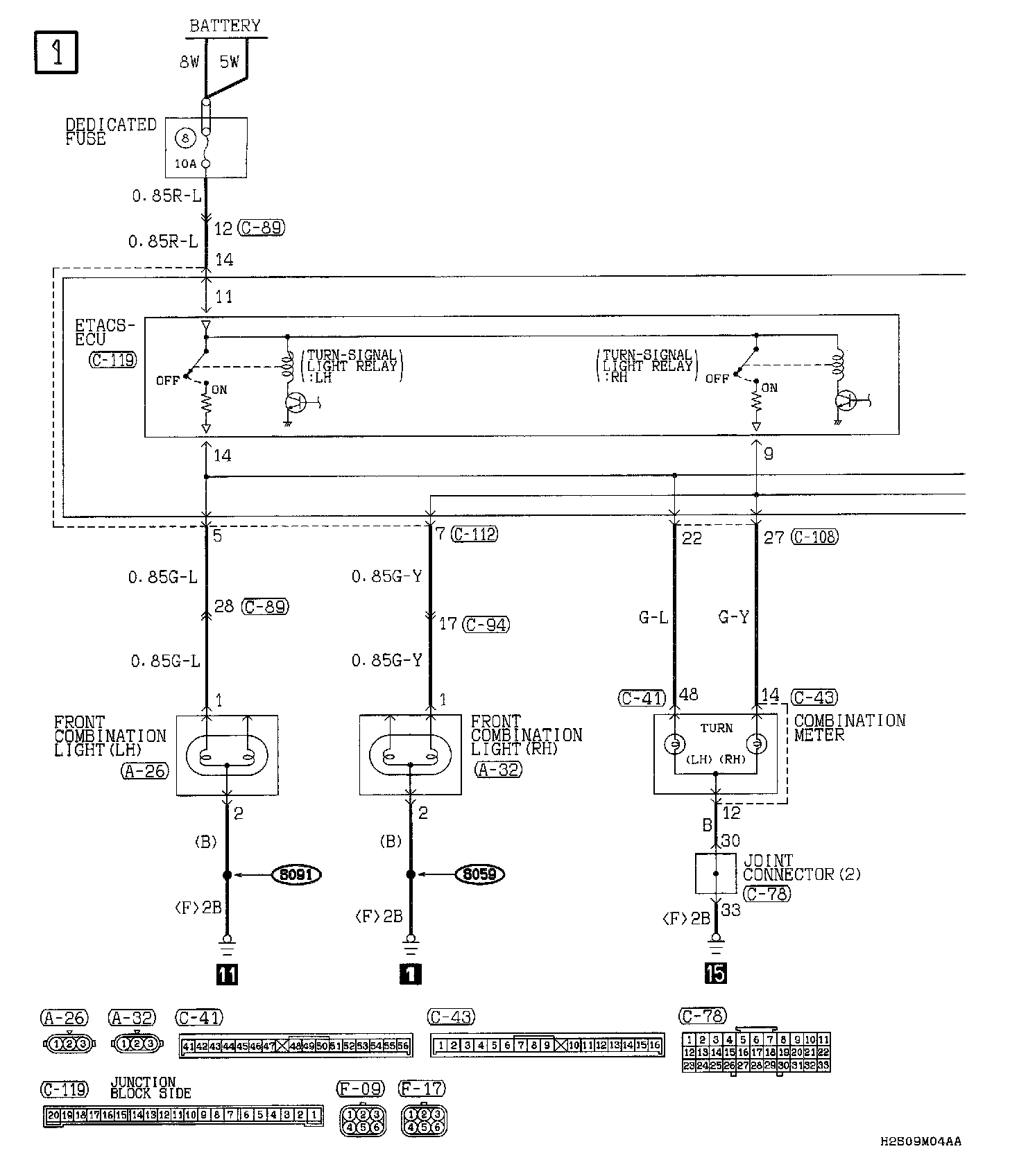

Turn-Signal Light And Hazard Warning Light Part 1:



Part 2:



Part 3:

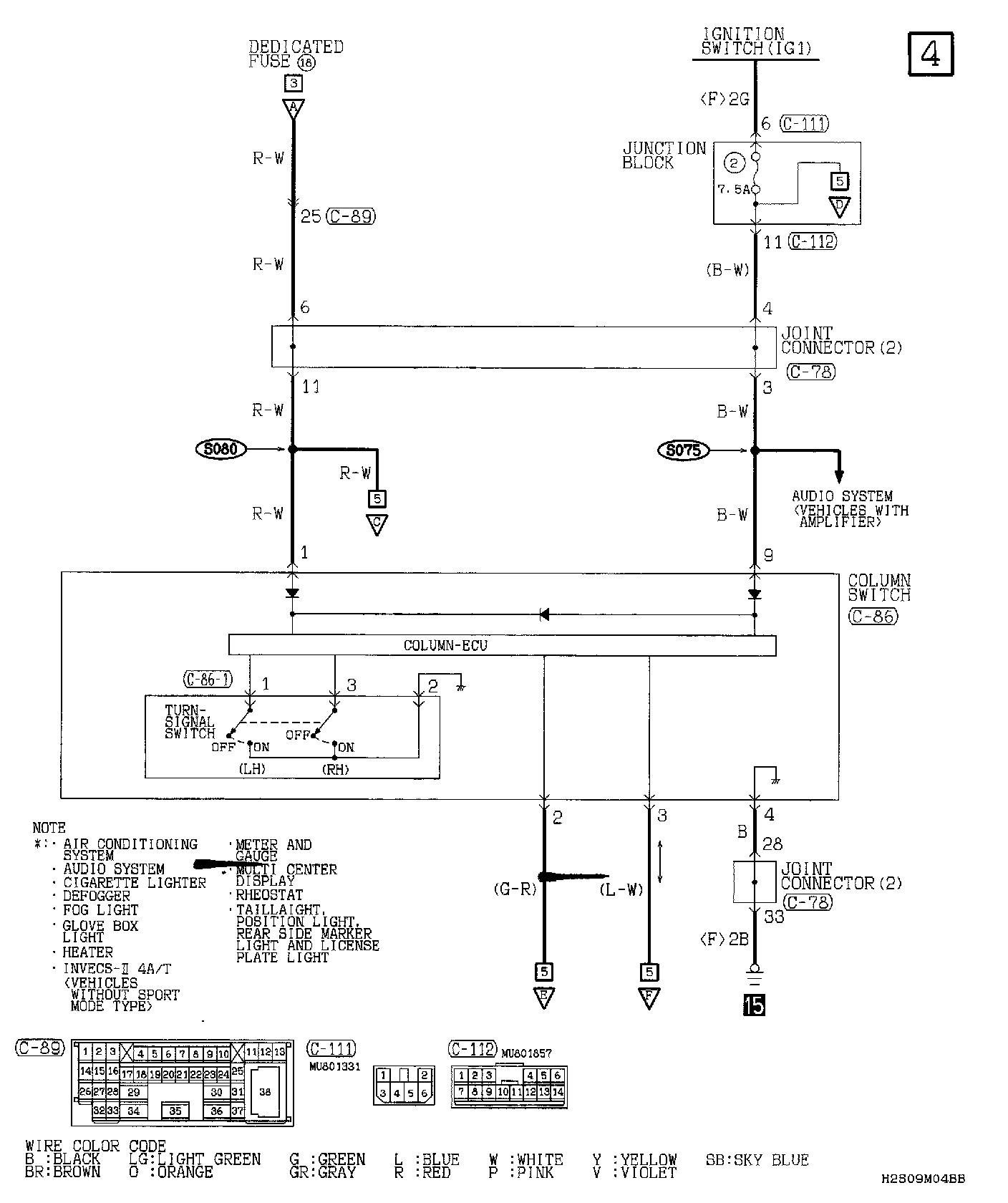

Part 4:

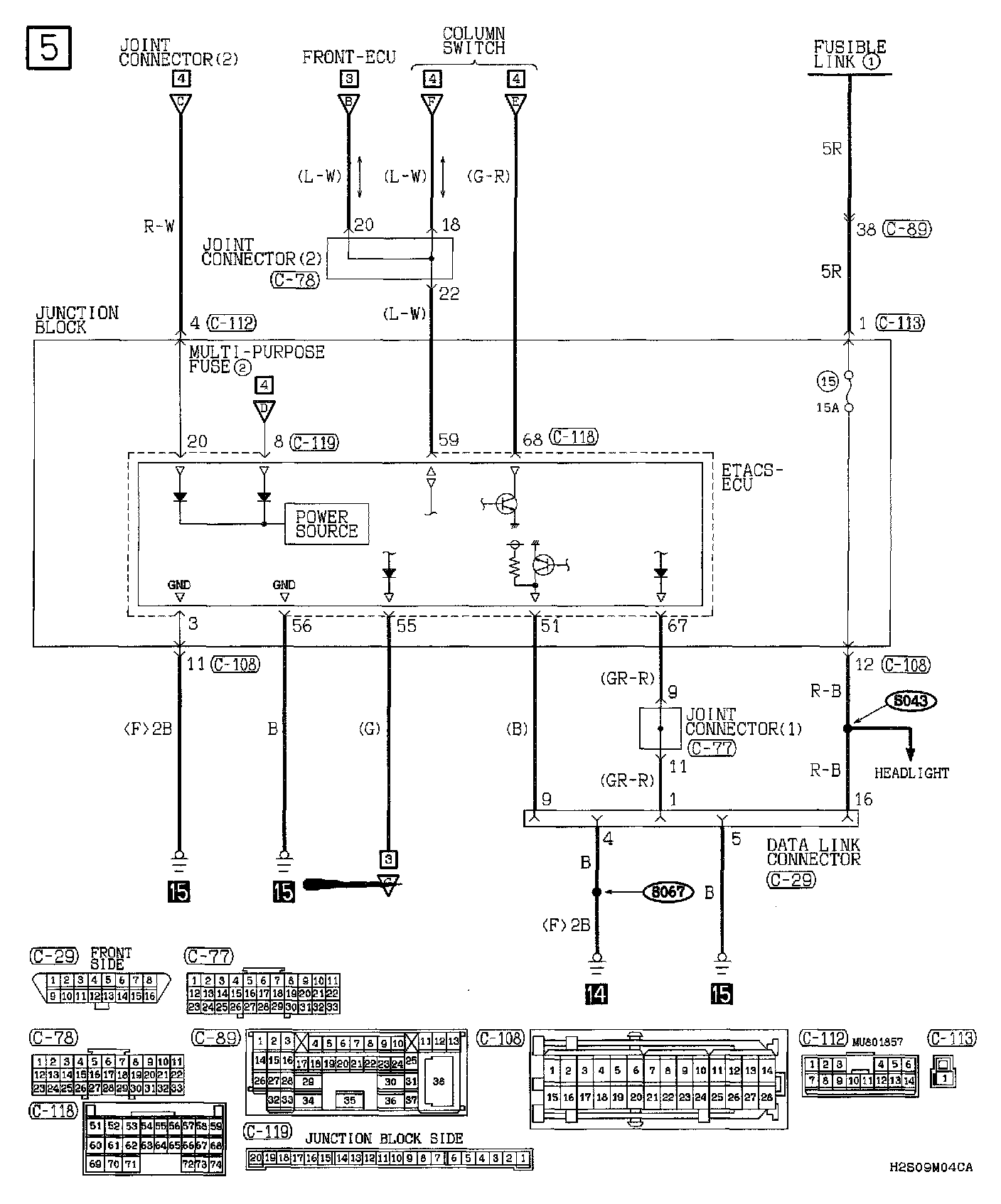

Part 5:
