Dash Panel Harness - C Connectors

Dash Panel - C Connector [01 (4) Thru 22 (14)]:

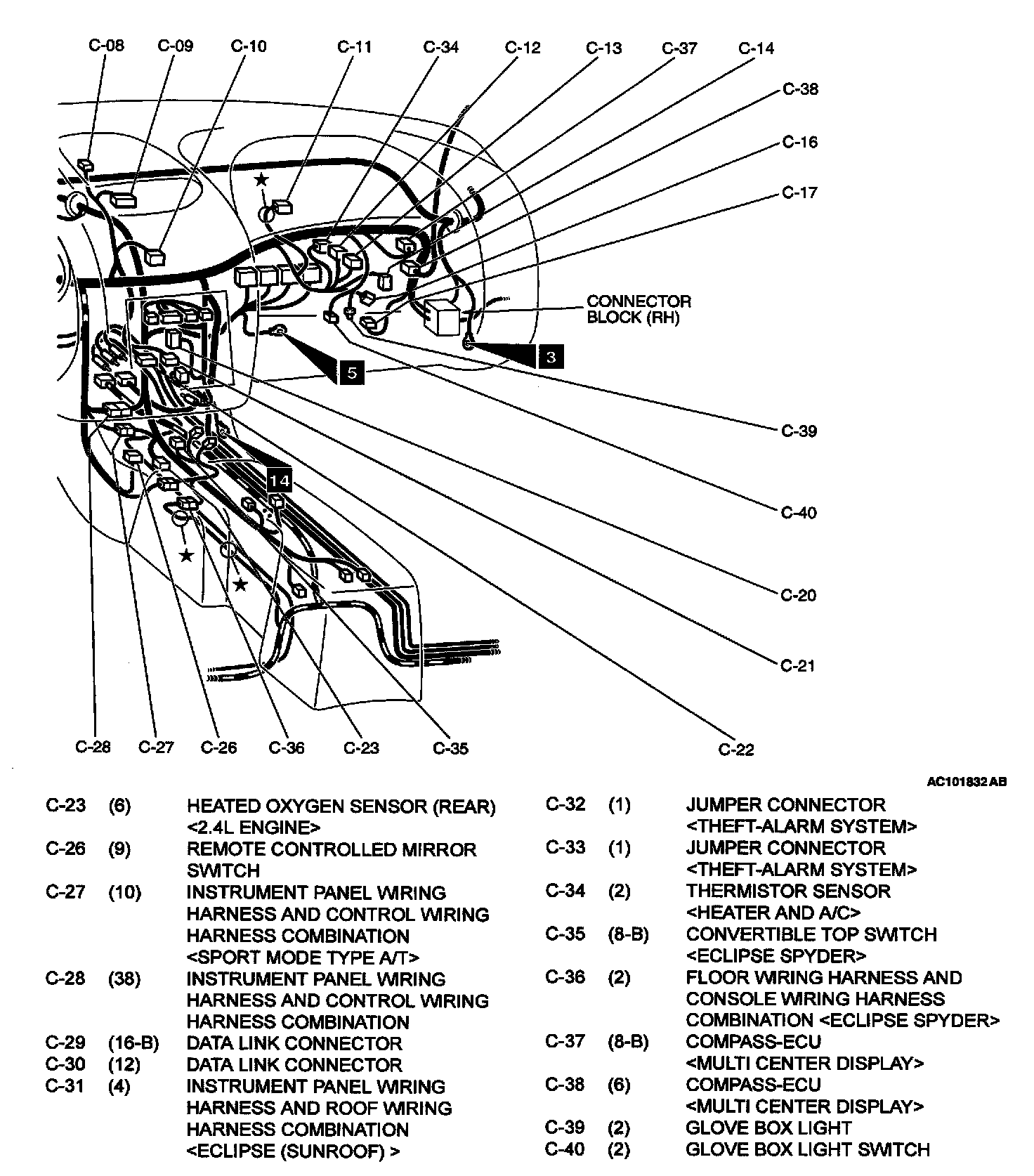

Dash Panel - C Connector (23 (8) Thru 40 (2)):

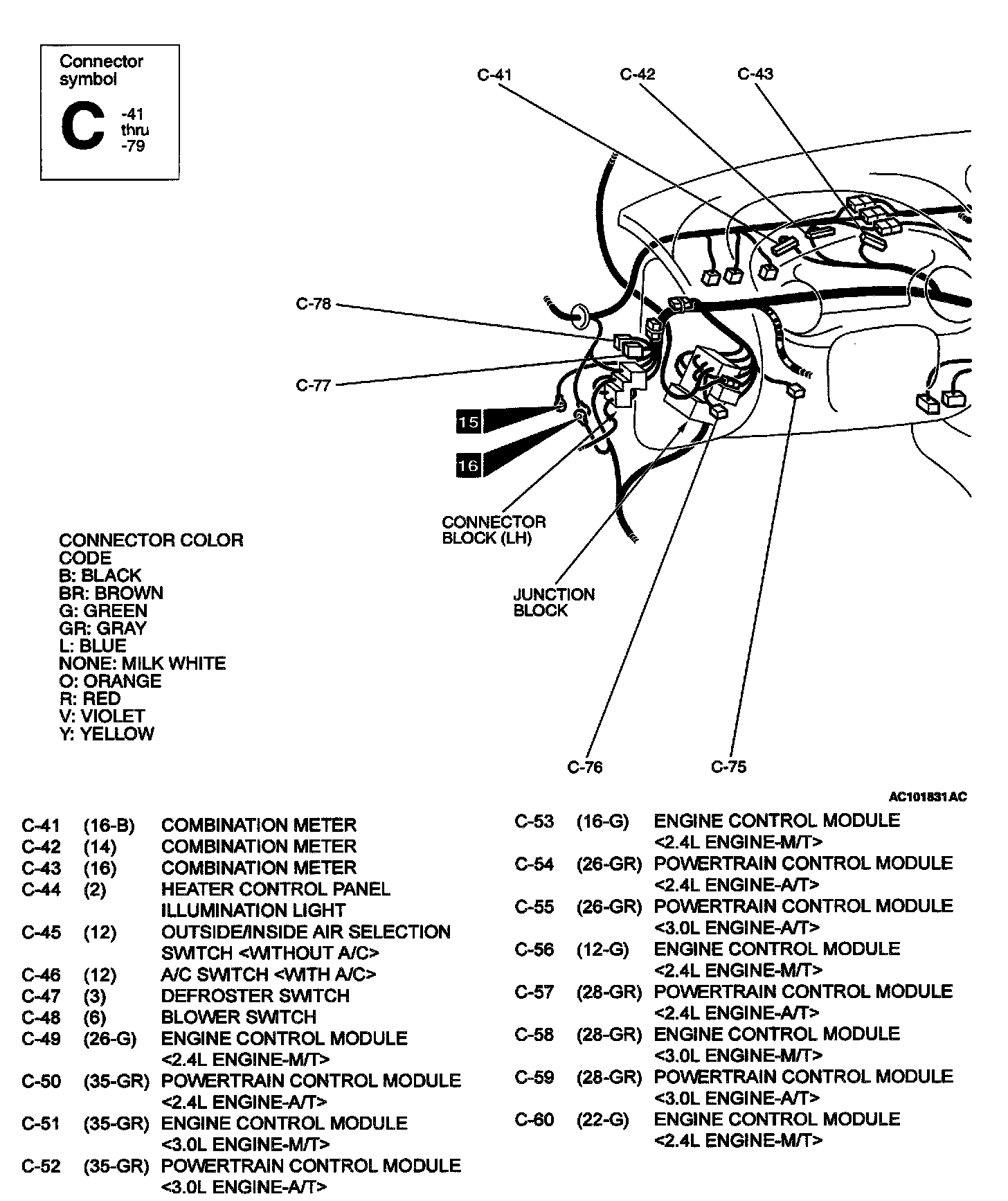

Dash Panel - C Connector [41 (16-B) Thru 60 (22-G)]:

Dash Panel - C Connector [61 (30-GR) Thru 79 (12)]:

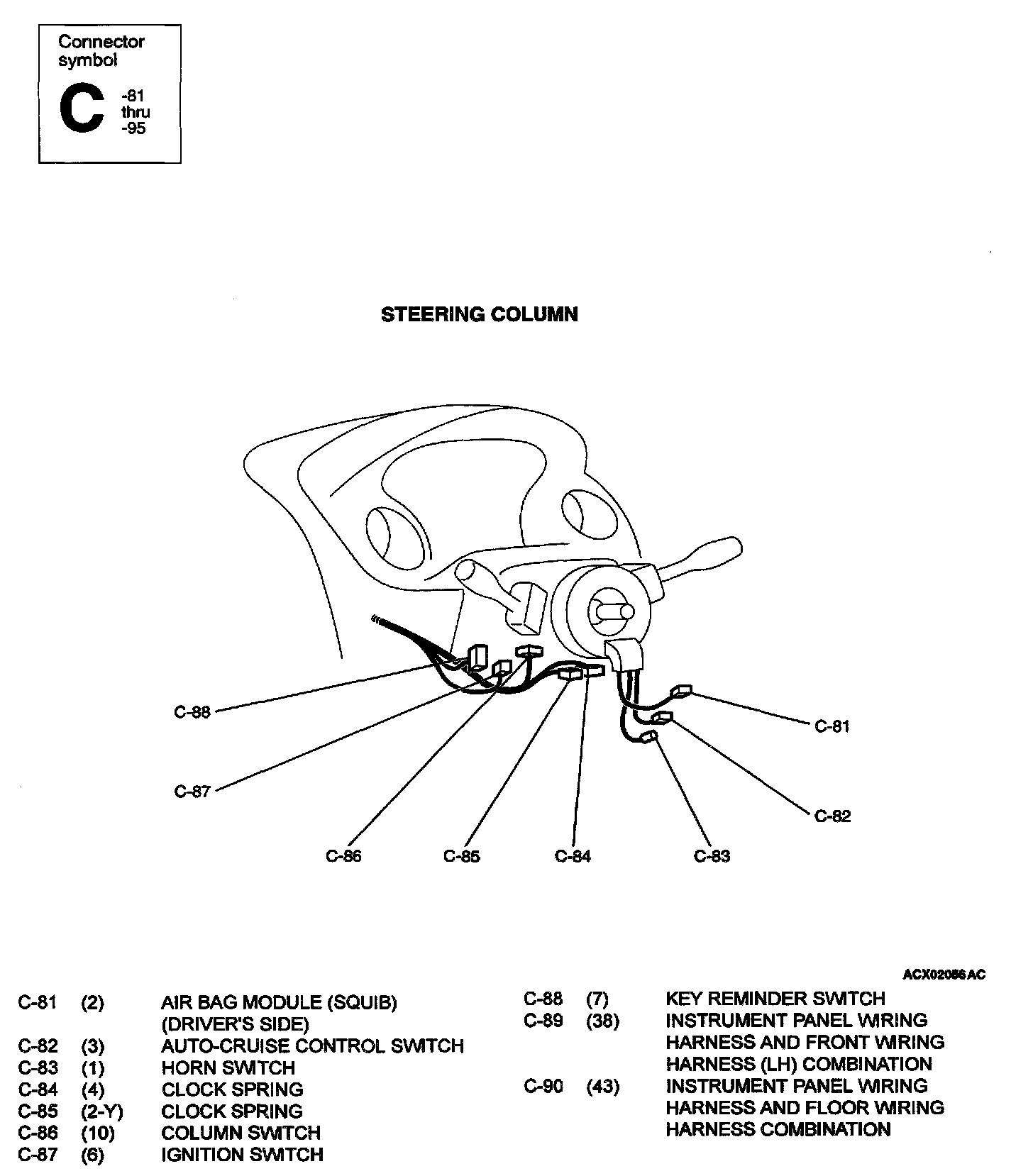

Dash Panel - C Connector [81 (2) Thru 90 (43)]:

Dash Panel - C Connector [91 (32-B) Thru 95 (32)]:

Dash Panel - C Connector [101 (6-B) Thru 107 (22-B)]:

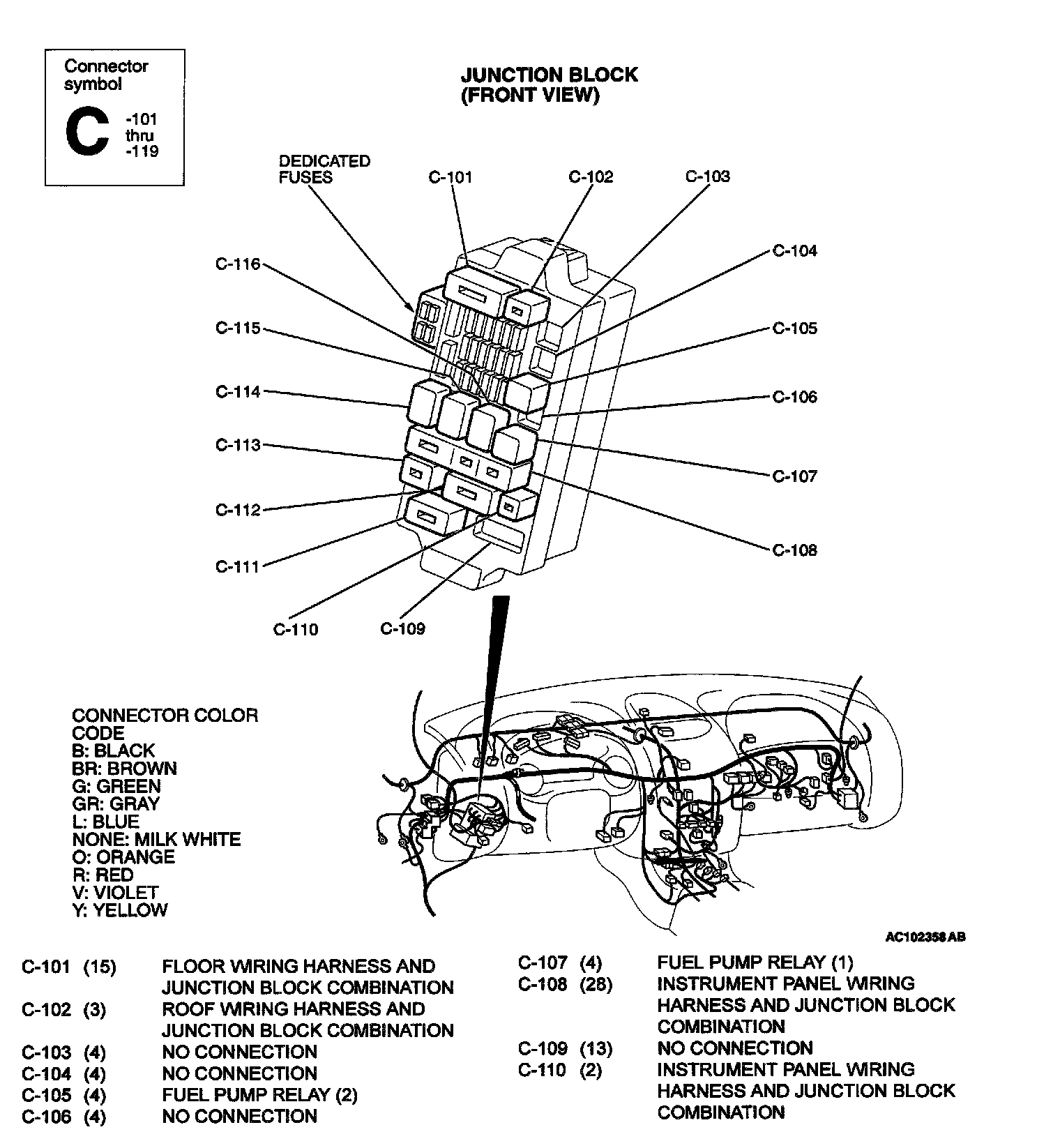

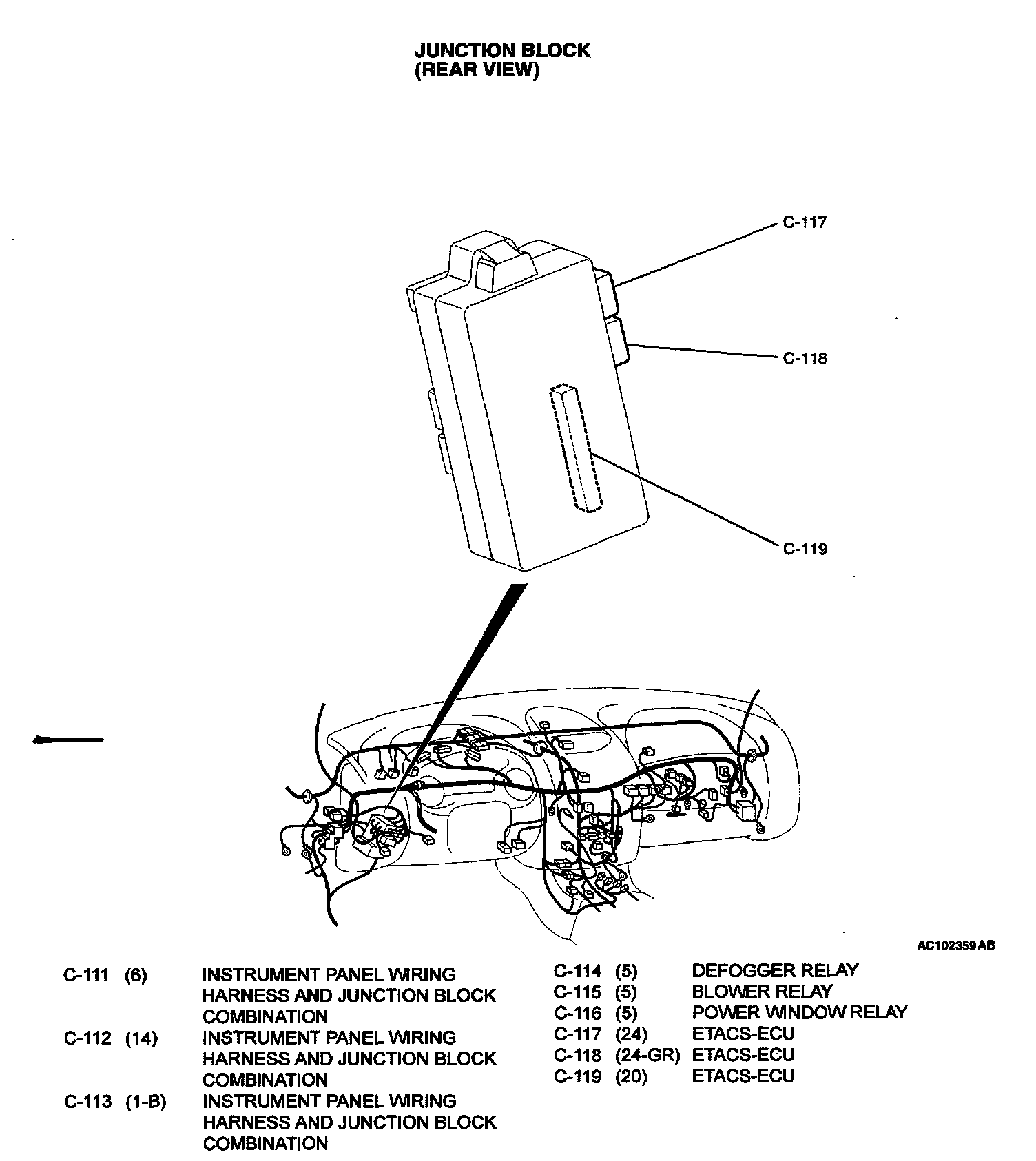

Dash Panel - C Connector [111 (6) Thru 119 (20)]:
