Suspension: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
]]A[[ DRAIN TURF MOUNTING HOOK REMOVAL ECLIPSE SPYDER





Remove the drain turf mounting hook so that the cap can be seen from the passenger compartment.

]]B[[ BRAKE CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, so that it does not fall.

]]C[[ CROSSMEMBER MOUNTING NUT REMOVAL

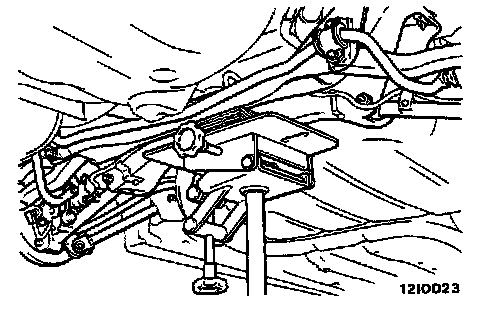

Support the crossmember with a garage jack or transmission jack to remove the crossmember mounting nut.

INSTALLATION SERVICE POINT
]]A[[ STOPPER B/STOPPER A INSTALLATION





1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
^ Check crossmember for cracks or other damage.
