Home >> Mitsubishi >> 2002 >> Eclipse Spyder GS L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control

Cruise Control

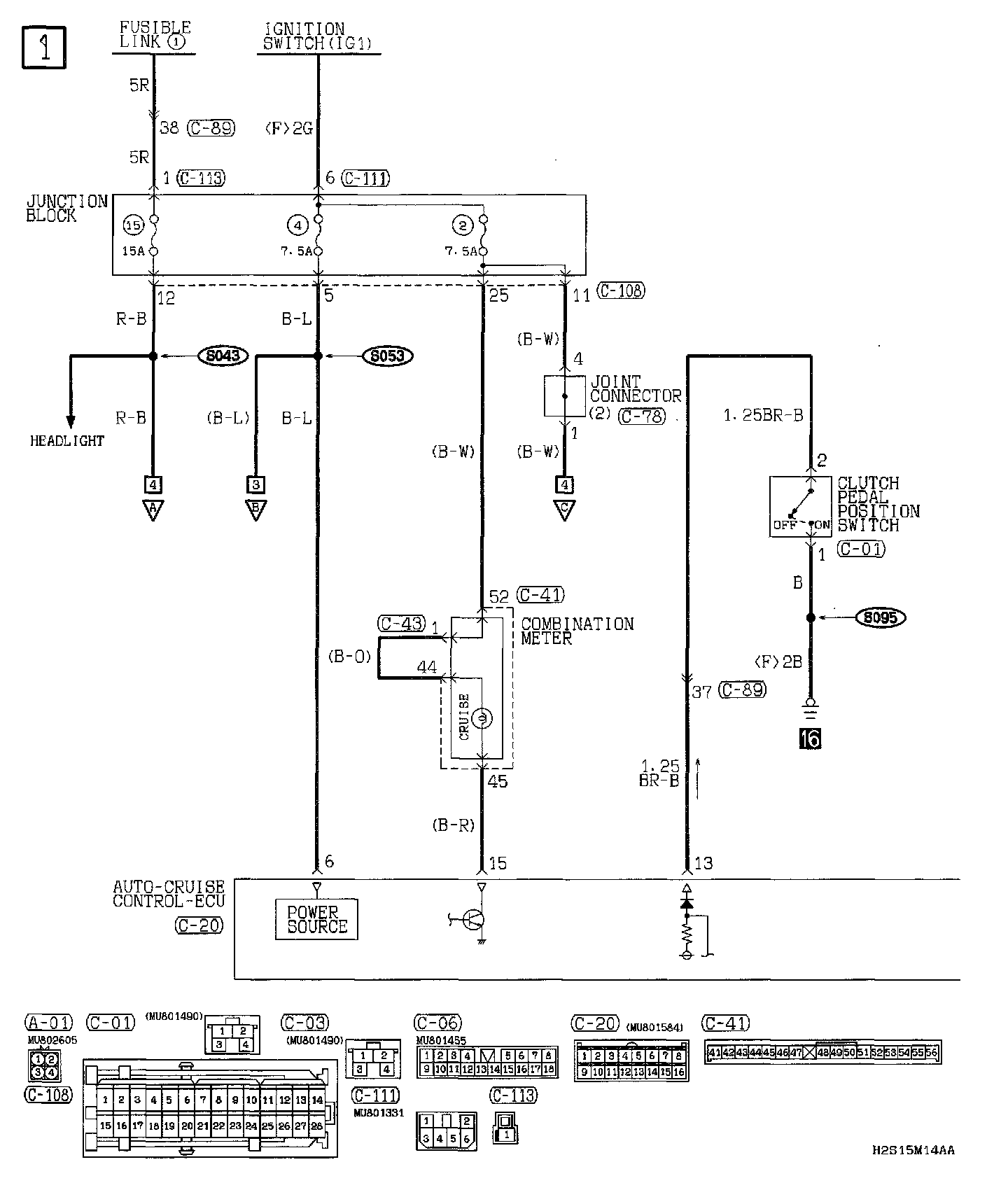

Auto-Cruise Control (2.4L Engine-M/T) Part 1:

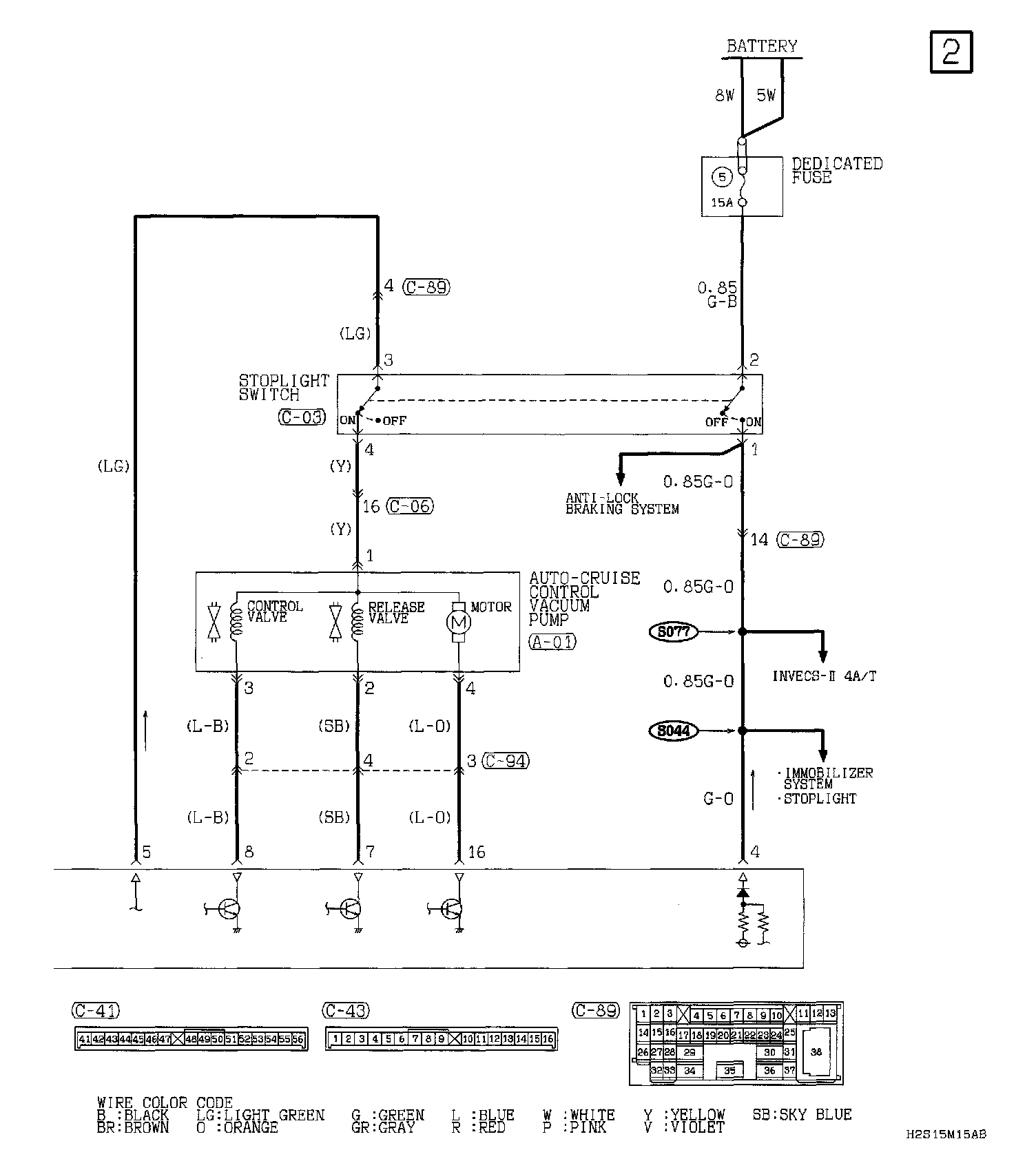

Part 2:

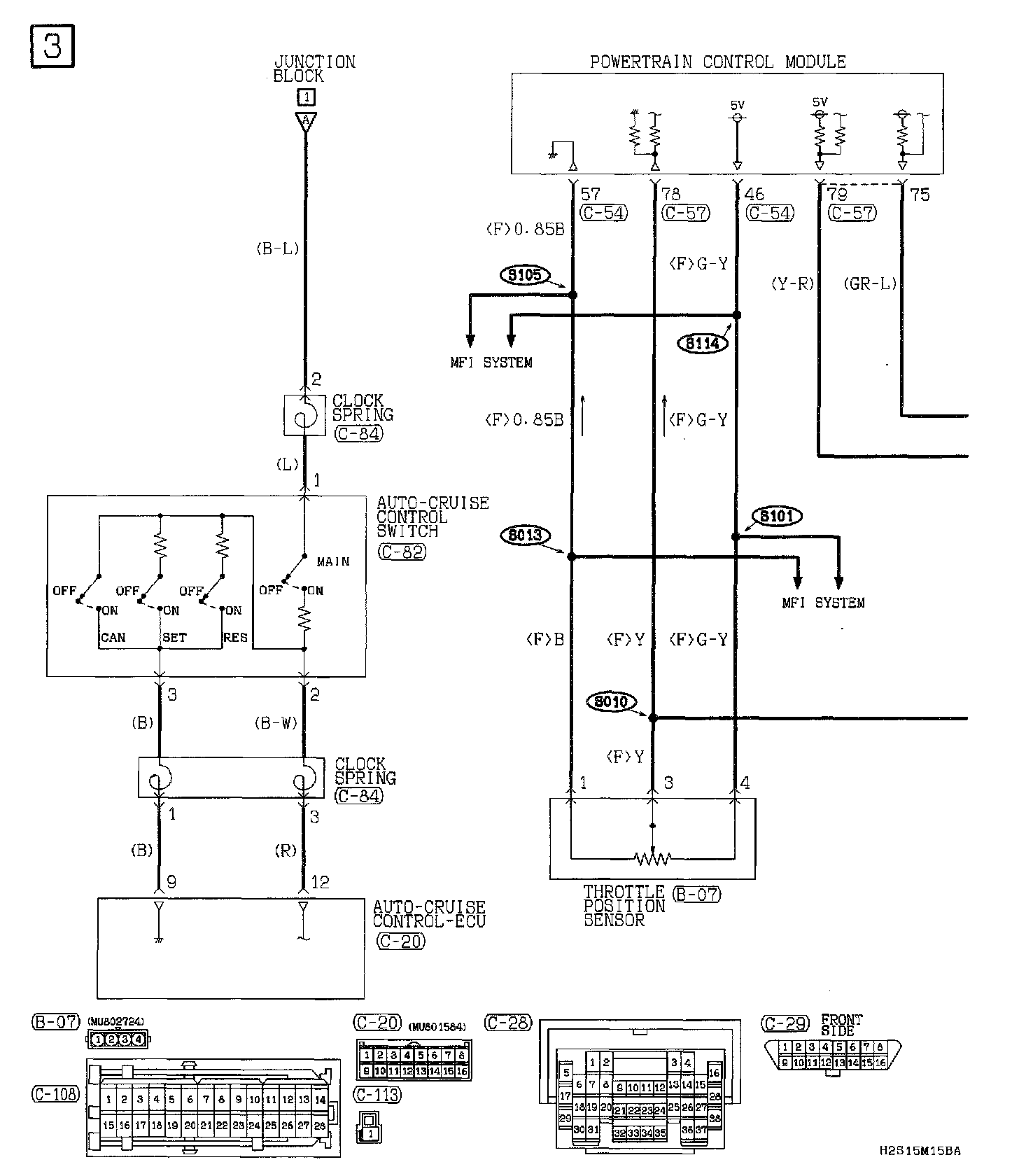

Part 3:

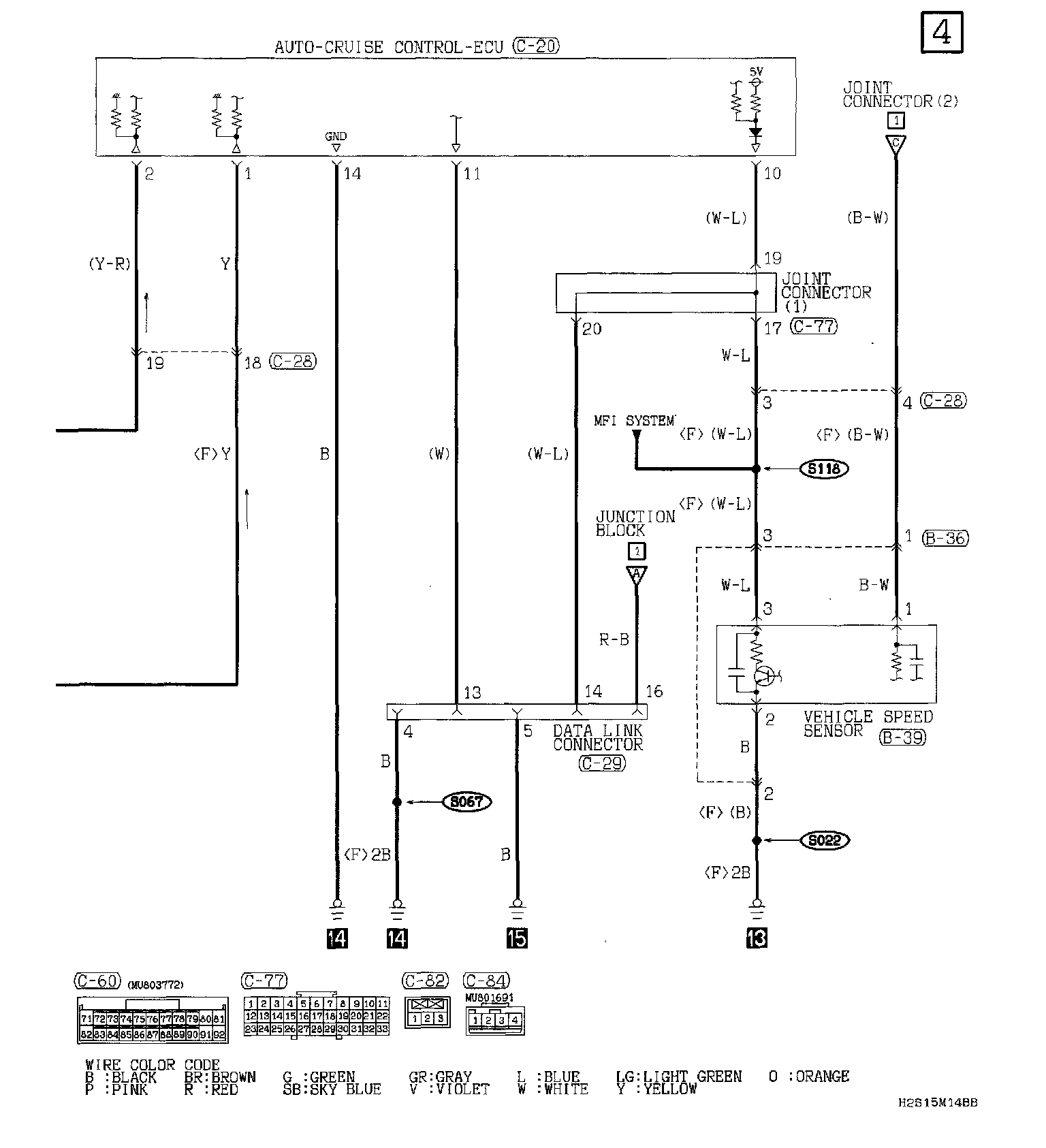

Part 4:

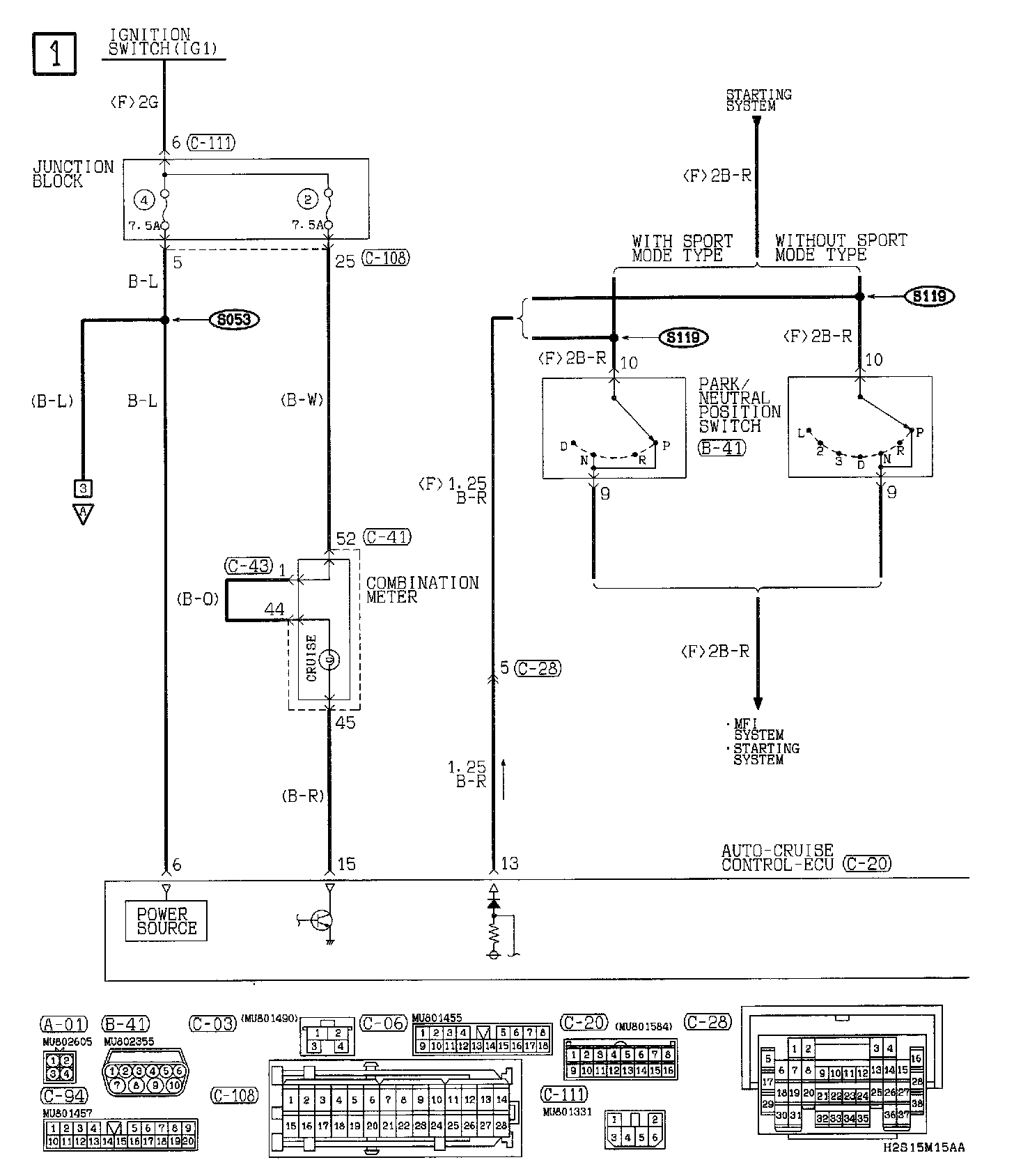

Auto-Cruise Control (2.4L Engine-A/T) Part 1:



Part 2:



Part 3:



Part 4:
