Heating and Air Conditioning

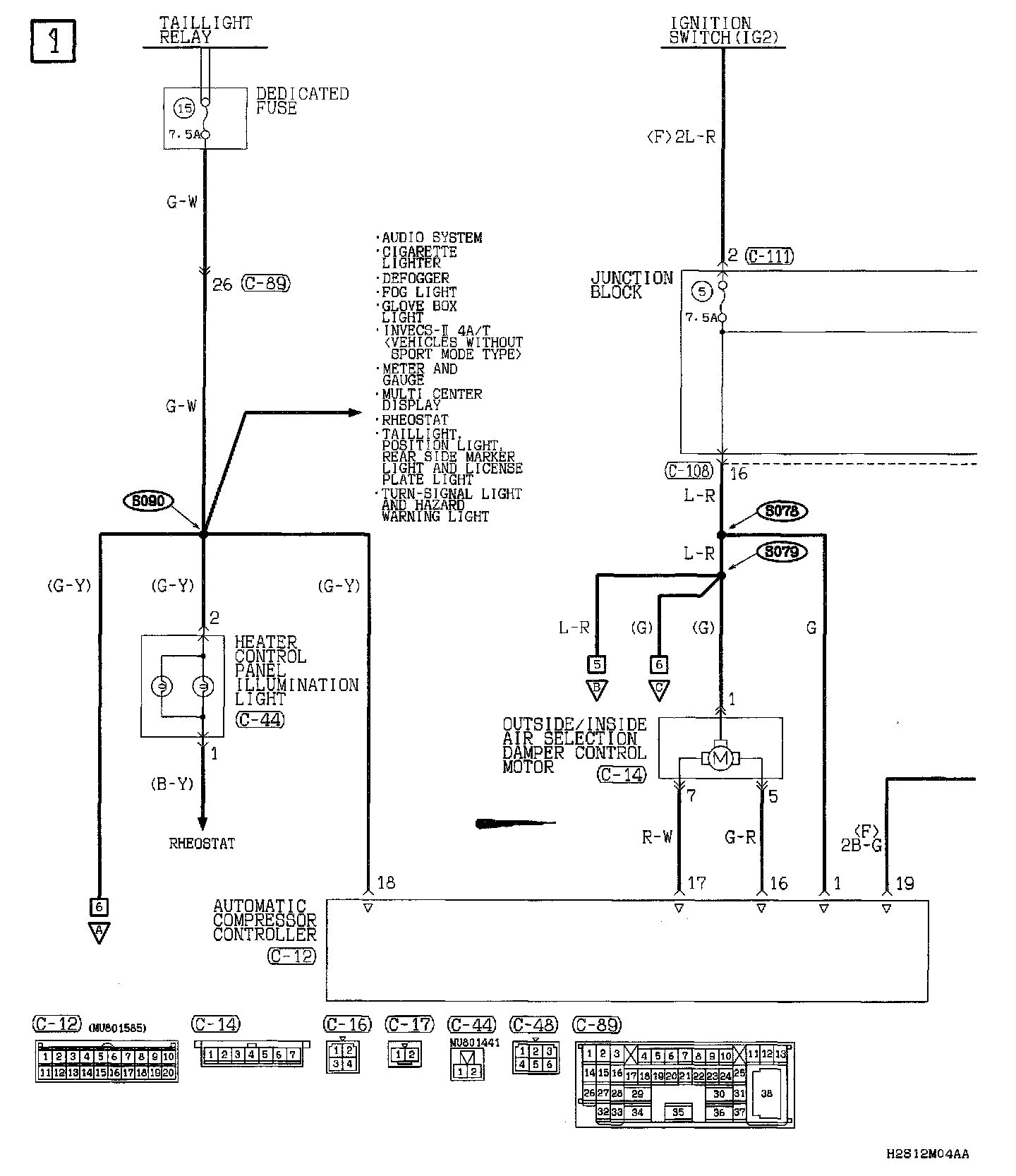

Air Conditioning System (2.4L) Part 1:

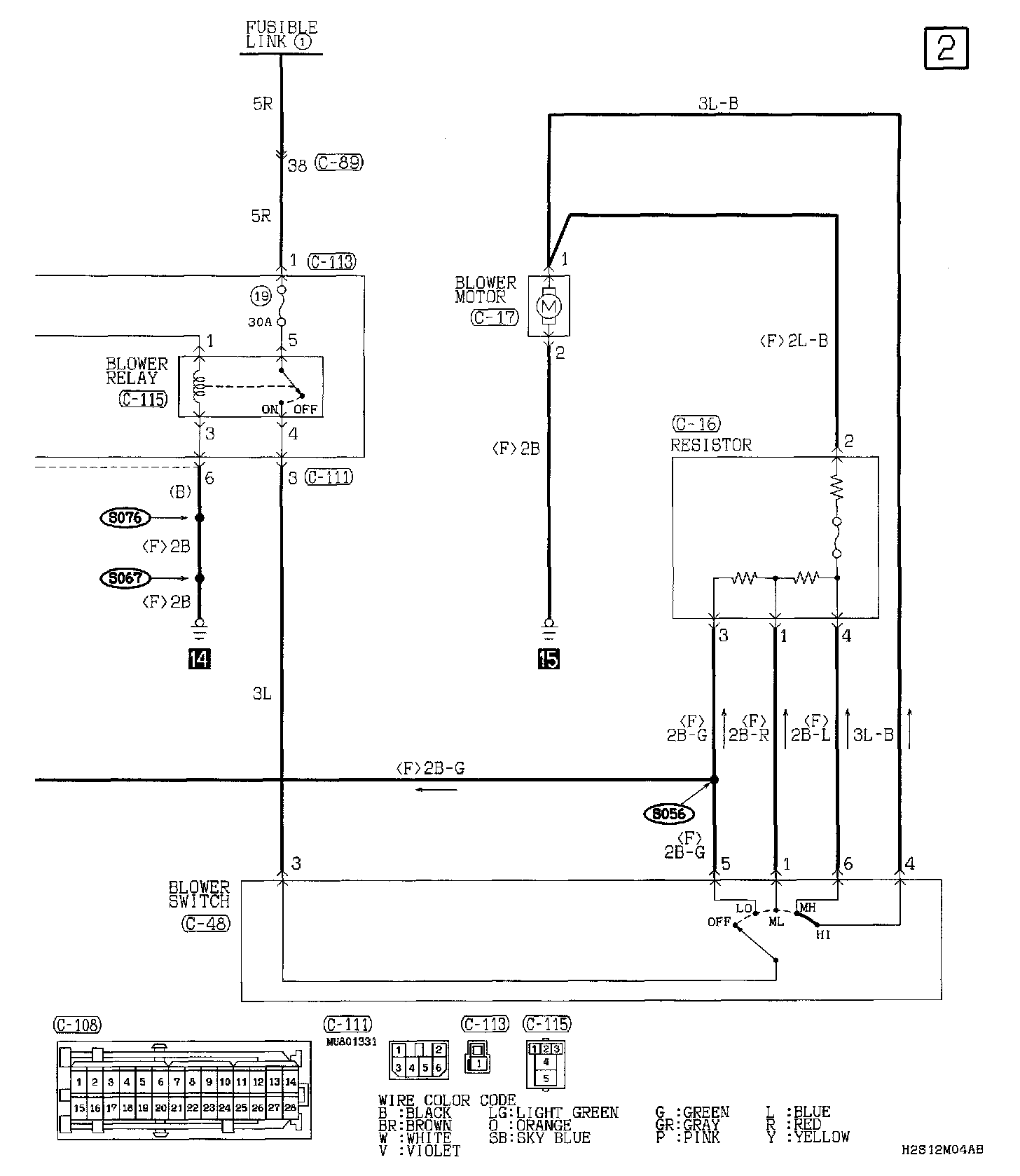

Part 2:

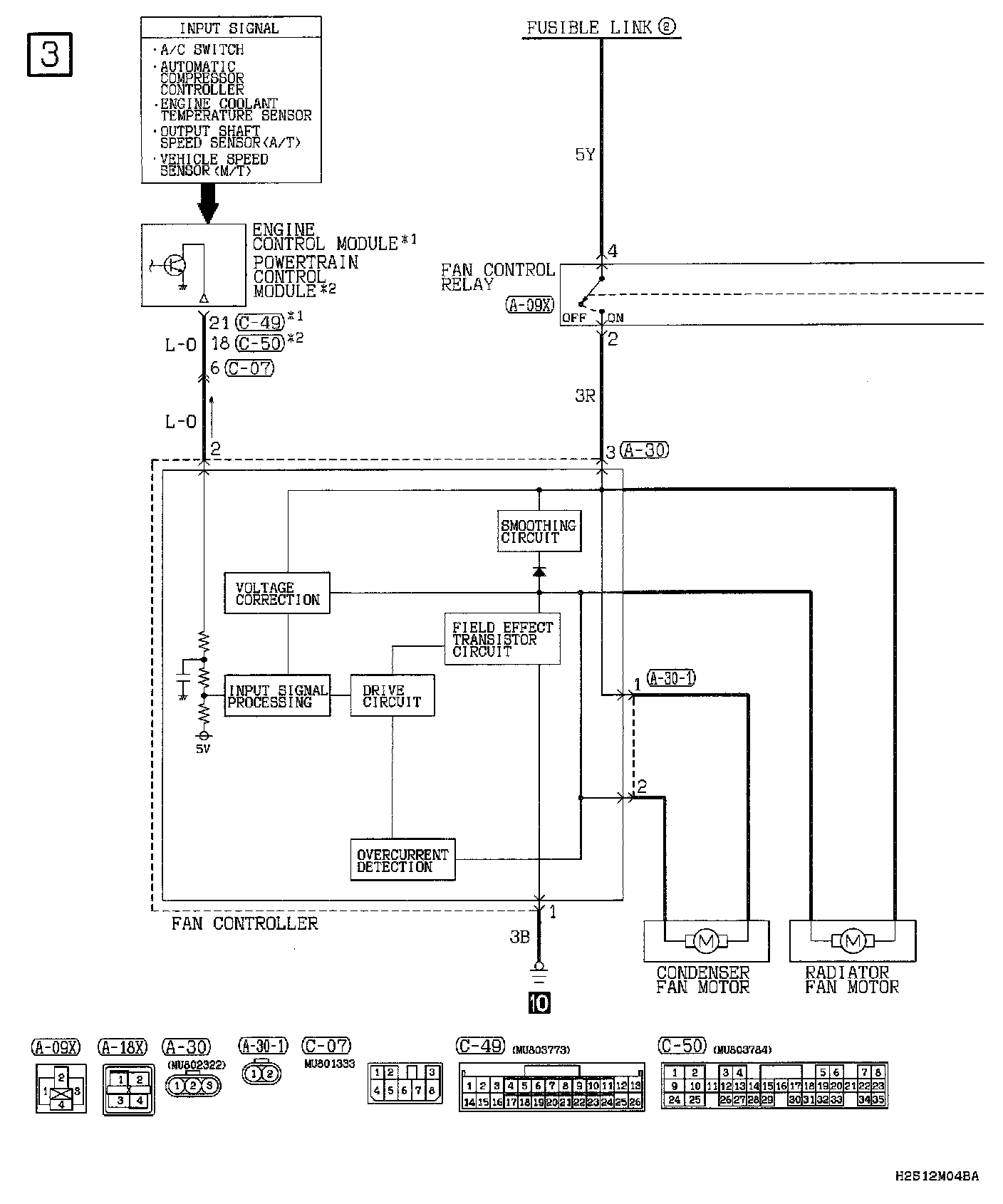

Part 3:

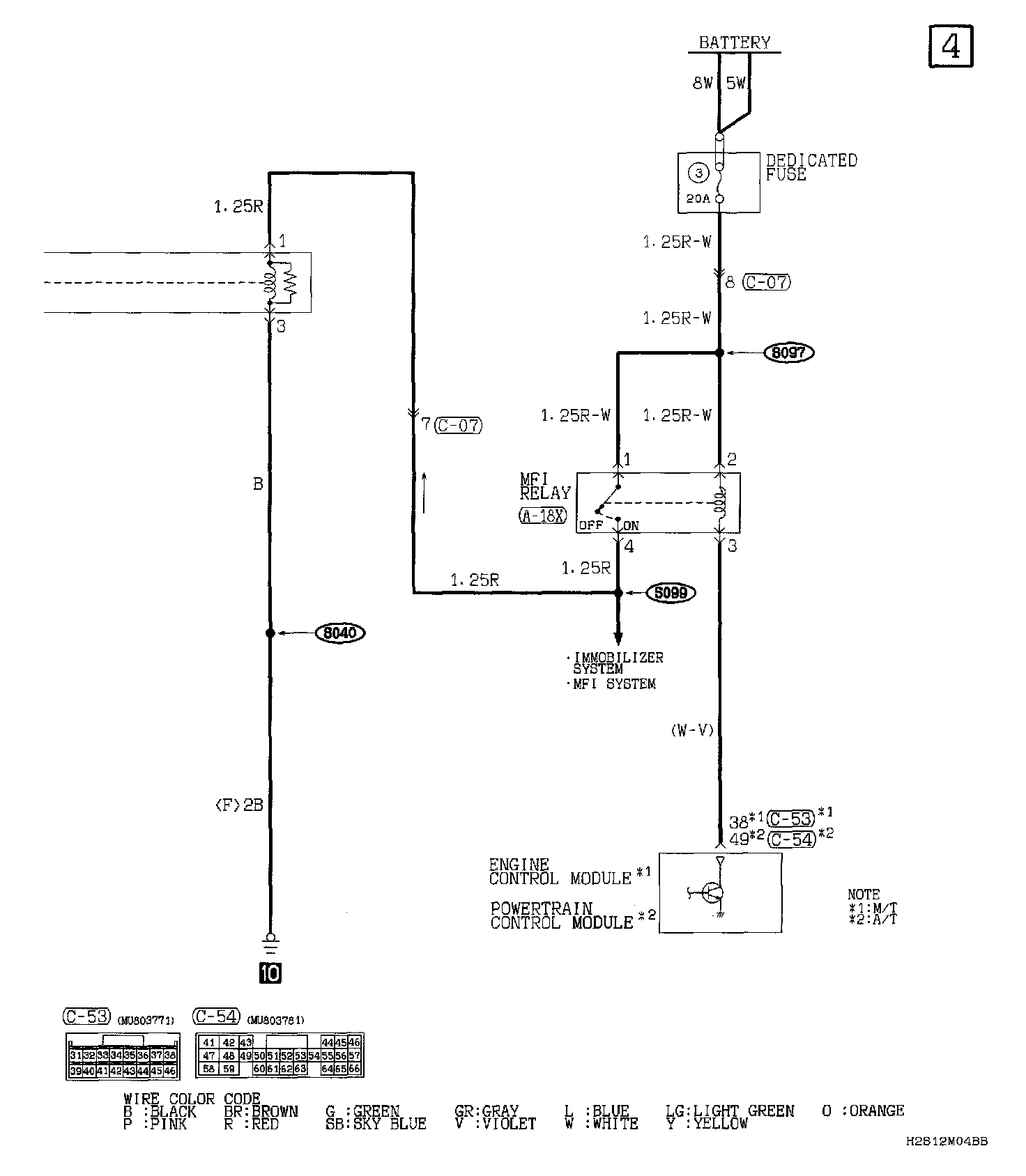

Part 4:

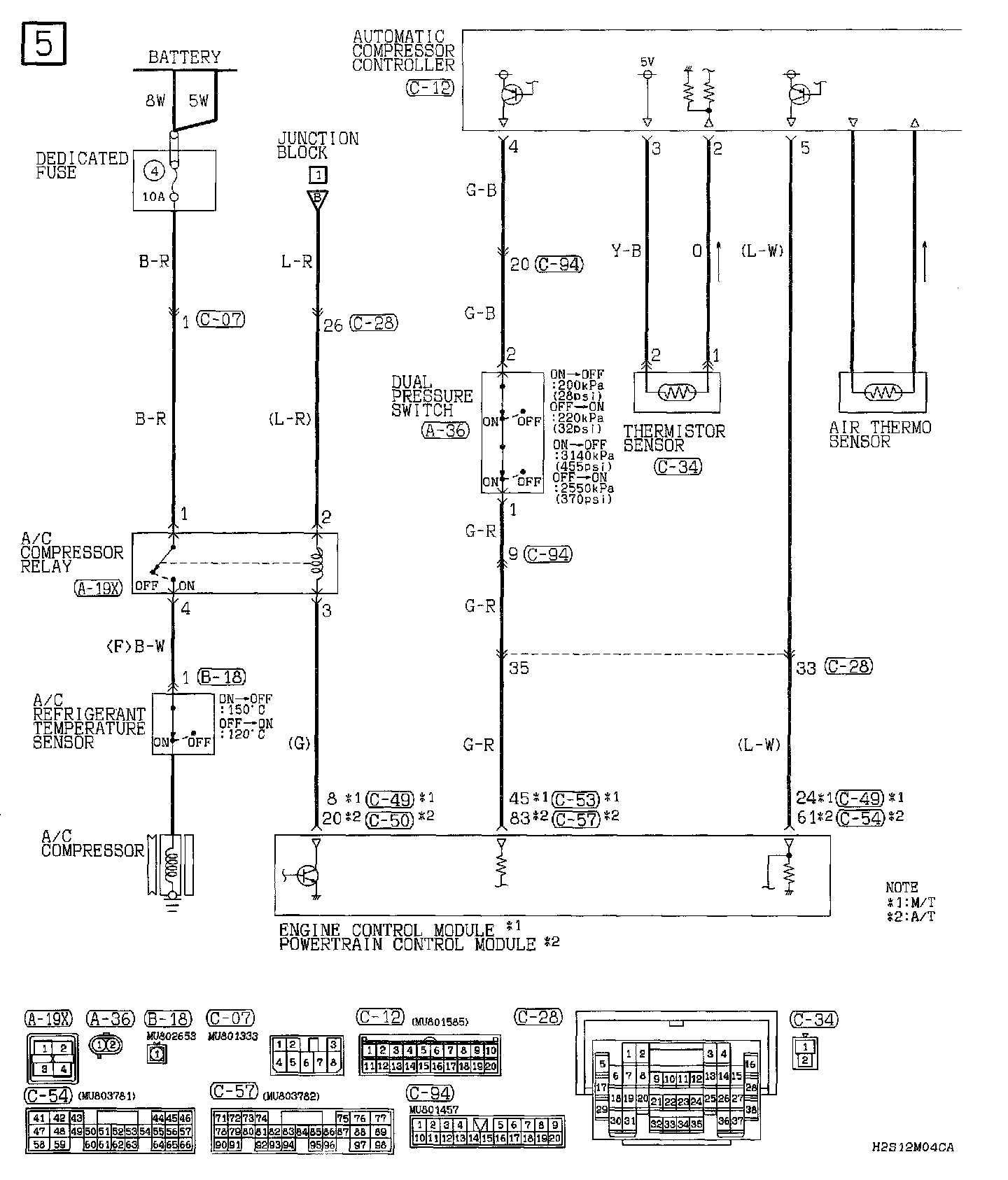

Part 5:



Heater Part 1:



Part 2:



Part 3:
