Engine and Transaxle Harness - B Connectors

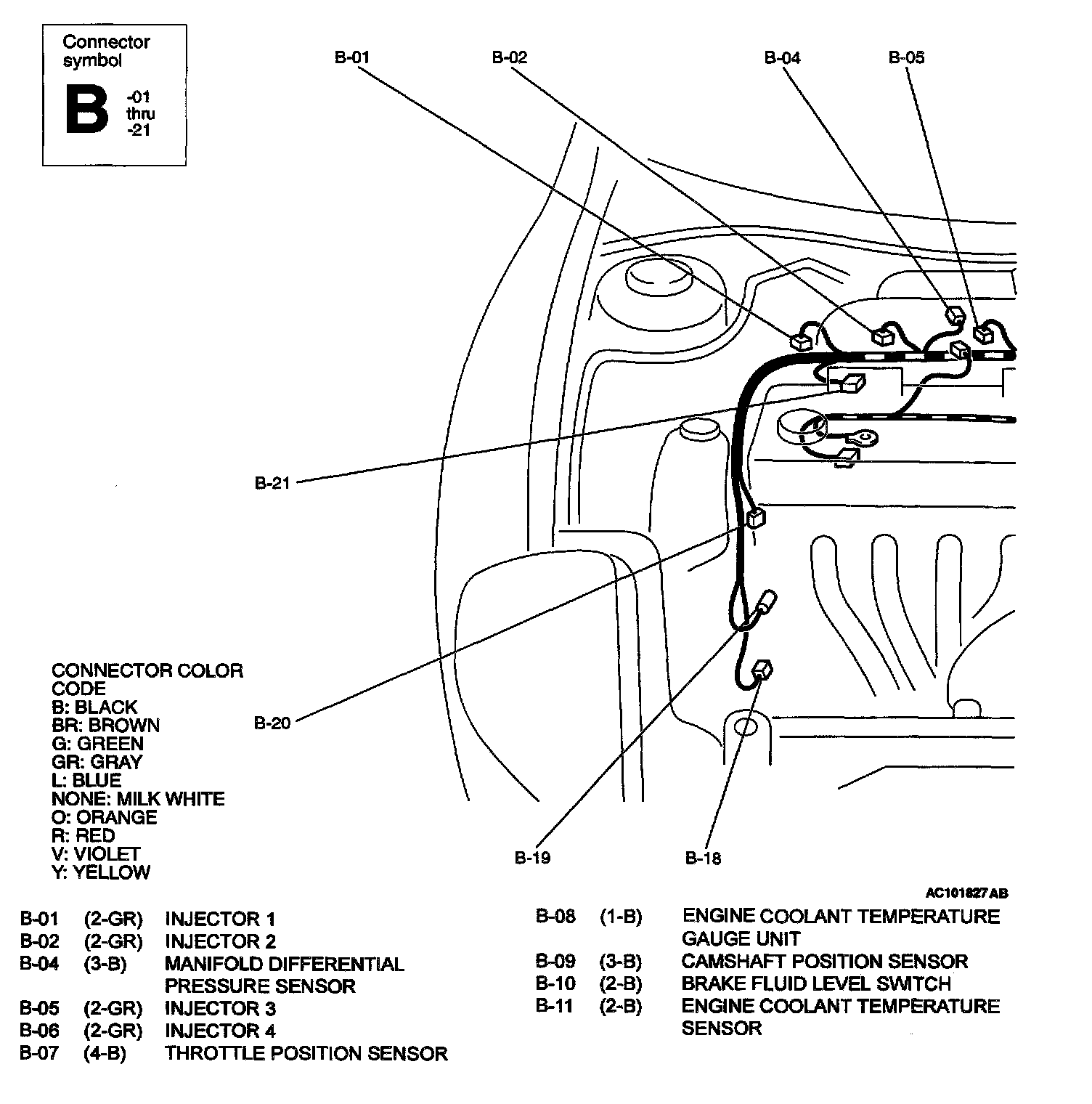

Engine/Transaxle (2.4L) - B Connector [01 (2-GR) Thru 11 (2-B)]:

Engine/Transaxle (2.4L) - B Connector [12 (4-B) Thru 21 (3-GR)]:

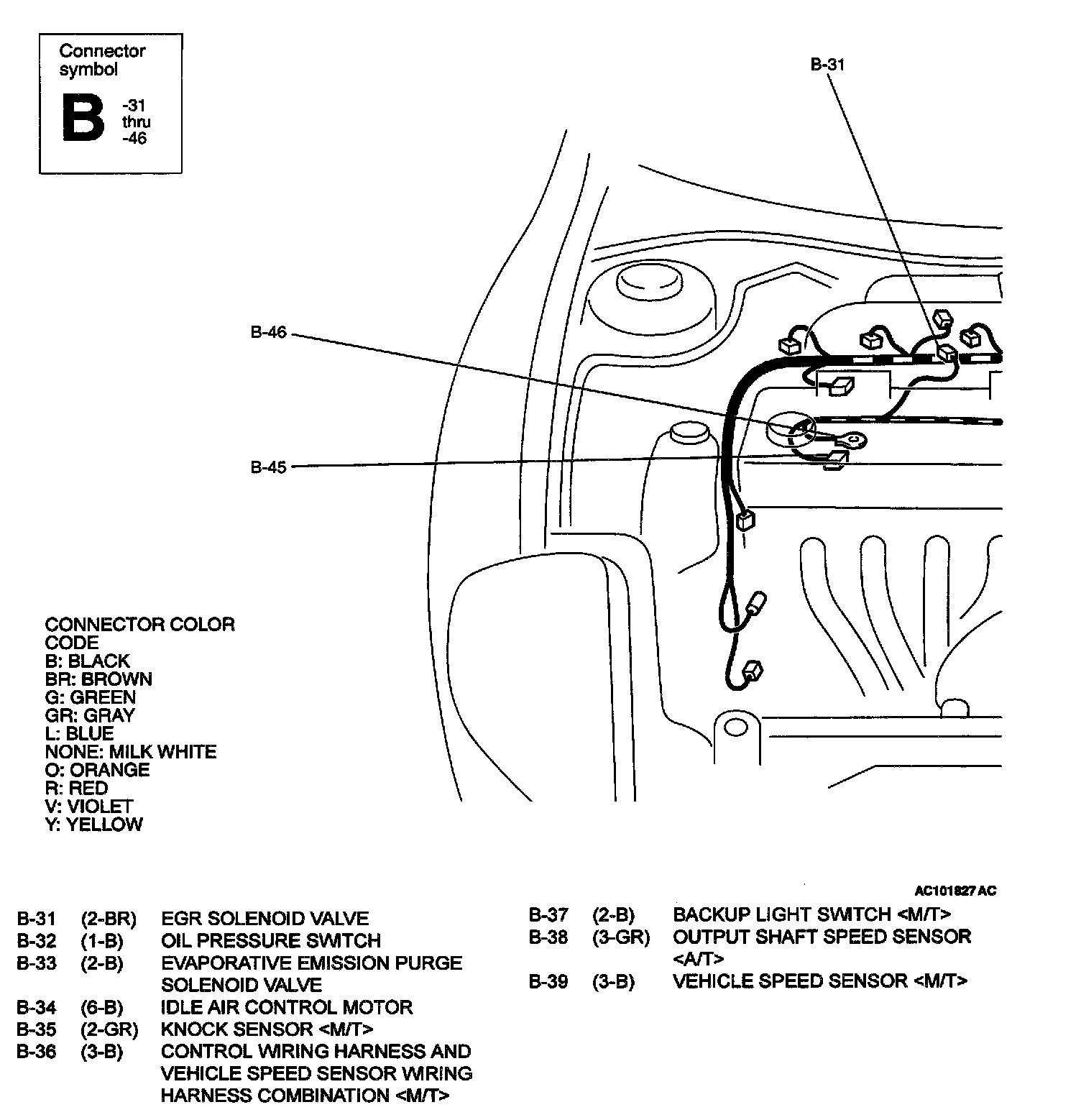

Engine/Transaxle (2.4L) - B Connector [31 (2-BR) Thru 39 (3-B)]:

Engine/Transaxle (2.4L) - B Connector [40 (10-GR) Thru 46 (1)]:
