A/T - Output Shaft Preload Spacer Selection Revision
No.: TSB-03-23-003DATE: February, 2003
MODEL: 2002 Eclipse/Eclipse Spyder
SUBJECT:
OUTPUT SHAFT PRELOAD ADJUSTMENT SPACER
SELECTION - SERVICE MANUAL
This bulletin revises and replaces TSB-02-23-002, issued April, 2002, to correct output shaft spacer selection. Revised information is indicated by "-->".
[TSB Revision TSB-03-23-003]
PURPOSE
The selection sizes of output shaft preload adjustment spacers are incorrectly printed in the affected service manual pages. This bulletin contains corrected spacer selection information.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2002 Eclipse and Eclipse Spyder
AFFECTED SERVICE MANUAL

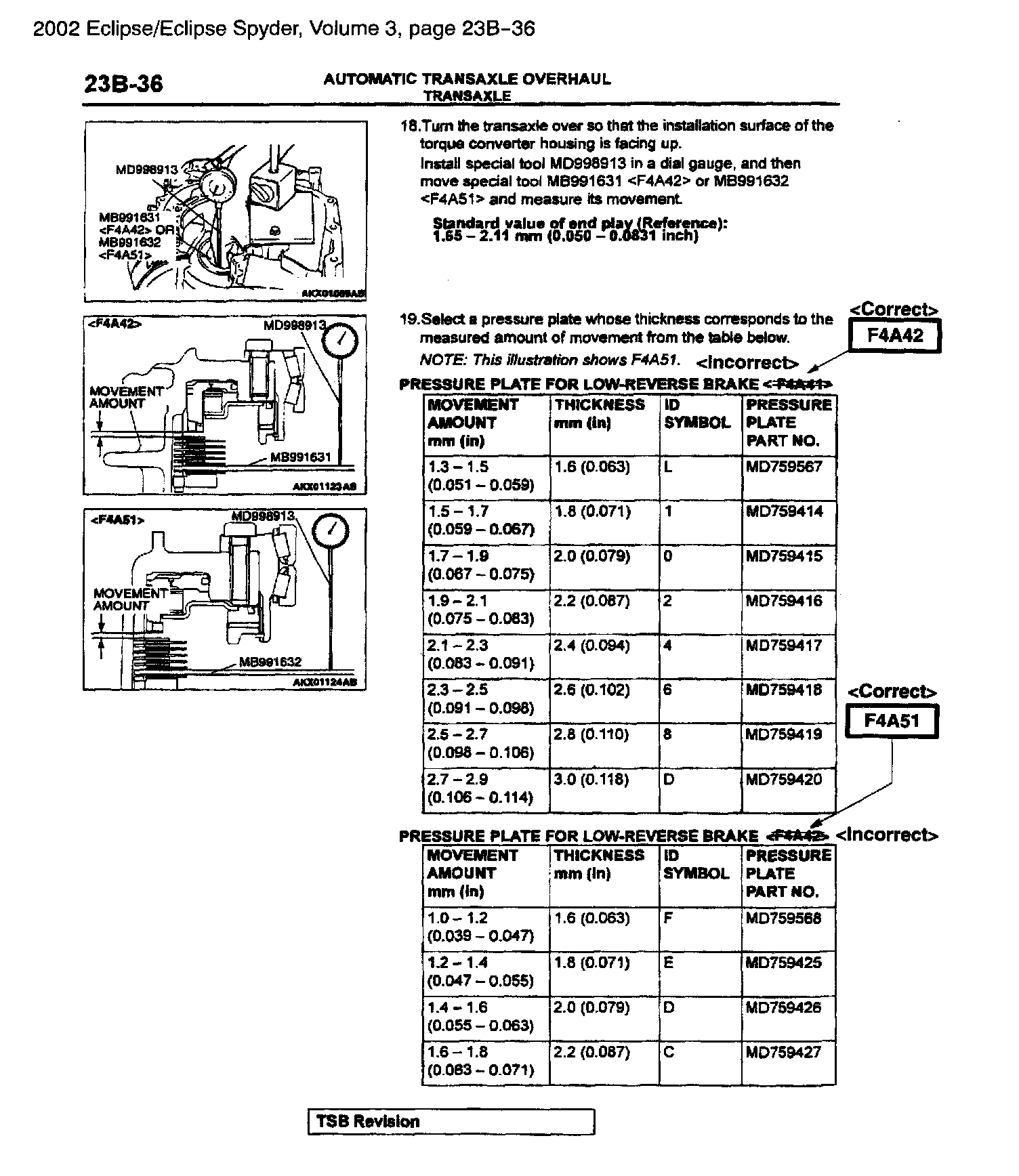

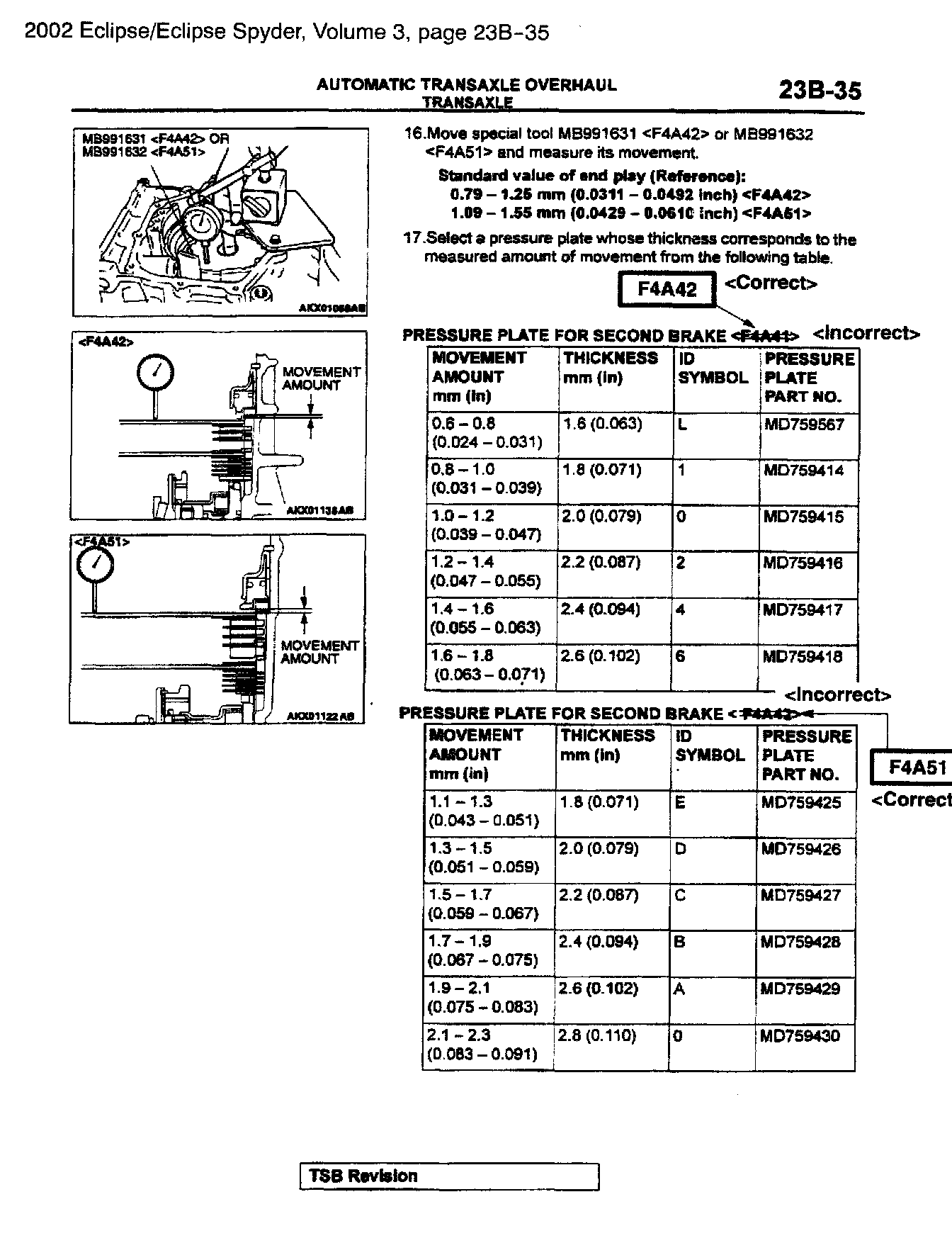

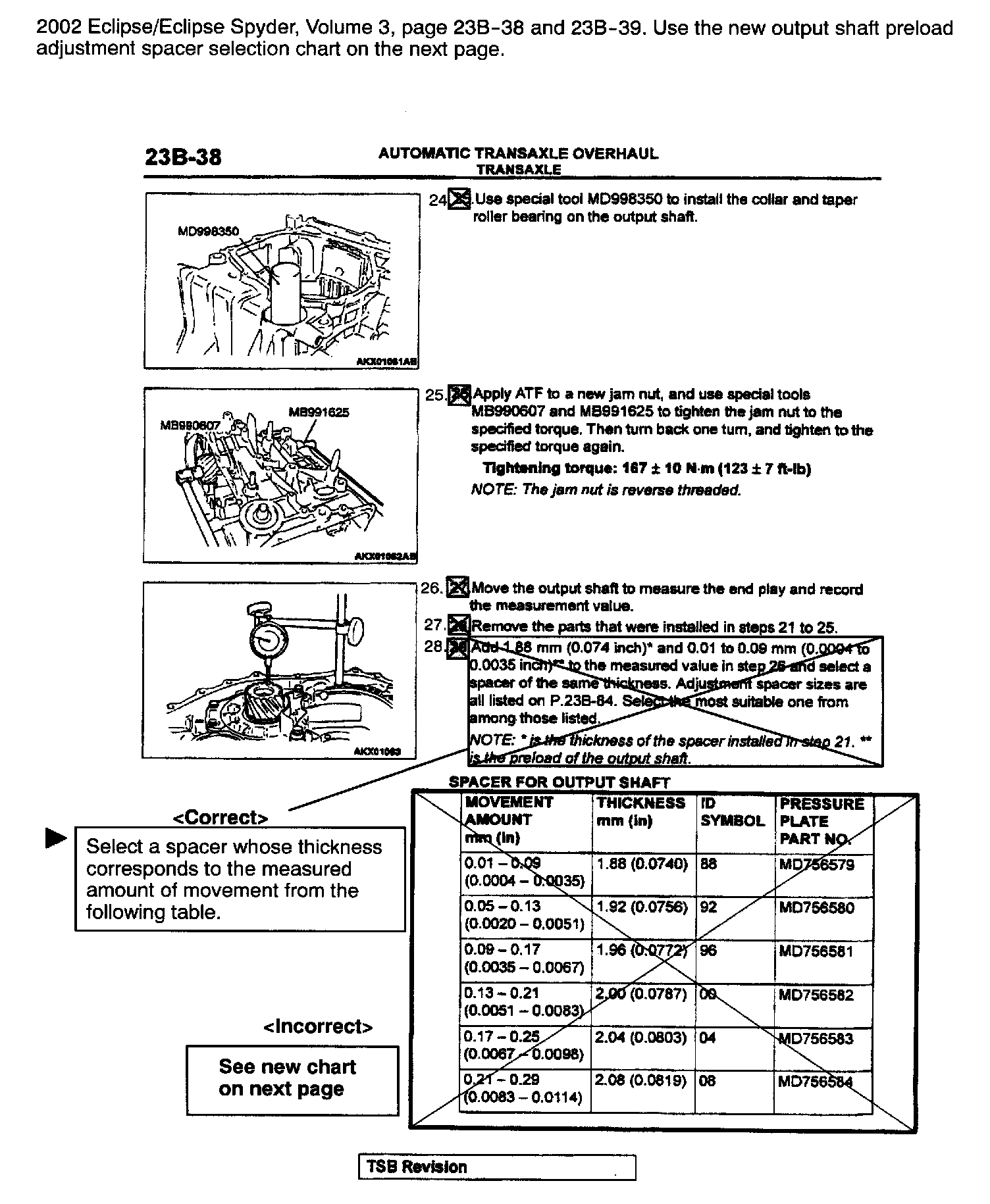

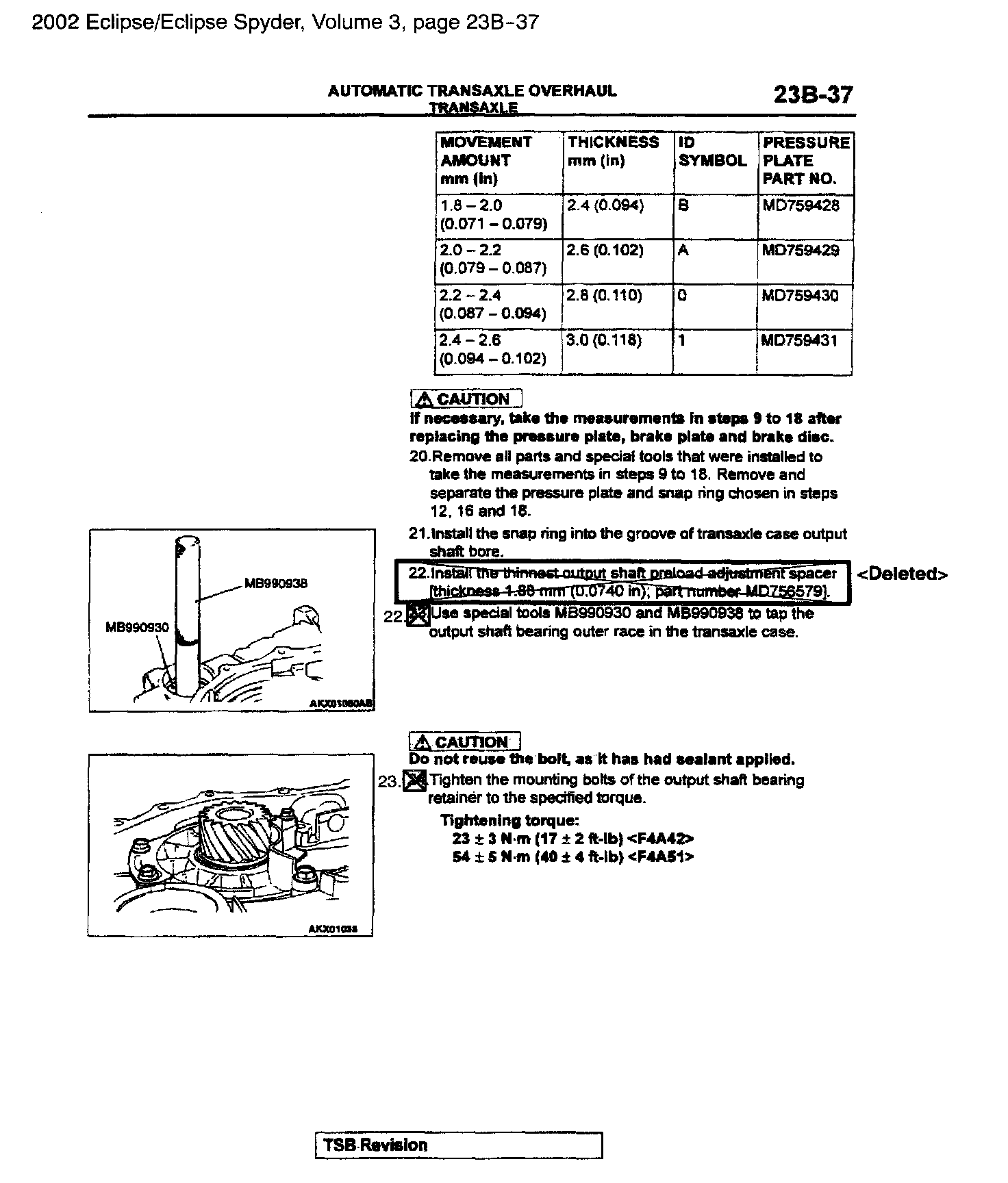

2002 Eclipse/Eclipse Spyder, Volume 3, pages 23B-35 to 23B-39
