Interior Moulding / Trim: Service and Repair

Door Trim And Waterproof Film:

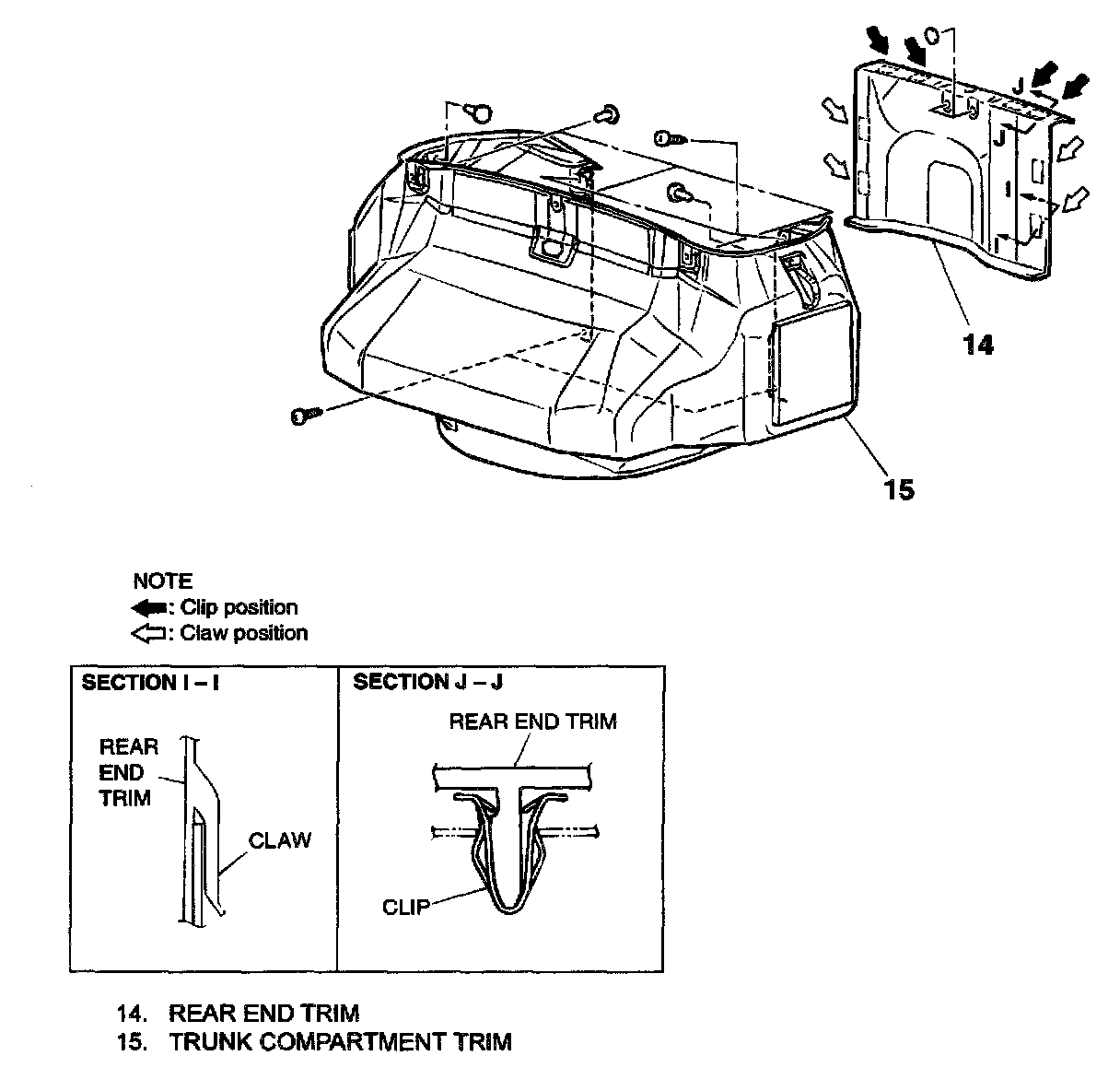

Clip And Claw Positions:

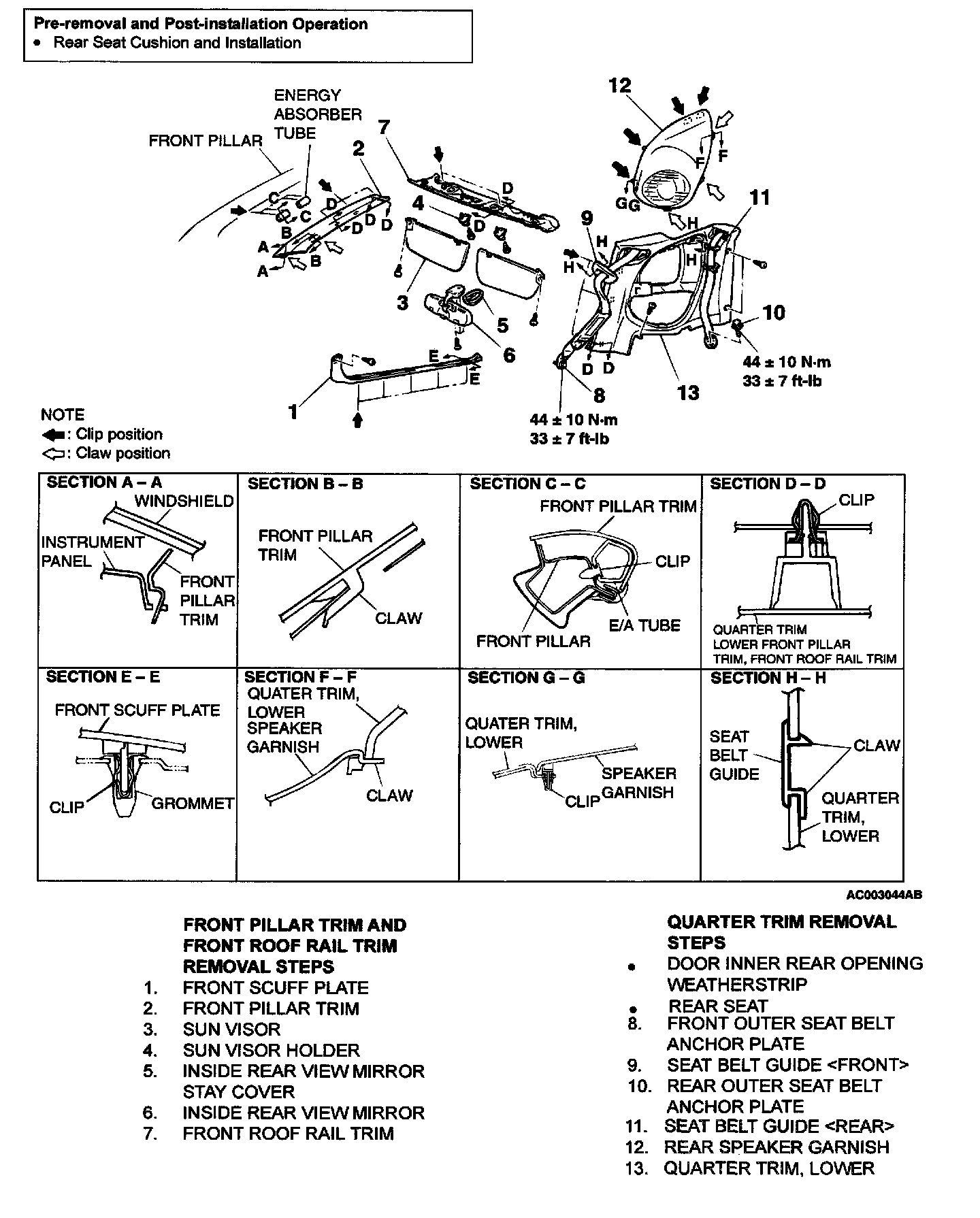

Trims Part 1 (Eclipse):



Trims Part 2 (Eclipse):



Trims Part 1 (Eclipse Spyder):



Trims Part 2 (Eclipse Spyder):
