D Connector - Floor and Windshield Aperture Harness
D Connector - Floor and Windshield Aperture Harness

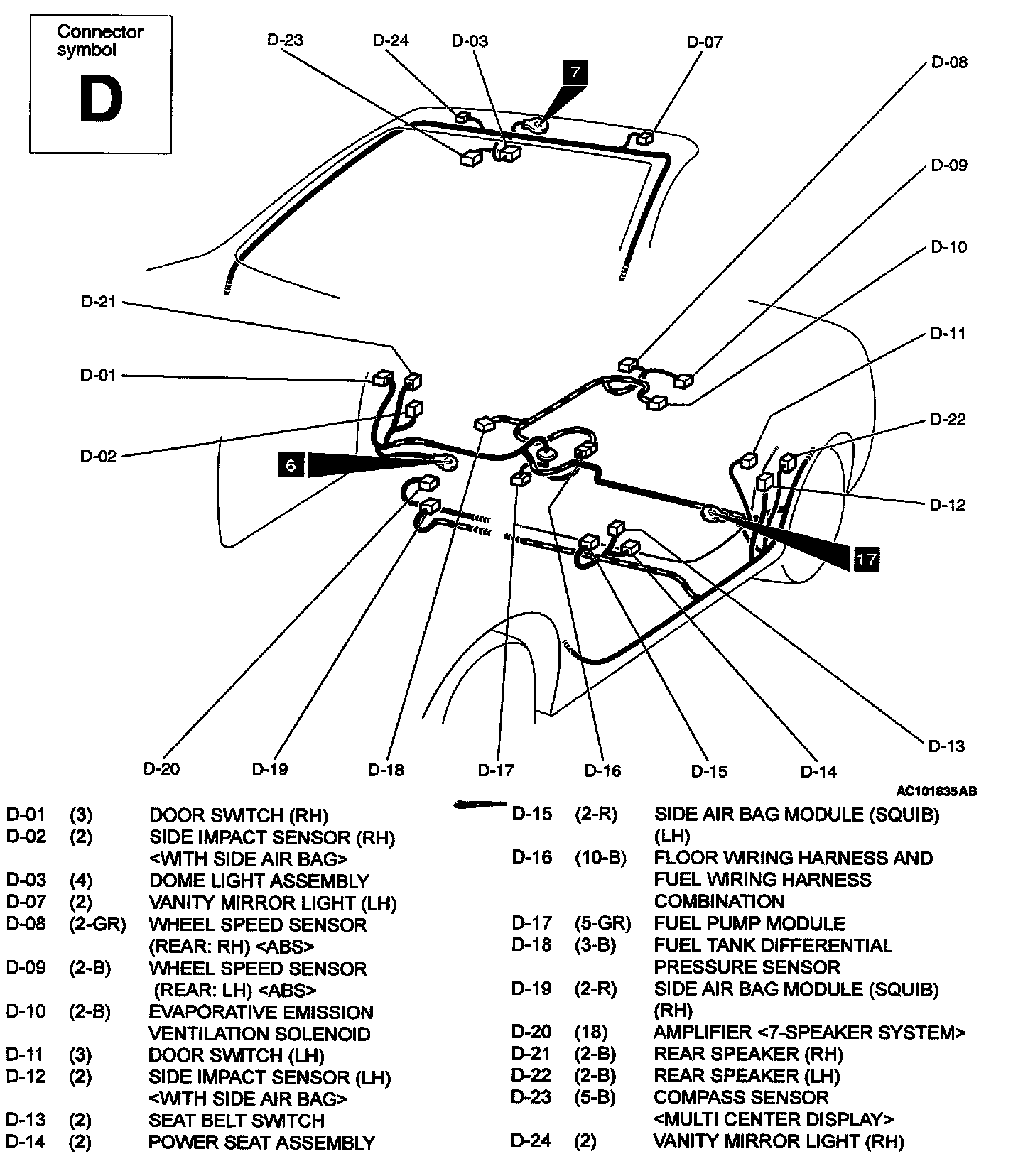

Floor & W/S Aperture (Eclipse Spyder) - D Connector [01 (3) Thru 24 (2)]:
