Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Eclipse Spyder GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
F Connectors - Luggage Compartment Harness
F Connectors - Luggage Compartment Harness

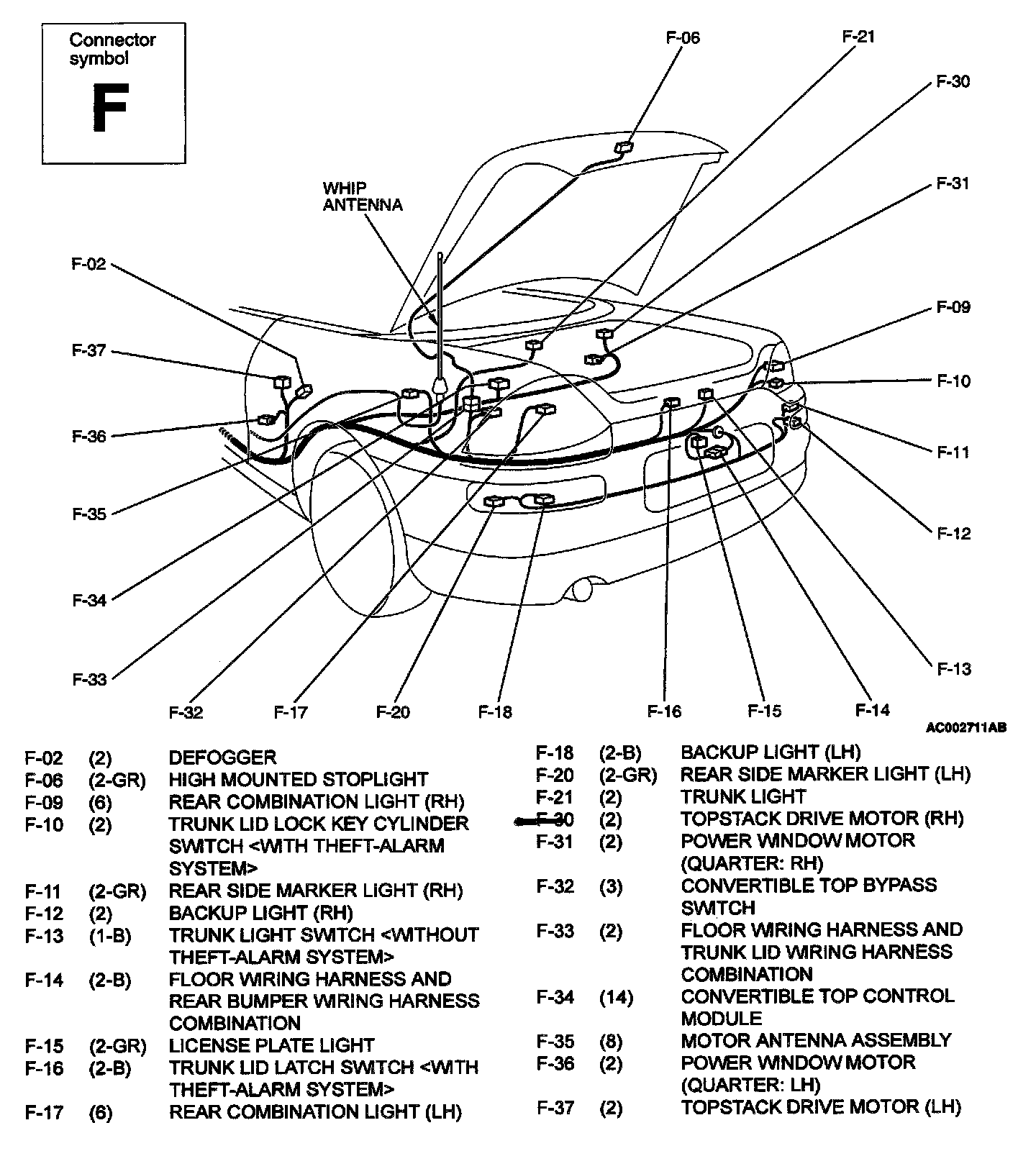

Luggage Compartment <Eclipse Spyder> - F Connector [02 (2) Thru 37 (2)]:
