Air Bag Systems

Schematic:

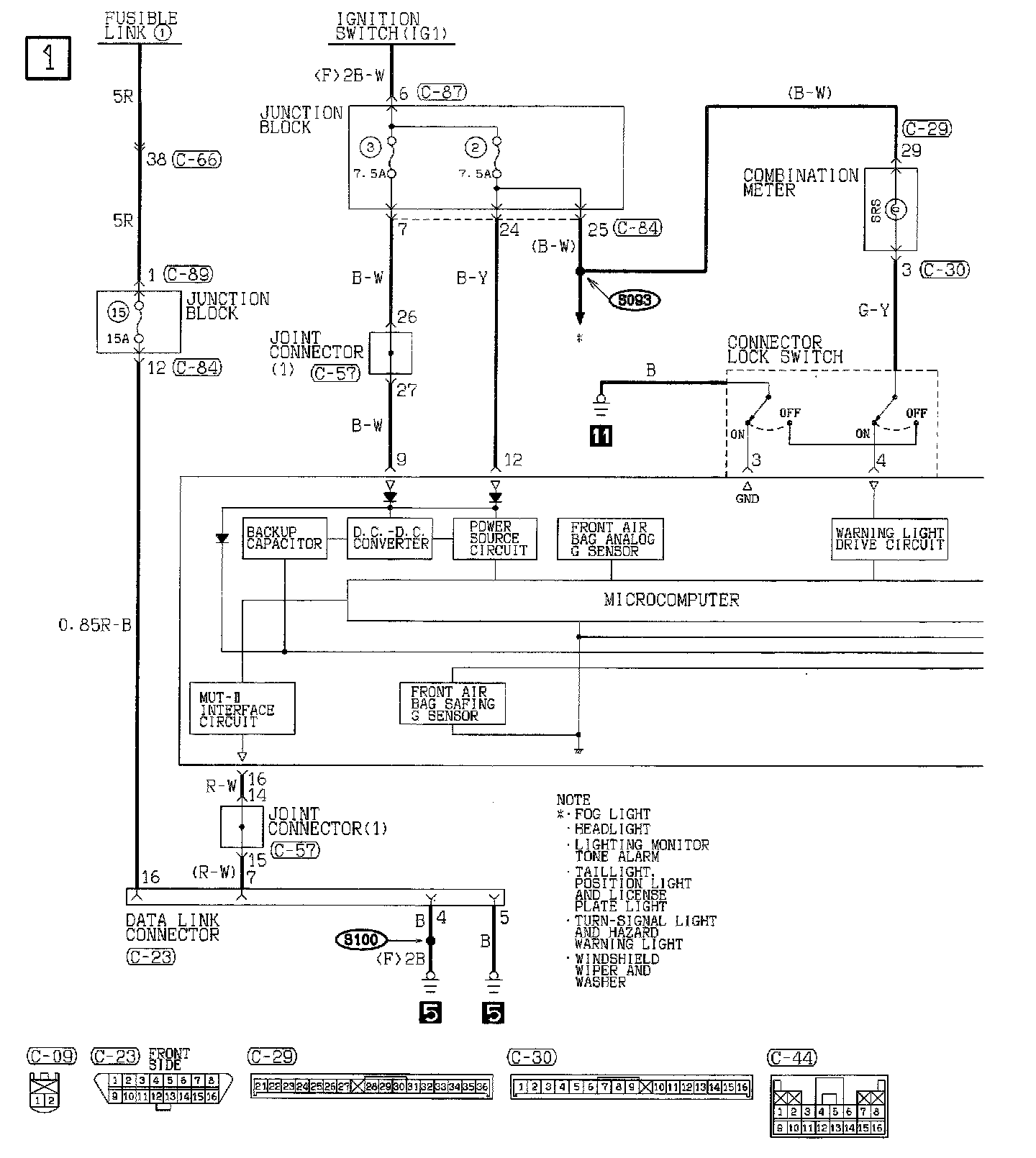

SRS (Without Side Air Bag) Part 1:

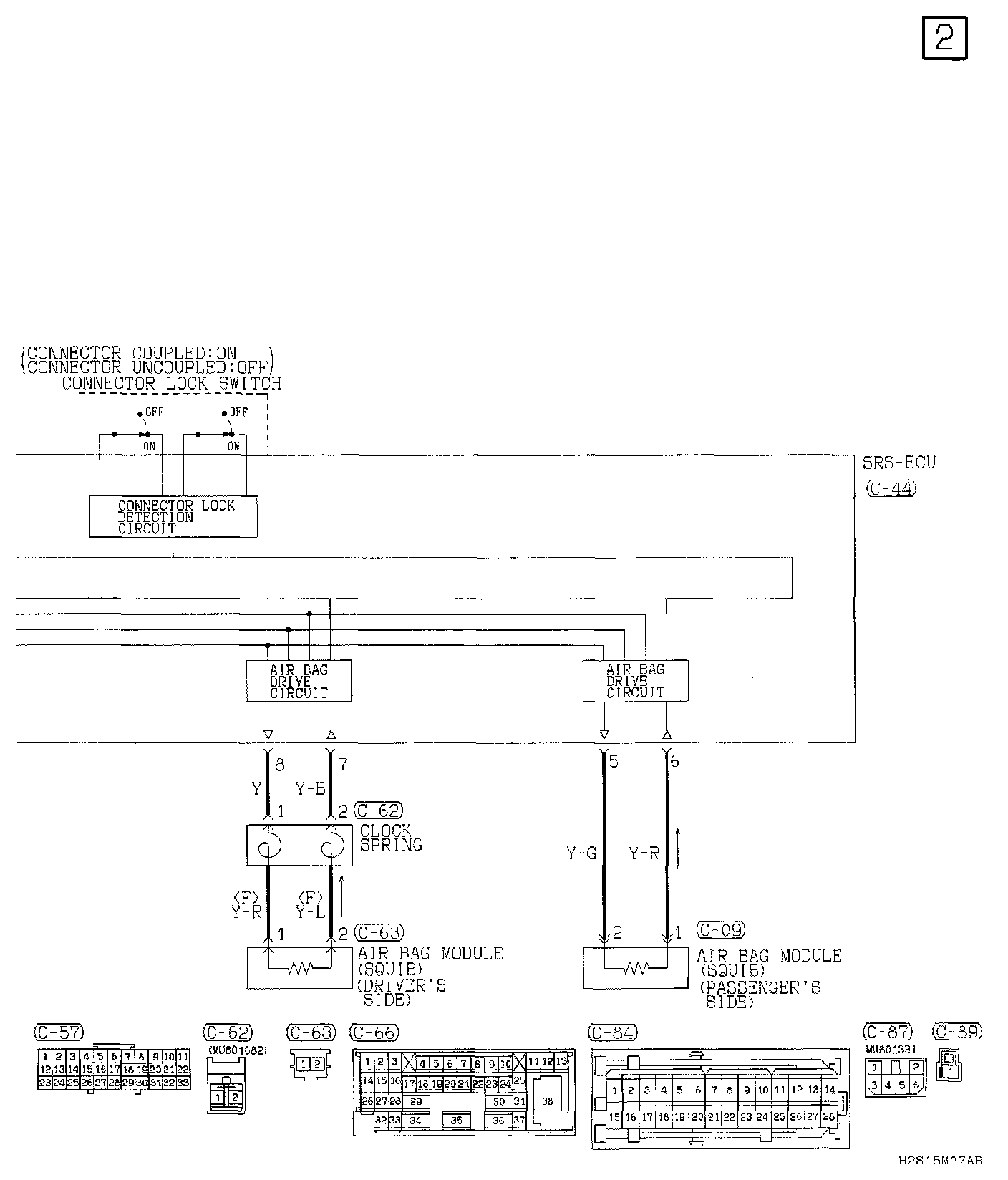

Part 2:



SRS (With Side Air Bag) Part 1:

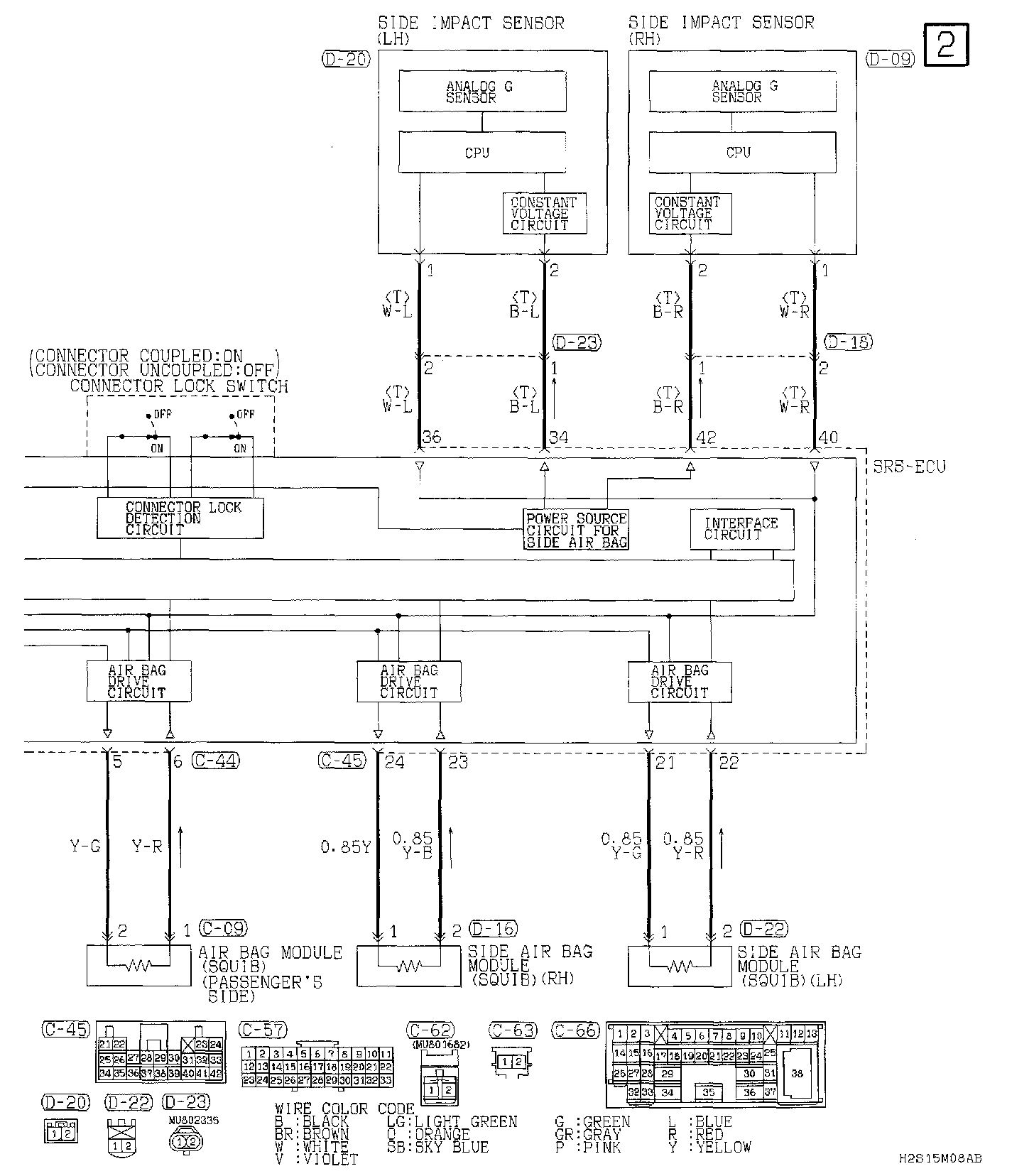

Part 2:
