Antilock Brakes / Traction Control Systems

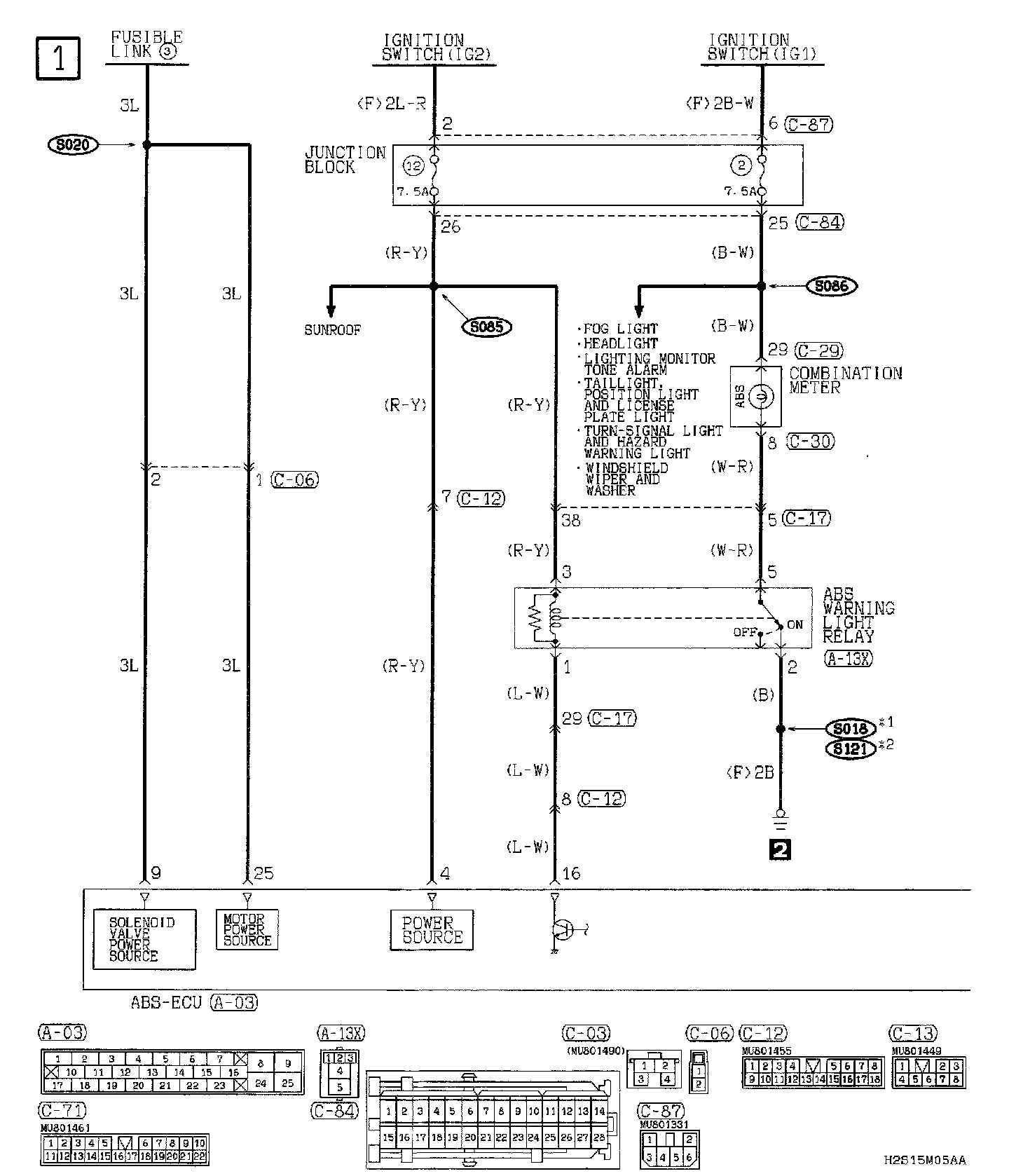

Anti-Lock Braking System (Without TCL) Part 1:



Part 2:



Part 3:



Part 4:

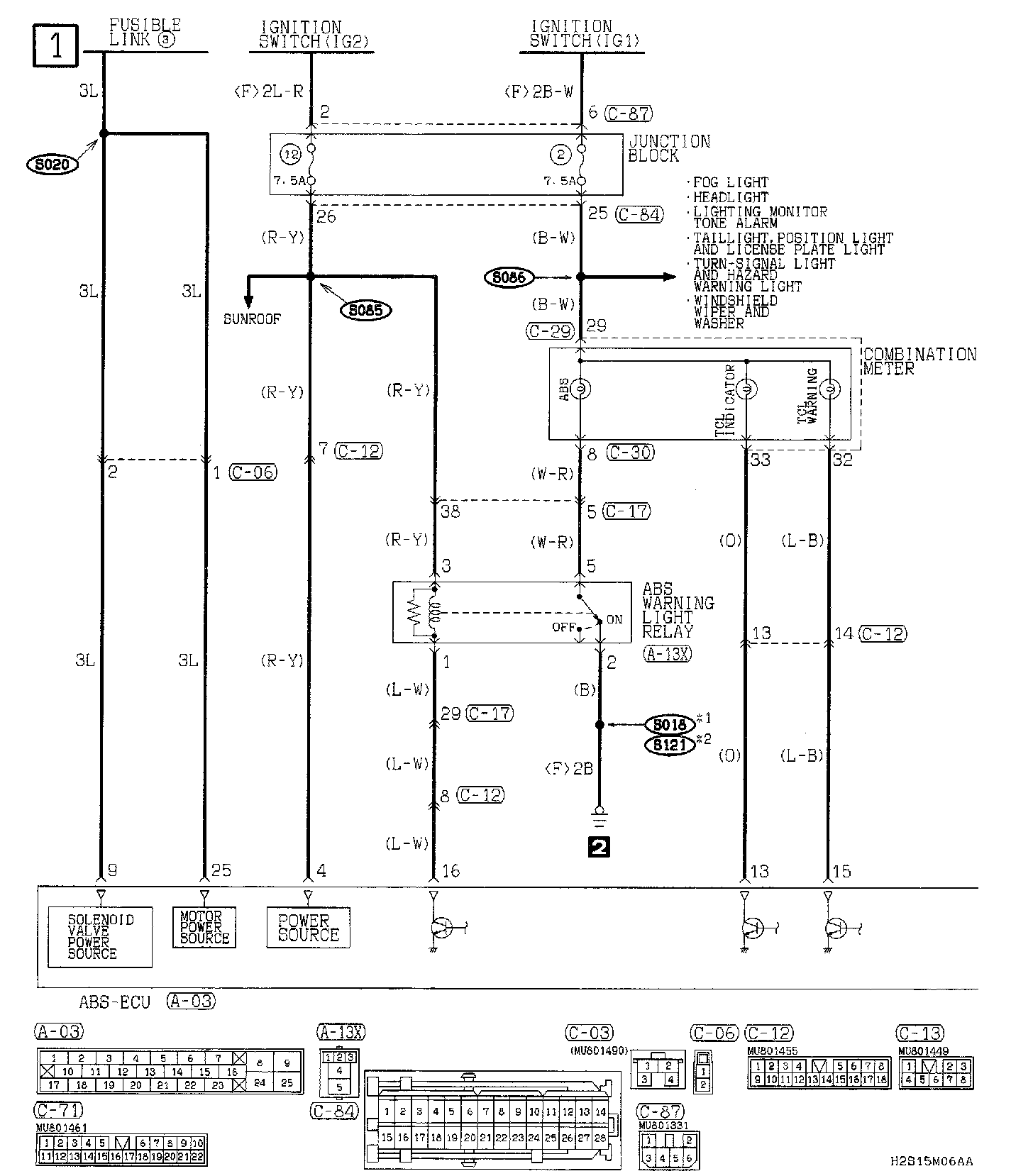

Anti-Lock Braking System (With TCL) Part 1:



Part 2:



Part 3:



Part 4:
