Compressor Speed Sensor: Testing and Inspection

REVOLUTION PICK-UP SENSOR CHECK

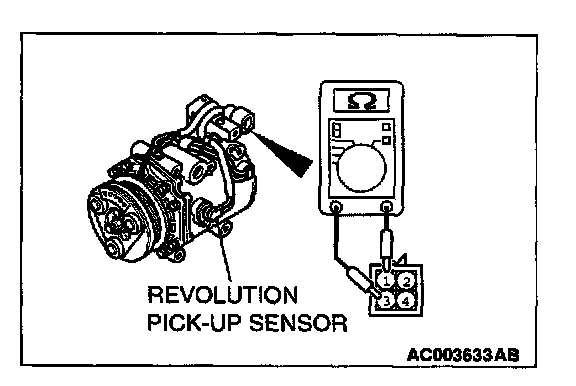

Measure the resistance between terminals 1 and 3. Check that the measured value is at the standard value.

Standard value: 405 ± 35 ohm when the ambient temperature is 20°C (68°F)
